Eaton CT-SP-6-1000-5A current transformer - ANSI/IEEE C12.20
Part Number: CT-SP-6-1000-5A
Quick Summary

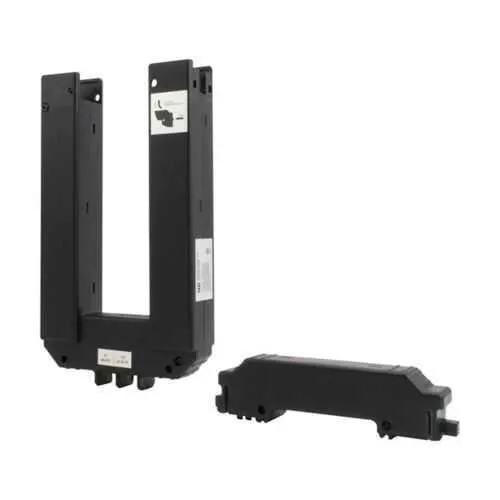

Eaton CT-SP-6-1000-5A current transformer is a split-core sensor designed to monitor 1000 A loads in panels, switchgear, and metering systems. Engineers often struggle with retrofit sensors that require full circuit downtime; this unit offers quick clamp-on installation with minimal service interruption. It carries ANSI/IEEE C12.20 certification and RoHS compliance, delivering 0.50% accuracy with a 5 A secondary and 600 V input rating for reliable metering and protection. Designed for energy management and protection schemes, it supports precise current measurement, scalable integration with metering hardware, and straightforward retrofit in existing installations to reduce downtime and lifecycle costs.
Product Information
Extended Description
CT-SP-6-1000-5A Eaton: Split-core Current Transformer 1000/5A, 0.5% accuracy, Input: 600V, 2, Operating: -10°C to 60°C, 5A, CT-SP-6 series
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-6-1000-5A
UPC
786685873541
Product Length/Depth
4.37 in
Product Height
7.83 in
Product Width
1.24 in
Product Weight
2.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
ANSI/IEEE Std C12.20
Catalog Notes
5.25 Burden VA ±0.5%
Special features
5.25 Burden VA ±0.5%
Operating Temperature
-10° to 60°C
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
1000A
Window size
5.50" x 2.00"
Output Current (Secondary)
5A
Output
5 A
Accuracy
0.50%
Input voltage
600 V
Number of wires
2
Series
CT-SP-6
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - CT-SP-6-1000-5A
5A split (M0) and solid (S0) core current transformers technical data
5A split (M0) and solid (S0) core current transformers technical data
Feature: Split-core design enables clamp-on installation without disconnecting conductors. Business Impact: Minimizes downtime, reduces labor costs, and accelerates commissioning. Application: Retrofit metering and panel monitoring in existing electrical rooms. Feature: 1000 A primary rating with 5 A secondary output provides compatibility with standard meters and protection relays. Business Impact: Streamlines data acquisition and simplifies integration with energy management systems. Application: High-current feeders in switchgear and distribution panels. Feature: 0.5% accuracy and 5.25 VA burden ensure stable readings into energy meters and SCADA. Business Impact: Improves billing accuracy and reduces measurement error in data logs. Application: Submetering and performance analytics. Feature: Broad operating range -10°C to 60°C and 600 V input rating. Business Impact: Reliable performance in harsh industrial environments, reducing recalibration needs. Application: Factory floors, warehouses, and plant rooms. Feature: RoHS compliant with ANSI/IEEE C12.20 certification. Business Impact: Regulatory compliance and supplier reliability for quality-assured installations. Application: Industrial distribution networks and compliant data collection. Feature: Compact window size 5.50 x 2.00 inches and 2-wire configuration supports easy mounting in tight enclosures. Business Impact: Simplifies installation in crowded panels and reduces entry points for wiring errors. Application: Metering cabinets and control panels in transformed spaces.
