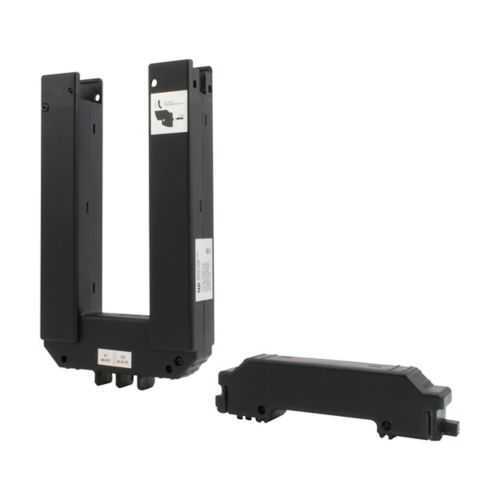

Eaton CT-SP-6-2000-5A Current Sensor - ANSI/IEEE C12.20
Part Number: CT-SP-6-2000-5A
Quick Summary
The Eaton CT-SP-6-2000-5A current sensor provides a 5A output for precise power monitoring in industrial panels. Engineers often confront accuracy drift and installation complexity in crowded switchgear, which this compact split-core sensor mitigates. It carries RoHS compliance and ANSI/IEEE Std C12.20 certification, supporting regulatory alignment in critical power distribution networks. With a 2000A primary rating, 5A secondary, and quick CT-SP-6 compatibility, it reduces wiring, labor, and overall life-cycle costs. Designed for applications in motor control centers, metering booths, and switchgear retrofits, it integrates with Eaton's CT-SP-6 ecosystem. Its 600 V input, 0.5% accuracy, and 8 VA burden support accurate monitoring without excessive burden on the measurement circuit.
Product Information
Extended Description
CT-SP-6-2000-5A Eaton: Eaton 5A split core current sensor, Transformer 2000/5A, 0.5% accuracy, Input: 600V, 2, Operating: -10°C to 60°C, 5A, CT-SP-6 series
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-6-2000-5A
UPC
786685873572
Product Length/Depth
4.37 in
Product Height
1.25 in
Product Width
1.24 in
Product Weight
2.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
ANSI/IEEE Std C12.20
Catalog Notes
8.00 Burden VA ±0.5%
Special features
8.00 Burden VA ±0.5%
Operating Temperature
-10° to 60°C
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
2000A
Window size
5.50" x 2.00"
Output Current (Secondary)
5A
Output
5 A
Accuracy
0.50%
Input voltage
600 V
Number of wires
2
Series
CT-SP-6
