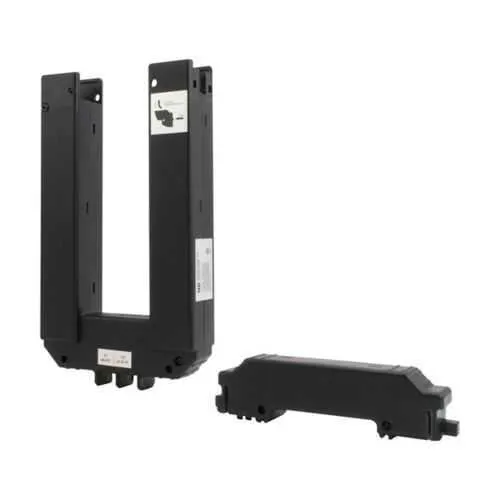

Eaton CT-SP-6-400-5A Current Sensor - ANSI/IEEE C12.20
Part Number: CT-SP-6-400-5A
Quick Summary
Eaton CT-SP-6-400-5A current sensor is a split-core transformer for precise metering in low-voltage power distribution. Its clamp-on design eliminates circuit disconnection, addressing field installation time and safety concerns. It carries RoHS compliance and ANSI/IEEE Std C12.20 certification, signaling environmental responsibility and metering accuracy in industrial panels. With a 400 A primary, 5 A secondary rating and 1.0% accuracy, it integrates smoothly with modern energy meters and control systems. For procurement teams, the CT-SP-6 series offers robust mechanical dimensions and a compact footprint, supporting 5.50 x 2.00 inch window openings and straightforward mounting in crowded panel boxes. This translates to faster deployments, reduced commissioning risk, and consistent measurement data across multiple feeders.
Product Information
Extended Description
CT-SP-6-400-5A Eaton: Split-core Current Transformer 400/5A, 1.0% accuracy, Input: 600V, 2, Operating: -10°C to 60°C, 5A, CT-SP-6 series
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-6-400-5A
UPC
786685873510
Product Length/Depth
4.37 in
Product Height
7.83 in
Product Width
1.24 in
Product Weight
2.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
ANSI/IEEE Std C12.20
Catalog Notes
2.75 Burden VA ±0.5%, 1.0 Class
Special features
2.75 Burden VA ±0.5%, 1.0 Class
Operating Temperature
-10° to 60°C
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
400A
Window size
5.50" x 2.00"
Output Current (Secondary)
5A
Output
5 A
Accuracy
1.00%
Input voltage
600 V
Number of wires
2
Series
CT-SP-6
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - CT-SP-6-400-5A
5A split core current transformers (CT-SP) technical data
5A split core current transformers (CT-SP) technical data
Feature: Split-Core design enables non-invasive installation by clamping around conductors without disconnecting power. Business Impact: Reduces installation time, minimizes outage risk, and lowers labor costs during retrofits. Application: Ideal for panel metering upgrades in commercial and industrial facilities. Feature: 400 A primary rating with a 5 A secondary output. Business Impact: Supports high-load monitoring with a single sensor, reducing the need for multiple CTs. Application: Main feeders and submetering in LV distribution systems. Feature: 600 V input voltage rating and two-conductor output. Business Impact: Ensures safe, direct integration with standard meters and monitoring equipment. Application: Energy management and power quality monitoring across diverse installations. Feature: 1.0% accuracy and 2.75 VA burden. Business Impact: Delivers reliable measurement data that improves billing accuracy and energy analytics while maintaining workable signal integrity. Application: Precision metering for utilities and data centers. Feature: RoHS compliant and ANSI/IEEE C12.20 certified. Business Impact: Supports regulatory conformance and reliable performance in regulated industries. Application: Industrial panels requiring compliance and certified metering. Feature: Window size 5.50" x 2.00" and compact overall footprint. Business Impact: Facilitates installation in crowded panels and retrofit scenarios without extensive panel remodeling. Application: Retrofit projects and new panel layouts in space-constrained environments.
