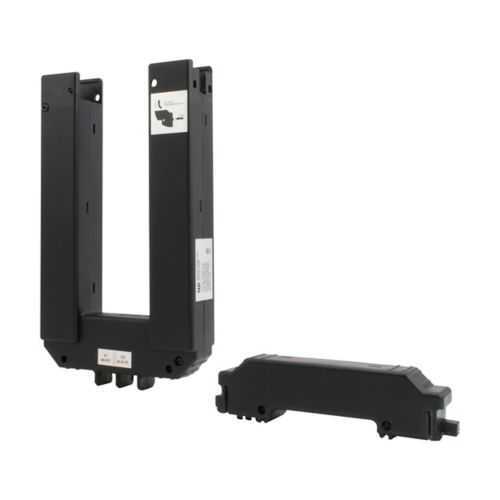

Eaton CT-SP-6-600-5A Split Core Current Transformer - ANSI/IEEE C12.20
Part Number: CT-SP-6-600-5A
Quick Summary
Eaton 5A split core current sensor precisely measures load current for panel metering and protection. Retrofit projects often face downtime and bulky CT assemblies that slow commissioning, but this compact, clamp-on solution speeds installation and reduces service disruption. It carries ANSI/IEEE C12.20 certification and RoHS compliance, with reliable operation from -10°C to 60°C to withstand industrial environments. With its 5A secondary and compact footprint, it enables scalable metering and seamless integration with modern power management systems. This translates into lower installation costs, faster commissioning, and improved data quality for energy dashboards in commercial and industrial facilities. Engineers gain predictable performance across variable loads and wiring configurations.
Product Information
Extended Description
CT-SP-6-600-5A Eaton: Split-core Current Transformer 600/5A, 0.7% accuracy, Input: 600V, 2, Operating: -10°C to 60°C, 5A, CT-SP-6 series
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-6-600-5A
UPC
786685873527
Product Length/Depth
4.37 in
Product Height
7.83 in
Product Width
1.24 in
Product Weight
2.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
ANSI/IEEE Std C12.20
Catalog Notes
2.75 Burden VA ±0.5%, 0.7 Class
Special features
2.75 Burden VA ±0.5%, 0.7 Class
Operating Temperature
-10° to 60°C
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
600A
Window size
5.50" x 2.00"
Output Current (Secondary)
5A
Output
5 A
Accuracy
0.70%
Input voltage
600 V
Number of wires
2
Series
CT-SP-6
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - CT-SP-6-600-5A
5A split (M0) and solid (S0) core current transformers technical data
5A split (M0) and solid (S0) core current transformers technical data
Selling Policy 25-000 - Distribution and Control Products and Services
Split-core design lets you clamp around a live conductor without disconnecting equipment, enabling fast retrofits in existing panels. This reduces on-site downtime and minimizes wiring changes, translating into lower labor costs and quicker project completion. In energy metering and protection schemes, the CT-SP-6 series excels at adding metering points to large feeders or subpanels. The sensor delivers 0.70% accuracy with a 2.75 VA burden, ensuring precise measurement for power quality analytics while keeping meter loading modest. That low burden supports accurate data collection without overstressing meters or relays, helping meet regulatory reporting requirements. This is especially valuable in data centers, manufacturing floors, and commercial buildings where data fidelity matters. With a 600 A primary rating and 5 A secondary output, it matches standard metering instruments while delivering clean, linear signals to energy meters and control systems. The 5.50 x 2.00 inch window fits common conductor sizes, simplifying installation in crowded panels, and the 2-wire secondary reduces wiring errors and commissioning time. Rated for 600 V input and an operating range of -10°C to 60°C, the CT-SP-6-600-5A performs reliably in harsh environments and with varying loads. RoHS compliance and ANSI/IEEE C12.20 certification support regulatory and sustainability goals, while the compact form factor eases enclosure and cable management. Dimensions and weight support practical mounting: 4.37 in length, 7.83 in height, 1.24 in width, and about 2.2 lb. The one-year warranty from installation (or 18 months from shipment) provides project confidence, while Eaton provides datasheets and technical support to accelerate deployments. Compatibility considerations: ensure a simple single-conductor path through the window and verify enclosure requirements if CE or IP ratings are mandated; this CT-SP-6-600-5A is designed for panel boards, meters, and power management systems that require a reliable 5A output.
