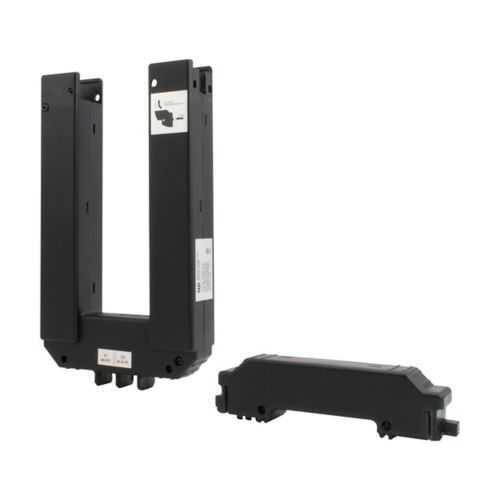

Eaton CT-SP-6-800-5A Current Sensor - 0.6% Accuracy
Part Number: CT-SP-6-800-5A
Quick Summary
Eaton CT-SP-6-800-5A current sensor provides precise 5 A output for panel metering and energy monitoring. Engineers often struggle with accuracy, bulky form factors, and regulatory compliance when retrofitting metering in existing panels. Certified to ANSI/IEEE Std C12.20 and RoHS compliant, it helps ensure reliability and environmental compliance across installations. The device is rated for 600 V input, operates from -10° to 60°C, and uses a compact split-core window that simplifies retrofits. Its small footprint and robust accuracy support scalable energy reporting and cost-effective upgrades across industrial facilities. This combination lends itself to faster commissioning and ongoing data accuracy for energy management systems.
Product Information
Extended Description
CT-SP-6-800-5A Eaton: Split-core Current Transformer 800/5A, 0.6% accuracy, Input: 600V, 2, Operating: -10°C to 60°C, 5A, CT-SP-6 series
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-6-800-5A
UPC
786685873534
Product Length/Depth
4.37 in
Product Height
7.83 in
Product Width
1.24 in
Product Weight
2.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
ANSI/IEEE Std C12.20
Catalog Notes
4.00 Burden VA ±0.5%, 0.6 Class
Special features
4.00 Burden VA ±0.5%, 0.6 Class
Operating Temperature
-10° to 60°C
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
800A
Window size
5.50" x 2.00"
Output Current (Secondary)
5A
Output
5 A
Accuracy
0.60%
Input voltage
600 V
Number of wires
2
Series
CT-SP-6
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - CT-SP-6-800-5A
5A split core current transformers (CT-SP) technical data
5A split core current transformers (CT-SP) technical data
Feature: Split-core design enables clamp-on installation without disconnecting primary conductors. Business Impact: Reduces installation downtime and minimizes panel outages, enabling rapid retrofits in existing electrical rooms. Application: Ideal for retrofitting metering on motor feeders or branch circuits in control panels. Feature: 5A secondary with an 800A primary rating delivers direct metering compatibility. Business Impact: Simplifies wiring and delivers reliable measurements for energy dashboards, reducing commissioning time. Application: Used with energy management systems and metering instrumentation across industrial facilities. Feature: 0.60% accuracy and 4.00 burden VA. Business Impact: Improves billing accuracy and data quality for power monitoring, lowering revenue leakage and audit risk. Application: Critical for utility-grade reporting in manufacturing lines and data centers. Feature: 600 V input rating with a compact window size 5.50" x 2.00". Business Impact: Enables installation in tight panels and high-voltage environments without compromising signal integrity. Application: Suitable for panel boards and switchgear metering deployments. Feature: RoHS compliant and ANSI/IEEE C12.20 certified. Business Impact: Meets regulatory and environmental requirements, reducing compliance risk. Application: Industrial environments requiring standard certifications for metering components.
Get a Quick Quote for a Eaton CT-SP-6-800-5A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CT-SP-6-800-5A?
Enquire Now
FAQs
Install by opening the split-core window and routing the conductor through the 5.50" x 2.00" opening without disconnecting power. Ensure the conductor is fully seated for accurate sensing, then connect the 5 A secondary leads to the metering input. Verify that the rated 600 V input is within the circuit and perform a functional check with instrument transformers or meters.
Key specs include a split-core design, 800 A primary rating, 5 A secondary output, 0.60% accuracy, 600 V input, and a burden of 4.00 VA. The device operates from -10°C to 60°C and is RoHS compliant, with ANSI/IEEE Std C12.20 certification, making it suitable for precise, regulatory-compliant energy metering in industrial applications.
Yes, it is designed for 600 V class systems and provides a robust metering signal through its 5 A secondary. The RoHS compliance and ANSI/IEEE C12.20 certification support regulatory approval, while the compact window and split-core design facilitate retrofits in existing high-voltage panels without extensive disassembly.
The CT-SP-6-800-5A carries ANSI/IEEE Std C12.20 certification and RoHS compliance, reflecting suitability for regulated electrical installations and environmentally conscious manufacturing environments. It also aligns with standard metering practices used in industrial facilities, helping procurement and quality teams meet internal and external requirements.
Expect faster commissioning due to easy clamp-on installation and minimal panel downtime. The 0.60% accuracy supports reliable energy data, reducing billing disputes and improving energy management decisions. The RoHS certification and durable construction also lower maintenance costs and replacement risk in demanding industrial environments.
