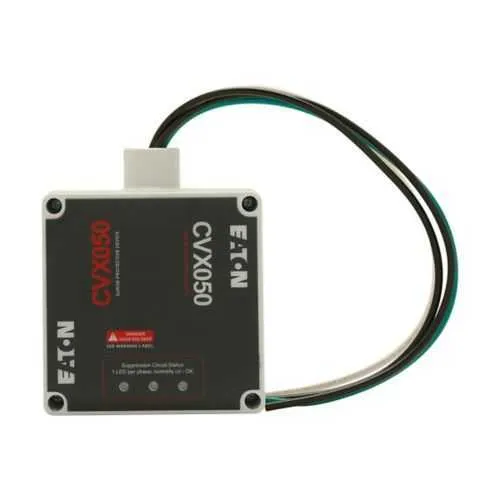

Eaton CVX050-230L Surge Protection Device - UL 1449
Part Number: CVX050-230L
Quick Summary
Eaton CVX050-230L surge protection device protects single‑phase electrical systems in industrial control panels and critical equipment. Facility downtime or equipment damage from power transients is a common challenge; this device helps mitigate that risk by clamping surges and diverting energy away from sensitive loads. UL 1449 certification underpins safety and performance, and the CVX050-230L is designed for 200–240 V operation with a 50 kAIC rating for robust protection. Its compact form factor and clear diagnostics streamline installation and ongoing maintenance, delivering reliable surge protection while reducing maintenance costs. This solution integrates smoothly with existing protective schemes and supports compliance ambitions, helping engineers meet reliability targets and protect valuable assets.
Product Information
Extended Description
CVX050-230L Eaton: Surge Protection Device, CVX050 series, 50 kAIC, 200V ,208V, 220V, 230V, 240V, Includes ground, 320 L-N, 640 L-G, 320 N-G operating voltage, Single-phase, Two-wire
Product Name
Eaton CVX surge protection device
Catalog Number
CVX050-230L
UPC
786685216188
Product Length/Depth
3.55 in
Product Height
5.67 in
Product Width
4.75 in
Product Weight
2 lb
Warranty
5 year
Certifications
UL 1449
Voltage rating
200 V ,208 V, 220 V, 230 V, 240 V
Phase
Single-phase
Type
CVX050
Feature → Business Impact → Application: The CVX050-230L delivers a 50 kAIC surge rating, providing high-energy transient protection that minimizes nuisance outages and extends the life of downstream equipment, reducing maintenance costs and downtime in critical lines. Application: Industrial panels and machines operating at 200–240 V benefit from improved reliability and asset protection in manufacturing cells and process lines. Feature → Business Impact → Application: The device supports a broad voltage range (200 V to 240 V) in single‑phase, two‑wire configurations, enabling flexible deployment across varied facilities without redesigning power distribution. Application: Suitable for mixed-voltage environments where quick, dependable surge protection is required. Feature → Business Impact → Application: Multiple current paths (L‑N, L‑G, N‑G) enable robust grounding and energy routing, improving safety margins and simplifying fault diagnosis in control panels. Application: On equipment racks and switchgear where reliable fault paths are essential. Feature → Business Impact → Application: Compact dimensions (3.55 in depth, 5.67 in height, 4.75 in width) and a lightweight 2 lb package ease mounting in crowded enclosures, speeding retrofits and new installations alike. Application: Panel builders and maintenance teams seeking efficient, space‑saving protection. Feature → Business Impact → Application: UL 1449 certification and a 5‑year warranty deliver compliance assurance and long‑term support, reducing risk in procurement and service contracts. Application: Procurement for OEMs and integrators prioritizing safety standards and predictable total cost of ownership.
Get a Quick Quote for a Eaton CVX050-230L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CVX050-230L?
Enquire Now
FAQs
CVX050-230L is a single‑phase, two‑wire surge protector designed for 200–240 V systems and standard panel installations. It includes ground and supports L‑N, L‑G, and N‑G paths, enabling straightforward integration into most protection schemes. Verify enclosure space and ensure access to terminations for clean connection to the incoming supply and downstream loads.
Key specs include a 50 kAIC surge rating, voltage rating from 200 to 240 V, single‑phase operation, and three protected paths: L‑N, L‑G, and N‑G. It is engineered for applications in industrial environments where transient surges can affect control circuits, motors, and sensors, with a compact footprint suitable for panel mounting.
Yes. The CVX050-230L is designed for 200 V to 240 V systems, covering commonly used 208 V, 230 V, and 240 V industrial power networks. This makes it a versatile choice for facilities with mixed voltages, ensuring consistent surge protection across configurations without device changes.
The CVX050-230L carries a 5‑year warranty that typically covers manufacturing defects and performance reliability under normal use. Warranty terms may include conditions on installation, operating voltage, and environmental exposure, so refer to Eaton’s warranty documentation for specifics and to understand any exclusions or return processes.
By delivering a 50 kAIC surge rating and a broad voltage range, the CVX050-230L clamps transient energy and diverts it away from sensitive loads. This reduces the risk of nuisance trips and equipment damage, leading to less unplanned downtime, longer asset life, and lower maintenance costs in machines, controls, and manufacturing lines.
