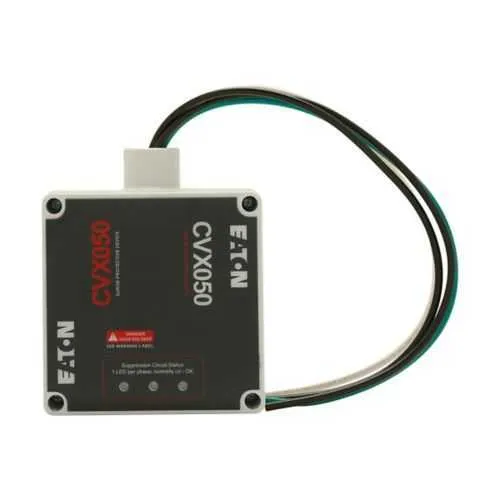

Eaton CVX050-240S Surge Protection Device - UL 1449
Part Number: CVX050-240S
Quick Summary
The Eaton CVX050-240S surge protection device protects electrical systems from transient overvoltages in industrial and commercial power panels. It helps prevent costly downtime and equipment wear caused by voltage spikes, supporting longer asset life and fewer unscheduled outages. UL 1449 certification underpins its safety and performance credentials, while its split single-phase design accommodates both 100/200 V and 120/240 V networks. By combining a compact form with proven protection, this device reduces maintenance needs and improves system reliability, delivering peace of mind for facilities managers, electrical engineers, and procurement teams seeking robust, standards-compliant surge protection.
Product Information
Extended Description
CVX050-240S Eaton: Surge Protection Device, CVX050 series, 50 kAIC, 100/200V, 120/240V, Includes ground, 300 L-L, 150 L-N, 300 L-G, 150 N-G operating voltage, Split single-phase, Three-wire
Product Name
Eaton CVX surge protection device
Catalog Number
CVX050-240S
UPC
786685216195
Product Length/Depth
3.55 in
Product Height
5.67 in
Product Width
4.75 in
Product Weight
2 lb
Warranty
5 year
Certifications
UL 1449
Voltage rating
100/200 V, 120/240 V
Phase
Split single-phase
Type
CVX050
Feature: 50 kAIC surge capacity provides robust protection against high-energy transients, reducing the risk of equipment damage and downtime. Business impact: lower replacement costs and improved uptime for motors, drives, and control circuits in manufacturing lines. Application: ideal for panelboards and switchgear in industrial environments. Feature: Voltage compatibility of 100/200 V and 120/240 V with a split single-phase, three-wire configuration. Business impact: flexible integration across common power distribution topologies without rewiring. Application: controls cabinets and distributed power systems in commercial facilities. Feature: Grounding and protection network includes ground, L-L, L-N, L-G, and N-G connections. Business impact: comprehensive transient suppression paths and safer fault management, reducing nuisance faults. Application: critical equipment protection in automation cells and MCCs. Feature: Compact enclosure (approx. 3.55 in L, 4.75 in W, 5.67 in H) and 2 lb weight. Business impact: space-efficient installation, faster retrofits, and easier field handling. Application: retrofit projects and new builds with limited panel space. Feature: 5-year warranty and UL 1449 certification. Business impact: strong total cost of ownership, predictable maintenance planning, and assured regulatory compliance. Application: procurement decisions in industrial and commercial electrical systems. Feature: Compatibility with CVX series and Eaton ecosystems. Business impact: streamlined maintenance, fewer compatibility concerns, and simpler future upgrades. Application: integrated protection strategy within Eaton-powered electrical cabinets and distribution systems.
Get a Quick Quote for a Eaton CVX050-240S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CVX050-240S?
Enquire Now
FAQs
When installing the CVX050-240S, ensure adequate panel space for the compact enclosure (approximately 3.55 in L x 4.75 in W x 5.67 in H) and proper clearance for heat dissipation. Wire it as a split single-phase, three-wire system with ground, following the provided L-L, L-N, L-G, and N-G connections. Verify wiring torque specifications and secure mounting to prevent vibration or loosening in operation.
The CVX050-240S offers a 50 kAIC surge capacity, suitable for high-energy transients. It supports voltage ratings of 100/200 V or 120/240 V in split-phase configurations, allowing flexible deployment across common commercial and industrial power networks without changing protection strategy or panel layout.
Yes, the CVX050-240S is designed for protection in panels and switchgear commonly found in data centers, motor control centers, and industrial automation cabinets. Its 50 kAIC capacity and UL 1449 certification align with typical data center protection standards, while its compact footprint eases integration in crowded MCCs and control panels.
The CVX050-240S carries UL 1449 certification, confirming compliance with established surge protection safety and performance standards. This certification supports regulatory acceptance across many regions and provides assurance for engineering and procurement teams evaluating protection reliability.
Installing the CVX050-240S helps reduce unplanned downtime and equipment wear from transient events, leading to lower maintenance costs and fewer replacement parts. The device's 5-year warranty and UL-listed protection contribute to predictable total cost of ownership, while compatible voltage ranges and a compact form simplify installation and future scalability.
