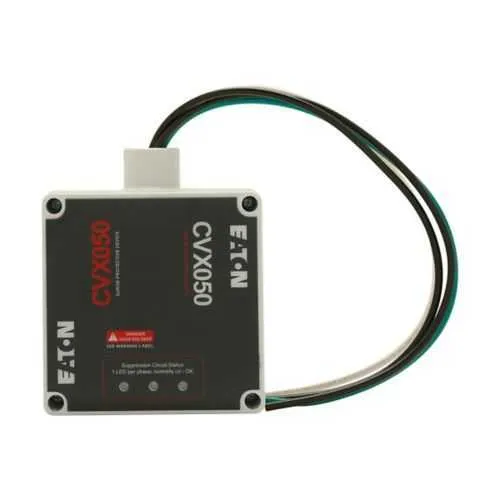

Eaton CVX050-480L Surge Protection Device - UL 1449
Part Number: CVX050-480L
Quick Summary
Eaton CVX050-480L surge protection device protects single-phase electrical systems in industrial facilities from transient spikes. Unplanned voltage surges can damage drives, PLCs, and control circuits, triggering costly downtime for manufacturers and facilities managers. UL 1449 certification backs its safety and performance in demanding panels, while its 200–240 V single-phase design simplifies integration across existing electrical rooms. This solution offers a compact footprint and a 5-year warranty, delivering reliable surge protection within standard power distribution layouts and helping you meet uptime SLAs and compliant maintenance practices.
Product Information
Extended Description
CVX050-480L Eaton: Surge Protection Device, CVX050 series, 50 kAIC, 200V ,208V, 220V, 230V, 240V, Includes ground, 550 L-N, 1100 L-G, 550 N-G operating voltage, Single-phase, Two-wire
Product Name
Eaton CVX surge protection device
Catalog Number
CVX050-480L
UPC
786685514659
Product Length/Depth
3.55 in
Product Height
5.67 in
Product Width
4.75 in
Product Weight
2 lb
Warranty
5 year
Certifications
UL 1449
Voltage rating
200 V ,208 V, 220 V, 230 V, 240 V
Phase
Single-phase
Type
CVX050
Feature: 50 kAIC surge capacity. Business impact: Provides headroom to absorb large transients, protecting downstream equipment and reducing nuisance trips. Application: Ideal for panel boards, motor control centers, and machine feeders in manufacturing facilities. Feature: Voltage rating from 200 to 240 V in a single-phase, two-wire configuration. Business impact: Enables straightforward integration with common industrial power supplies and minimizes wiring complexity. Application: Suitable for new installations and retrofit projects across industrial plants. Feature: Compact 3.55 in length, 4.75 in width, 5.67 in height and 2 lb weight. Business impact: Easier installation in crowded panels and tighter electrical rooms, lowering installation time and labor costs. Application: Quick add-on in control panels and distribution boards. Feature: 5-year warranty and UL 1449 certification. Business impact: Demonstrates long-term reliability and regulatory compliance, reducing risk of field failures. Application: Confidence for maintenance teams and procurement in regulated environments. Feature: Ground, L-N, L-G, and N-G connections included. Business impact: Ensures proper wiring topology for optimal surge mitigation and safer grounding practices. Application: Standardized connection scheme across Eaton CVX050 series deployments.
Get a Quick Quote for a Eaton CVX050-480L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CVX050-480L?
Enquire Now
FAQs
For new installations, plan a clean panel layout that accommodates the CVX050-480L's compact footprint and three grounding connections (L-N, L-G, N-G). In retrofit projects, verify the panel has adequate clearance for the device’s 3.55 in length and 5.67 in height, and ensure proper labeling and scoping of the single-phase, two-wire configuration to minimize wiring errors and downtimes.
The CVX050-480L supports a 50 kAIC surge current rating, suitable for high-energy transients. It operates over a voltage range of 200 V to 240 V in single-phase systems, enabling compatibility with common industrial power supplies and distribution panels while maintaining robust protection across typical European and North American voltages.
Yes. With 50 kAIC surge capacity and a 200–240 V single-phase rating, this device effectively clamps transient events that commonly affect motor drives and PLCs. Its UL 1449 certification further assures compliance and reliability in demanding environments, helping to preserve uptime for automation lines and reducing repair costs from surge-related damage.
The CVX050-480L is UL 1449 certified, indicating conformance with established electrical safety and performance standards for surge protection devices. This certification provides assurance for safety-critical applications, supports regulatory compliance in many regions, and facilitates acceptance by engineers, procurement teams, and maintenance personnel during audits and vendor qualification.
Expected ROI comes from reduced downtime, lower replacement costs for damaged electronics, and extended equipment life due to improved surge mitigation. The device offers a 5-year warranty with minimal ongoing maintenance; ensure periodic inspection of grounding connections and panel integrity to sustain optimum protection without additional labor or frequent part replacements.
