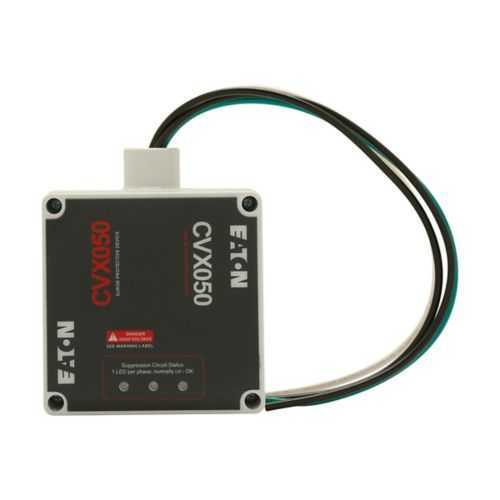

Eaton CVX050-480Y Surge Protection Device - UL1449
Part Number: CVX050-480Y
Quick Summary
The Eaton CVX050-480Y surge protection device safeguards three-phase electrical systems from transient surges. Power quality events and mis-sized protection cause expensive downtime; selecting the right SPD is essential. UL 1449 listing with a 5-year warranty and a three-phase design provide reliable compliance and long-term value. This solution aligns with energy-management goals and supports quick deployment in 220/380 to 277/480 V environments. Beyond protection, it integrates with standard panel wiring for straightforward installation and maintenance, and engineers value its compact 2 lb form factor. In practice, it helps protect costly motors, drives, and controls from sporadic surges that accompany switching events.
Product Information
Extended Description
CVX050-480Y Eaton: Surge Protection Device, CVX050 series, 50 kAIC, 220/380V, 230/400V, 240/415V, 277/480V, 640 L-L, 320 L-N, 640 L-G, 320 N-G operating voltage, Three-phase
Product Name
Eaton CVX surge protection device
Catalog Number
CVX050-480Y
UPC
786685216218
Product Length/Depth
3.55 in
Product Height
5.67 in
Product Width
4.75 in
Product Weight
2 lb
Warranty
5 year
Certifications
UL 1449
Voltage rating
220/380 V, 230/400 V, 240/415 V, 277/480 V
Phase
Three-phase
Type
CVX050
Feature: 50 kAIC surge current rating with UL 1449 listing. Business Impact: This level of transient protection minimizes the risk of equipment damage during line disturbances, reducing repair costs and unplanned downtime. Application: Ideal for panelboards and machine-automation lines across manufacturing environments. Field engineers report fewer service calls after upgrading to CVX050-480Y due to consistent surge suppression. Feature: Three-phase voltage ratings spanning 220/380 V, 230/400 V, 240/415 V, and 277/480 V. Business Impact: Directly matches common industrial power systems, simplifying design, procurement, and installation. Application: Suitable for OEM equipment, process lines, and distribution panels in mixed-voltage facilities. This reduces design complexity in multi-source facilities. Feature: Compact enclosure with dimensions around 3.55 in by 4.75 in by 5.67 in and a weight of 2 lb. Business Impact: Easier mounting in crowded control panels and faster service with minimal space penalties. Application: Retrofit projects and new installations where space is a premium, including compact switchgear housings. The small form factor supports efficient heat management and IP-rating considerations. Feature: Comprehensive protection paths including L-L, L-N, L-G, and N-G configurations. Business Impact: Delivers robust protection against line-to-line and line-to-ground surges, reducing nuisance trips and device wear. Application: Protects CNCs, robotics, drives, and other sensitive automation equipment. This broad coverage also simplifies integration with existing protection schemes. Feature: Five-year warranty and UL 1449 certification backing reliability. Business Impact: Lowers total cost of ownership through extended coverage and consistent performance. Application: Asset-protection programs, predictive maintenance plans, and long-term protection strategies. Engineers appreciate the assurance of ongoing protection through planned maintenance cycles.
Get a Quick Quote for a Eaton CVX050-480Y
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CVX050-480Y?
Enquire Now
FAQs
Begin with de-energizing the panel and confirming compatibility with UL 1449-rated protection. Mount the CVX050-480Y in a suitable enclosure and connect conductors to the L-L, L-N, and L-G terminals per the wiring diagram. Ensure proper phase sequence, secure all connections, and verify grounding. After installation, perform a functional test and confirm the device is clearly labeled for maintenance teams.
The CVX050-480Y provides a 50 kAIC surge current rating and is UL 1449 listed. It supports voltage ratings of 220/380 V, 230/400 V, 240/415 V, and 277/480 V in a three-phase configuration. The device is designed for L-L, L-N, and L-G protection paths, with a compact enclosure weighing about 2 lb and a catalog number CVX050-480Y.
Yes. The CVX050-480Y is designed for industrial automation environments, offering robust transient protection for panels, drives, robotics, and CNC systems. Its three-phase configuration and broad voltage coverage align with typical factory power rails, helping to reduce nuisance trips and downtime while maintaining power quality across automation assets.
The CVX050-480Y is UL 1449 listed, ensuring compliance with recognized protection standards. It carries a 5-year warranty, reflecting Eaton’s commitment to reliability. These certifications and warranty support ongoing protection for critical equipment in industrial settings and simplify compliance auditing for maintenance programs.
Expected ROI stems from reduced downtime, lower repair costs, and longer asset life due to improved transient protection. By preventing surge-induced failures in motors, drives, and controls, facilities experience higher line uptime and more predictable maintenance planning, while the 5-year warranty minimizes long-term ownership risk.
