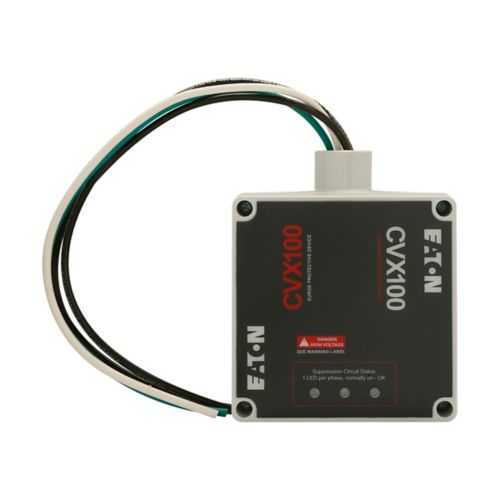

Eaton CVX100-230L Surge Protection Device - UL 1449
Part Number: CVX100-230L
Quick Summary
Eaton CVX100-230L surge protection device protects single-phase electrical systems in industrial control panels from transient surges. This solution addresses downtime caused by voltage spikes that damage sensors, drives, and controllers. It carries UL 1449 certification and a 5-year warranty for reliable, long-term protection. By pairing robust surge suppression with a compact form factor, it simplifies panel upgrades, reduces maintenance costs, and improves uptime for critical machinery. For engineers and procurement teams, this device offers proven safety, easy installation, and predictable total cost of ownership in harsh industrial environments.
Product Information
Extended Description
CVX100-230L Eaton: Surge Protection Device, CVX100 series, 100 kAIC, 200V ,208V, 220V, 230V, 240V, Includes ground, 320 L-N, 320 L-G, 320 N-G operating voltage, Single-phase, Two-wire
Product Name
Eaton CVX surge protection device
Catalog Number
CVX100-230L
UPC
786685216249
Product Length/Depth
3.55 in
Product Height
5.67 in
Product Width
4.75 in
Product Weight
2 lb
Warranty
5 year
Certifications
UL 1449
Voltage rating
200 V ,208 V, 220 V, 230 V, 240 V
Phase
Single-phase
Type
CVX100
The CVX100-230L delivers a 100 kAIC surge rating, offering substantial protection against high-energy transient events. This translates to reduced equipment wear, lower downtime, and longer life for sensitive drives and PLCs in demanding production lines. In practice, the device clamps surges quickly across 200–240 V single-phase systems, safeguarding L-N, L-G, and N-G paths while maintaining normal operation of connected loads. Its compact footprint (3.55 in depth, 4.75 in wide, 5.67 in high) and 2 lb weight simplify installation in crowded control panels, enabling retrofit projects without reworking enclosures. UL 1449 listing provides a trusted safety baseline, while a 5-year warranty reinforces total cost of ownership with long-term reliability. The CVX100-230L is compatible with Eaton’s CVX100 series and standard mounting schemes, ensuring straightforward integration with existing protective architectures and panel hardware.
Get a Quick Quote for a Eaton CVX100-230L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CVX100-230L?
Enquire Now
FAQs
The CVX100-230L is designed for straightforward installation in single-phase panels. Begin by de-energizing the panel and verifying voltage within the 200–240 V range. Mount the unit using standard panel hardware, connect L-N, L-G, and N-G as indicated, and ensure proper grounding. The compact 3.55 in depth helps fit into cramped spaces, reducing panel rework. After wiring, perform a basic continuity check and re-energize for a functional surge test to confirm correct operation.
The CVX100-230L provides a 100 kAIC surge rating and supports 200 V to 240 V across a single-phase, two-wire circuit. It includes protection paths for L-N, L-G, and N-G, ensuring comprehensive transient suppression for controllers, drives, sensors, and PLCs. This combination delivers robust protection for critical equipment against long-term voltage transients and lightning-induced surges, helping to minimize unplanned downtime.
The CVX100-230L is part of Eaton’s CVX100 surge protection family and is designed for straightforward integration in existing CVX100-compatible panels. It is best suited for industrial control panels, machine enclosures, and electrical cabinets housing single-phase equipment like PLCs and drives. Its standardized footprint and mounting approach simplify retrofits and upgrades, enabling designers to maintain consistent protection strategies across legacy and new installations.
The CVX100-230L carries UL 1449 certification, confirming compliance with established surge protection safety standards. It also includes a 5-year warranty, offering long-term protection against component degradation and performance loss. This combination supports regulatory alignment and predictable maintenance budgeting, making it a solid choice for reliability-focused procurement programs.
By limiting voltage transients to safe levels, the CVX100-230L reduces equipment wear, prevents unexpected outages, and minimizes maintenance costs for critical machinery. Its high surge rating, compact installation footprint, and UL-listed safety framework help maintain production continuity, extend equipment life, and lower total cost of ownership for control panels, drives, and sensors in demanding industrial environments.
