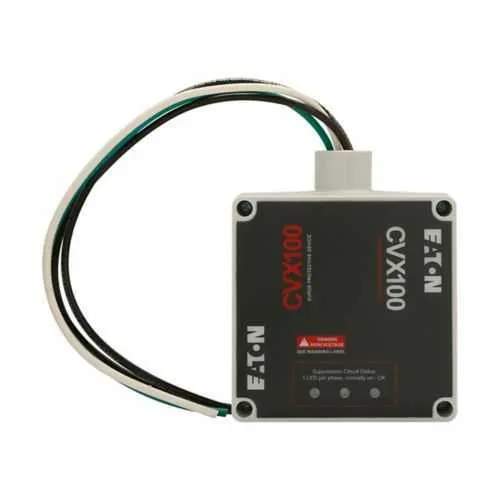

Eaton CVX100-240D Surge Protection Device - UL 1449
Part Number: CVX100-240D
Quick Summary
Eaton CVX100-240D surge protection device safeguards three-phase electrical systems against transient overvoltages in industrial environments. End users face costly downtime from transient surges; CVX100-240D provides fast clamping and reliable protection to keep critical equipment online. UL 1449 listing confirms compliance with recognized safety standards and surge performance. Designed for 200–240 V three-phase systems with ground, it fits panel enclosures and supports easy installation, delivering measurable value for engineers and procurement teams seeking long-term reliability.
Product Information
Extended Description
CVX100-240D Eaton: Surge Protection Device, CVX100 series, 100 kAIC, 200V ,208V, 220V, 230V, 240V, Includes ground, 320 L-L, 320 L-G operating voltage, Three-phase, Three-wire
Product Name
Eaton CVX surge protection device
Catalog Number
CVX100-240D
UPC
786685216287
Product Length/Depth
3.55 in
Product Height
5.67 in
Product Width
4.75 in
Product Weight
2 lb
Warranty
5 year
Certifications
UL 1449
Voltage rating
200 V ,208 V, 220 V, 230 V, 240 V
Phase
Three-phase
Type
CVX100
Feature → 100 kAIC surge rating. Business Impact → Reduces unplanned downtime and protects high-value loads. Application → Suitable for manufacturing lines with motors, drives, and PLC power rails. Feature → Voltage range of 200–240 V (including 208/230 V points). Business Impact → Simplifies panel planning and procurement by covering multiple supply voltages with a single device. Application → Ideal for new installations and retrofit projects in control cabinets and switchboards. Feature → Ground-inclusive, three-phase, three-wire configuration. Business Impact → Ensures a reliable fault path and safer operation while streamlining wiring and grounding. Application → Fits large control systems, process lines, and automated packaging equipment. Feature → Compact footprint: 3.55 in depth, 5.67 in height, 4.75 in width; 2 lb weight.Business Impact → Easier panel mounting, reduced enclosure requirements, and faster field installation. Application → Suitable for standard electrical enclosures in automation racks and distributed systems. Feature → UL 1449 safety certification and a 5-year warranty. Business Impact → Provides regulatory confidence and long-term cost-of-ownership savings. Application → Ideal for regulated facilities and procurement programs that require qualified surge protection devices.
Get a Quick Quote for a Eaton CVX100-240D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CVX100-240D?
Enquire Now
FAQs
Begin by powering down the panel and verifying enclosure space. Mount the CVX100-240D in the designated space, connect L-L and L-G as per the wiring diagram, ensure the grounding conductor is properly bonded, and secure all connections. After installation, perform a quick functional check and confirm the unit is UL 1449 listed for compliance.
The CVX100-240D features a 100 kAIC surge rating and supports a voltage range of 200 V, 208 V, 220 V, 230 V, and 240 V in a three-phase, three-wire configuration with an included ground. It is UL 1449 listed and cataloged as CVX100-240D, with a compact footprint suitable for panel mounting.
Yes. Its 100 kAIC surge rating and three-phase protection make it well-suited for motor drives, PLC power rails, and automation panels. It supports common industrial voltages (200–240 V) and provides reliable transient suppression, helping to maintain automation throughput and protect expensive control electronics.
CVX100-240D is UL 1449 listed, confirming adherence to recognized safety and performance standards for surge protective devices. This certification is critical for electrical panels, data centers, and regulated facilities, ensuring compliance during audits and satisfying procurement requirements for safety and reliability.
With a 5-year warranty, the CVX100-240D offers long-term cost-of-ownership benefits by reducing replacement costs and downtime from surge events. Routine checks during preventive maintenance and periodic replacement after significant surge exposure help maintain optimal protection and maximize return on investment for mission-critical environments.
