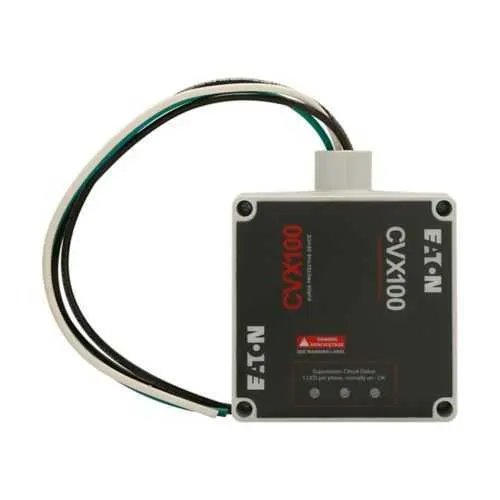

Eaton CVX100-480Y Surge Protection Device - UL 1449
Part Number: CVX100-480Y
Quick Summary
Eaton CVX100-480Y surge protection device protects critical electrical systems from transient overvoltages in three-phase, four-wire industrial networks. When surges strike, unprotected equipment experiences downtime, spiking maintenance costs and risking data integrity. This product is UL 1449 listed, offering reliability with a 5-year warranty and robust current handling. Designed for panelboards, MCCs, and distribution boards, it covers 220/380 V to 277/480 V systems. By selecting a single, standardized surge protector, engineers reduce spare parts inventory and simplify procurement while maintaining safety and compliance across multi-volt infrastructures. In practice, the CVX100-480Y helps extend equipment life and support uptime commitments in automated facilities, improving return on investment.
Product Information
Extended Description
CVX100-480Y Eaton: Surge Protection Device, CVX100 series, 100 kAIC, 220/380V, 230/400V, 240/415V, 277/480V, Includes ground, 640 L-L, 320 L-N, 320 L-G, 320 N-G operating voltage, Three-phase, Four-wire
Product Name
Eaton CVX surge protection device
Catalog Number
CVX100-480Y
UPC
786685216270
Product Length/Depth
3.55 in
Product Height
5.67 in
Product Width
4.75 in
Product Weight
2 lb
Warranty
5 year
Certifications
UL 1449
Voltage rating
220/380 V, 230/400 V, 240/415 V, 277/480 V
Phase
Three-phase
Type
CVX100
High surge capability and robust ratings drive real-world value: the CVX100-480Y is rated for 100 kAIC, delivering fast clamp response to large transients and protecting sensitive loads such as motors, drives, and controls. This translates to reduced maintenance costs and less unexpected downtime in critical lines like conveyors and packaging. Voltage flexibility further enhances reliability, with a range spanning 220/380 V, 230/400 V, 240/415 V, and 277/480 V, enabling seamless integration across mixed electrical infrastructures without bespoke protections. The three-phase, four-wire design with ground included simplifies installation in modern distribution boards and MCCs, while providing predictable protection regardless of phase balance. Its compact footprint (3.55 in x 4.75 in x 5.67 in) and 2 lb weight support quick panel mounting in space-constrained control centers. A 5-year warranty paired with UL 1449 certification adds regulatory confidence, ensuring ongoing compliance and long-term cost efficiency. This combination improves asset life, uptime, and return on investment for industrial automation environments.
Get a Quick Quote for a Eaton CVX100-480Y
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CVX100-480Y?
Enquire Now
FAQs
Install the CVX100-480Y in a suitable electrical panel by aligning it with the three-phase four-wire configuration and connecting L-L, L-N, L-G per the datasheet. Ensure the system voltage matches 220/380 V, 230/400 V, 240/415 V, or 277/480 V ratings. Fasten securely and confirm ground continuity for optimal surge suppression performance.
Yes. The device supports multiple voltage ratings including 230/400 V, as well as 220/380 V, 240/415 V, and 277/480 V. This makes it suitable for common European and international industrial installations, while maintaining a consistent three-phase, four-wire protection scheme with ground.
The CVX100-480Y provides a 100 kAIC surge rating, enabling rapid response to large transient events and protecting motor control centers from damaging spikes. This reduces motor and drive wear, minimizes unscheduled downtime, and improves mean time between failures in automated manufacturing lines.
The CVX100-480Y is UL 1449 listed, reflecting compliance with recognized safety standards for surge protection devices. This certification supports safe operation in industrial environments and helps meet broader reliability and safety requirements in procurement specifications.
With a 5-year warranty and UL 1449 approval, the CVX100-480Y delivers long-term protection with minimal maintenance. By preventing surge-related damage, facilities see lower repair costs, fewer outages, and improved uptime, translating to a favorable return on investment over the product lifecycle.
