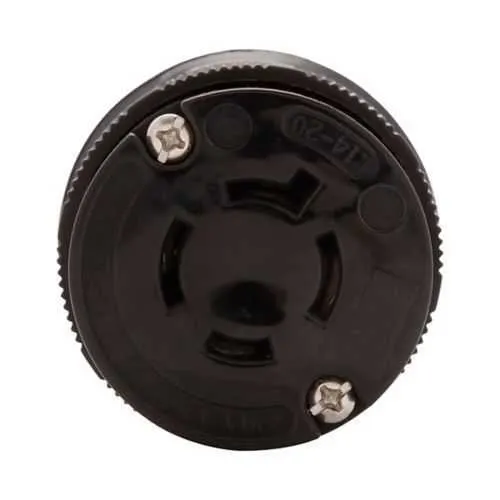

Eaton CWL1420CBK-BU Locking Connector - cULus NOM
Part Number: CWL1420CBK-BU
Quick Summary
Eaton CWL1420CBK-BU locking connector delivers secure, high-current L14-20 power connections for industrial equipment. In demanding environments, a loose connection can cause downtime and safety risks, so a rugged locking mechanism protects against accidental disconnections. RoHS compliant and cULus listed, this unit supports regulatory compliance and safer operation on factory floors. With back wiring for straightforward field installation and a bulk pack of 50, it reduces procurement touchpoints and labor costs. For OEMs and maintenance teams, this combination of reliability and ease of use translates to higher uptime and a lower total cost of ownership in rugged industrial deployments.
Product Information
Extended Description
CWL1420CBK-BU Eaton: Eaton Arrow Hart ultra grip locking connector, Bulk pack of 50, #14-8 AWG, 20A, Industrial, 125/250V,Black, Single, L14-20, Three-pole, Four-wire
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
CWL1420CBK-BU
UPC
032664673900
Product Length/Depth
17 in
Product Height
10 in
Product Width
8.75 in
Product Weight
16.875 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Special features
Bulk pack of 50
Type
Locking connector
Amperage Rating
20A
Voltage rating
125/250 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 4
Number Of Poles
Three-pole
Color
Black
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L14-20
Design type
Ultra grip
Face/body material
Nylon
Wiring Devices Buyer’s Guide
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - CWL1420CBK-BU
The ultra grip locking mechanism provides a secure, vibration-resistant connection that minimizes unplanned outages in motors, conveyors, and control panels, translating to improved equipment uptime and reduced service calls. The nylon body and face promote durability in harsh environments, with wide operating temperatures (-40 to 60 °C) that support both indoor and outdoor installations without sacrificing performance. Back wiring simplifies on-site wiring, enabling faster panel builds and cleaner terminations, which reduces labor time and wiring errors during installation. With a 20A, 125/250V rating and L14-20 NEMA configuration, this connector handles standard industrial loads while maintaining safe, compliant power distribution for three-pole, four-wire systems. The bulk pack of 50 delivers cost-effective stocking for distributors, OEMs, and maintenance teams, lowering unit cost per connection and ensuring readily available replacements. Robust certifications and the extra heavy-duty construction address common compliance concerns in regulated facilities, supporting consistent audits and traceability for industrial projects.
Get a Quick Quote for a Eaton CWL1420CBK-BU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CWL1420CBK-BU?
Enquire Now
FAQs
The CWL1420CBK-BU uses a back-wiring method, allowing conductors to be terminated from the rear of the connector. This simplifies field installation, improves termination consistency, and reduces the risk of strand damage during assembly in control panels and rugged equipment enclosures.
Yes. The connector specifies an allowable wire size of #16-8 AWG, enabling a broad range of common control and power conductors while maintaining the integrity of the locking mechanism and electrical performance in industrial settings.
The CWL1420CBK-BU is configured as an L14-20, three-pole, four-wire locking connector rated for 20A at 125/250V. This makes it suitable for high-current, non-noticeable miswiring scenarios typical in motors and industrial control circuits.
This connector is RoHS Compliant and cULus Listed NOM. RoHS ensures restricted substances limits are met for safer, environmentally responsible use, while cULus listing confirms conformance to recognized safety standards, helping with regulatory compliance and safety audits in manufacturing facilities.
Bulk packaging reduces procurement overhead, lowers per-unit pricing, and ensures readily available replacements for maintenance crews and original equipment manufacturers. It also simplifies stocking in service vans, warehouses, and panel assembly operations, improving uptime and reducing downtime related to part shortages.
