Eaton DB2324DS Dura-Blok Support Base with B22SH - 1000 lbs Load Cap
Part Number: DB2324DS
Quick Summary
DB2324DS is a Dura-Blok support base that anchors Eaton's B-Line rooftop assemblies for reliable heavy-load support. This solution addresses field challenges such as rust, misalignment, and underspecified bases that drive rework and downtime. There are no formal certifications listed for this model; Compliances and Certifications are Not Applicable, but the cast-iron construction and electro-plated finish deliver durable, corrosion-resistant performance. Designed for easy integration with Eaton B-Line strut channel systems, it supports scalable rooftop support configurations with a 1000‑lb capacity, helping projects meet uptime goals and extend service life.
Product Information
Extended Description

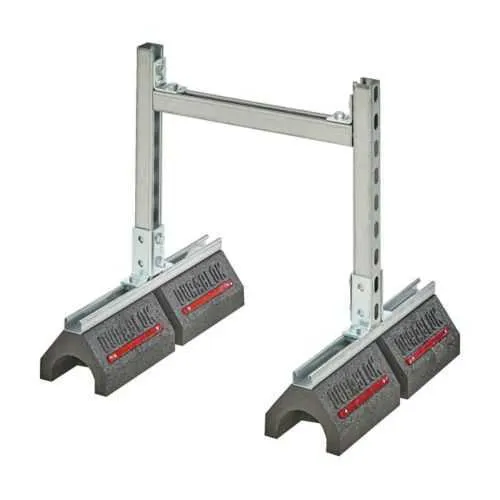

DB2324DS Eaton: Eaton B-Line series Dura-Blok support base with B22SH, 10.56" H x 20.75" L x 19.5" W, Cast iron, 1000 Lbs load cap, Electro-plated
Product Name
Eaton B-Line series Dura-Blok support base with B22SH
Catalog Number
DB2324DS
UPC
782051507218
Product Length/Depth
20.75 in
Product Height
10.56 in
Product Width
19.5 in
Product Weight
34.15 lb
Compliances
Not Applicable
Certifications
Not Applicable
Load capacity
1000 lbs
Finish
Electro-plated
Material
Cast iron
Feature: Cast iron base provides high rigidity under load. This translates to reduced deformation and better alignment of rooftop supports, lowering maintenance costs and downtime. Application: Ideal for heavy mechanical equipment in industrial rooftops where inline alignment and steady load transfer matter. Feature: Electro-plated finish offers corrosion resistance, extending outdoor lifespan and reducing repaint or replacement needs in exposed environments. Application: Suitable for rooftop installations where moisture, salt, or humidity exposure occurs. Feature: Dimensional footprint of 20.75 in L, 19.5 in W, and 10.56 in H with a 34.15 lb weight enables a compact, manageable base that fits standard B-Line layouts. Application: Simplifies field mounting alongside B22SH components for modular rooftop systems. Feature: 1000 lbs load capacity provides a generous safety margin for equipment and dynamic loads. Application: Supports rooftop HVAC, electrical gear, and other heavy components. Feature: Electro-plated finish and cast iron combination delivers durability with minimal ongoing maintenance over the system life. Application: Ideal for long-term rooftop deployments in industrial facilities.
Get a Quick Quote for a Eaton DB2324DS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DB2324DS?
Enquire Now
FAQs
DB2324DS is designed to integrate with Eaton’s B-Line Dura-Blok rooftop support systems, specifically pairing with the B22SH component. It provides a stable foundation for modular rooftop supports and ensures proper alignment with standard B-Line hardware. With a 1000 lb load capacity, it supports reliable, field-install-ready assemblies.
The DB2324DS features a 1000 lb load capacity and is manufactured from cast iron with an electro-plated finish, delivering robust strength and corrosion resistance suitable for outdoor rooftop installations.
The base measures 20.75 in long, 19.5 in wide, and 10.56 in tall, with a shipping weight of 34.15 lb, enabling straightforward handling and fitment in typical B-Line layouts.
There are no listed certifications for the DB2324DS; Compliances and Certifications are Not Applicable. The design uses cast iron with an electro-plated finish to offer durable, outdoor-ready performance without additional regulatory requirements.
Common applications include supporting heavy rooftop equipment such as HVAC and electrical gear within Eaton B-Line Dura-Blok systems, providing stable foundations, easy integration with B22SH components, and reliable load transfer for industrial facilities.
