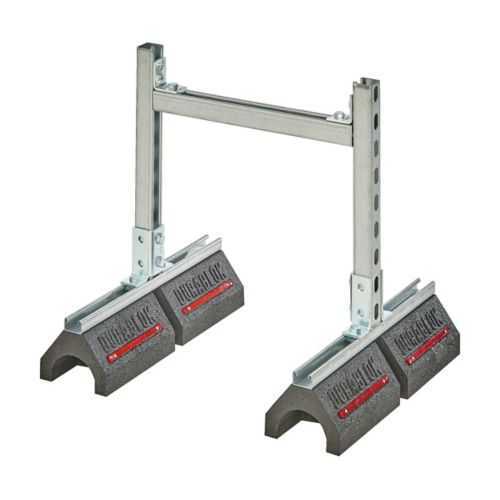

Eaton DB2924DS Dura-Blok support base - 1000 lbs load cap
Part Number: DB2924DS
Quick Summary
The Eaton DB2924DS is a Dura-Blok support base for rooftop support systems. Engineers rely on dependable bases to handle outdoor, high-load applications with minimal maintenance. Certifications are listed as Not Applicable, but the unit features cast-iron construction and an electro-plated finish that deliver robust durability in harsh environments. This model complements Eaton's B-Line series and strut-channel ecosystems, enabling scalable installations and streamlined procurement. By pairing with B22SH components, it supports reliable, code-conscious rooftop support solutions while improving installation efficiency and lifecycle costs.
Product Information
Extended Description
DB2924DS Eaton: Eaton B-Line series Dura-Blok support base with B22SH, 10.56" H x 26.75" L x 19.5" W, Cast iron, 1000 Lbs load cap, Electro-plated
Product Name
Eaton B-Line series Dura-Blok support base with B22SH
Catalog Number
DB2924DS
UPC
782051507225
Product Length/Depth
26.75 in
Product Height
10.56 in
Product Width
19.5 in
Product Weight
35.84 lb
Compliances
Not Applicable
Certifications
Not Applicable
Load capacity
1000 lbs
Finish
Electro-plated
Material
Cast iron
Feature → Business Impact → Application: Dura-Blok engineering paired with B22SH compatibility provides a stable, secure mount that reduces field adjustments and rework, delivering quicker commissioning and long-term reliability for rooftop support systems in commercial buildings. Feature → Corrosion-resistant electro-plated finish on cast iron (durability in outdoor environments) translates to lower maintenance costs and longer service life for HVAC, electrical, and solar installations. Feature → Precise dimensions at 26.75 in L, 10.56 in H, and 19.5 in W create a predictable footprint, simplifying layout planning and compatibility with Eaton B-Line strut channels. Feature → 1000 lbs load capacity ensures capability for heavy equipment and dynamic loads, enabling safer roof-top configurations with fewer support revisions. Feature → UPC 782051507225 and cataloging ease support efficient procurement and inventory control in procurement workflows. Feature → Not Applicable certifications reflect product labeling but do not compromise performance, while high-quality materials guarantee robust performance in rooftop supports for industrial facilities.
Get a Quick Quote for a Eaton DB2924DS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DB2924DS?
Enquire Now
FAQs
The DB2924DS is designed for Eaton B-Line Dura-Blok rooftop support systems and pairs with B22SH components. It integrates with standard Eaton strut-channel layouts to simplify alignment, mounting, and retrofits on existing roof-top support frameworks.
The base features 26.75 in length, 10.56 in height, and 19.5 in width with a 35.84 lb weight and a load capacity of 1000 lbs. These metrics support stable installations for heavy rooftop equipment while accommodating typical B-Line channel footprints.
Yes. The cast-iron body with an electro-plated finish provides corrosion resistance suitable for outdoor rooftop environments. Its 1000 lbs load capacity supports weather-rated equipment while minimizing maintenance needs.
The DB2924DS offers a predictable footprint and compatible fittings with B-Line strut channels, reducing field adjustments and rework. The electro-plated finish and durable cast-iron construction contribute to lower maintenance costs and longer service life in rooftop applications.
Official documentation includes the Dura-Blok rooftop supports brochure, the BR300001EN catalog, and the Eaton Specification Sheet for DB2924DS. Access the files via Eaton's product downloads: brochure, catalogs, and the DB2924DS datasheet.
