Eaton DB4124DS Dura-Blok base - 1000 lb capacity
Part Number: DB4124DS
Quick Summary
DB4124DS is a Dura-Blok support base designed for Eaton B-Line rooftop support systems in industrial facilities. This component addresses the common challenge of securing heavy equipment on exposed roofs where wind loads and misalignment can compromise safety. While the dataset shows certifications as Not Applicable, the Dura-Blok family typically aligns with standard electrical and mechanical safety practices for structural supports. Using this base helps ensure stable, corrosion-resistant mounting with straightforward installation. In practice, it supports efficient installation workflows and reduces site rework, contributing to lower total-cost-of-ownership for rooftop mechanical systems.
Product Information
Extended Description

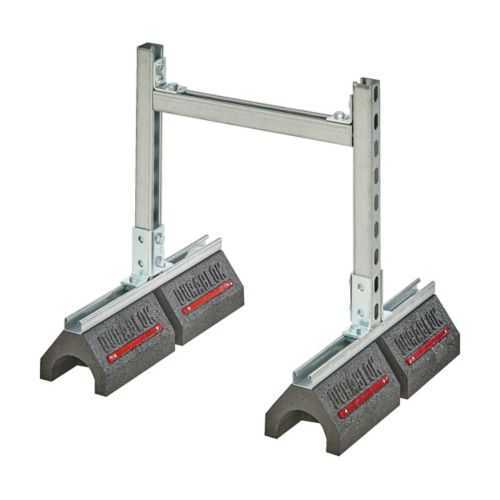

DB4124DS Eaton: Eaton B-Line series Dura-Blok support base with B22SH, 10.56" H x 38.75" L x 19.5" W, Cast iron, 1000 Lbs load cap, Electro-plated
Product Name
Eaton B-Line series Dura-Blok support base with B22SH
Catalog Number
DB4124DS
UPC
782051507232
Product Length/Depth
38.75 in
Product Height
10.56 in
Product Width
19.5 in
Product Weight
39.25 lb
Compliances
Not Applicable
Certifications
Not Applicable
Load capacity
1000 lbs
Finish
Electro-plated
Material
Cast iron
Feature: 1000 lb load capacity provides a robust anchor for rooftop equipment, reducing the risk of movement under wind or dynamic loads. Benefit: Improves safety, uptime, and predictable performance in rooftop installations. Application: Suitable for mounting HVAC units, electrical disconnects, and mechanical subassemblies on flat or slightly pitched roofs. Feature: Cast iron construction with an electro-plated finish delivers durability and corrosion resistance in harsh outdoor environments. Benefit: Longer service life and lower maintenance costs in industrial settings. Application: Ideal for outdoor rooftop supports in coastal or urban atmospheres where exposure is a concern. Feature: Dimensions of 38.75 in L, 10.56 in H, 19.5 in W with a weight around 39.25 lb offer rigidity without excessive handling difficulty. Benefit: Easier site handling, precise fit with B22SH hardware, and streamlined field assembly. Application: Works with standard B-Line strut channels for quick installation. Feature: Compatibility with B22SH brackets simplifies procurement and reduces part variety. Benefit: Faster project timelines and fewer installation errors. Application: Rooftop mounting for diverse equipment types within Eaton’s B-Line family. Feature: Electro-plated finish enhances protection against corrosion and wear. Benefit: Lower lifecycle costs through reduced repainting and protective maintenance. Application: Long-term outdoor deployments across industrial facilities.
Get a Quick Quote for a Eaton DB4124DS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DB4124DS?
Enquire Now
FAQs
DB4124DS is designed to work with Eaton B-Line B22SH components as part of the Dura-Blok rooftop support family. It mounts to standard strut channels and aligns with B22SH hardware to create a stable base on flat or gently pitched roofs. Proper alignment ensures predictable load paths and minimizes field adjustment needs.
DB4124DS provides a 1000 lb load capacity and is constructed from cast iron, finished with an electro-plated coating for enhanced corrosion resistance. Its dimensions are 38.75 inches long, 10.56 inches high, and 19.5 inches wide, with an approximate weight of 39.25 pounds, enabling robust support without excessive mass.
DB4124DS is ideal for rooftop mounting of HVAC equipment, electrical disconnects, and mechanical subassemblies in industrial facilities. Its combination of high load capacity, strong cast-iron construction, and compatibility with B-Line strut systems makes it well-suited for reliable support on flat or mildly pitched roofs with space constraints.
The provided data lists certifications and compliances as Not Applicable. For regulatory alignment, consult Eaton’s official Dura-Blok datasheets and brochures, which typically reference standard industry practices and any project-specific certifications. Always verify required standards (such as CE or UL) with the project’s procurement specs and the Eaton product literature.
Using DB4124DS supports a favorable ROI by reducing field rework, enabling faster installations with compatible B22SH hardware, and delivering long-term durability through electro-plated cast-iron construction. The result is lower lifecycle maintenance, fewer roof penetrations, and improved wind-load performance for rooftop systems, translating to lower total cost of ownership over time.
