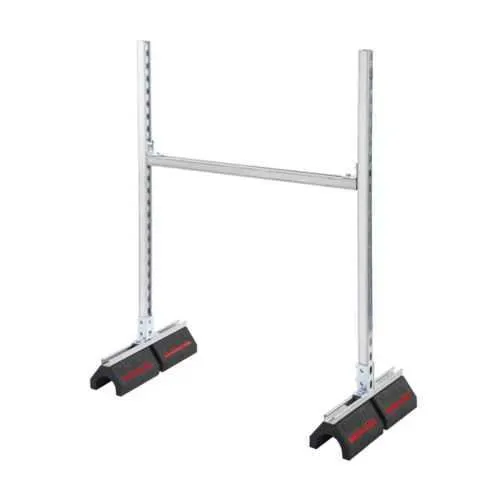

Eaton DB4136DS Dura-Blok Base - 1000 lbs Load Capacity
Part Number: DB4136DS
Quick Summary
Eaton DB4136DS is a Dura-Blok base designed for rugged rooftop mounting in industrial facilities. Many rooftop installations struggle with corrosion, misalignment, and downtime from undersized supports. This base delivers stiffness and durability, reducing maintenance and downtime while supporting heavy equipment with confidence. Notable specs include cast iron construction, electro-plated finish, 1000 lb load capacity, and seamless compatibility with B22SH. While certifications are not listed for this model, it is designed to integrate with Eaton's B-Line strut ecosystem, enabling straightforward procurement and installation. For procurement and installation planning, this base pairs with the Eaton B-Line family and is ideal for OEMs and maintenance teams seeking reliable, scalable rooftop support. It also supports efficient inventory management and faster commissioning for mission-critical applications.
Product Information
Extended Description
DB4136DS Eaton: Eaton B-Line series Dura-Blok support base with B22SH, 10.56" H x 38.75" L x 31.5" W, Cast iron, 1000 Lbs load cap, Electro-plated
Product Name
Eaton B-Line series Dura-Blok support base with B22SH
Catalog Number
DB4136DS
UPC
782051507270
Product Length/Depth
38.75 in
Product Height
10.56 in
Product Width
31.5 in
Product Weight
40.95 lb
Compliances
Not Applicable
Certifications
Not Applicable
Load capacity
1000 lbs
Finish
Electro-plated
Material
Cast iron
Dura-Blok base uses cast iron to provide a rigid mounting platform, resulting in improved load transfer and reduced vibration in rooftop applications. This translates to safer operation, longer equipment life, and fewer service interruptions in harsh industrial environments. The electro-plated finish adds corrosion resistance, allowing reliable outdoor performance and lower maintenance costs over the system’s lifecycle. With a 1000 lb load capacity, the DB4136DS supports heavy rooftop equipment with a single, stable base, reducing the need for multiple secondary supports and simplifying procurement. Its footprint of 38.75 in L by 31.5 in W with a 10.56 in height ensures proper alignment with B-Line strut channels and B22SH hardware, simplifying installation and future scalability. Compatibility with Eaton’s B-Line family enables faster commissioning and consistent performance across projects, while documentation and datasheets streamline field engineering and setup. Note that some environments may require additional regulatory review; this unit lists Not Applicable for formal certifications, so spec-fit and site conditions should be verified during planning.
Get a Quick Quote for a Eaton DB4136DS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DB4136DS?
Enquire Now
FAQs
DB4136DS is designed for Eaton B-Line rooftop installations and works with standard B-Line strut channels and the B22SH mounting hardware. For field assembly, use compatible fasteners per the Eaton installation datasheet and ensure proper alignment with the strut grid to achieve the full 1000 lb load capacity.
The base measures 38.75 inches in length, 31.5 inches in width, and 10.56 inches in height, with a weight of approximately 40.95 pounds. It has a 1000 pound load capacity, cast iron construction, and an electro-plated finish designed for durability in industrial rooftop environments.
Yes. The DB4136DS is built for outdoor rooftop applications with a cast iron base and electro-plated finish that resist corrosion. It is designed to integrate with B-Line components, offering robust support for heavy equipment in exposed environments, provided site conditions meet mounting and wind-load requirements.
This model lists Not Applicable for formal certifications. While it does not show SIL, CE, or IP certifications in the provided specs, it is designed to Eaton’s B-Line system standards. For regulated environments, verify compliance through the Eaton product team and project-specific requirements.
The combination of cast iron construction and an electro-plated finish yields high durability and corrosion resistance, extending service life in demanding rooftops. This reduces maintenance frequency and downtime, lowers lifecycle costs, and simplifies inventory with a single, robust foundational base suitable for scalable rooftop support projects.
