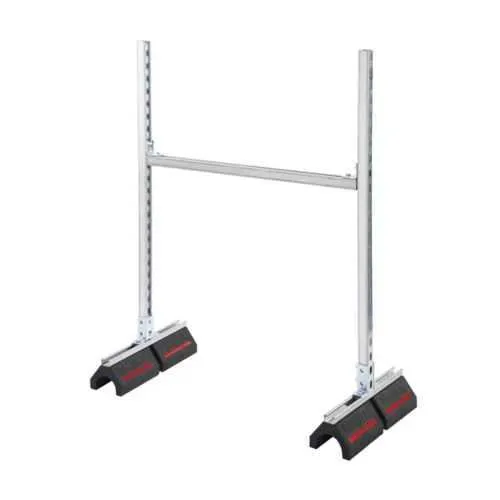

Eaton DB5318DS Dura-Blok support base - 1000 lb
Part Number: DB5318DS
Quick Summary
DB5318DS is a Dura-Blok support base for rooftop support systems in commercial buildings. This Eaton solution addresses common pains like corrosion, heavy loads, and complex installations that slow project timelines. The dataset notes no CE, SIL, or IP certifications listed for this unit, but the design relies on a cast-iron body with an electro-plated finish and a 1000 lb load rating to ensure reliability in harsh environments. By pairing with the B-Line series and standard strut channels, it delivers predictable alignment and fast assembly. The result is a durable, maintenance-friendly rooftop support that reduces downtime while improving safety and long-term total cost of ownership for facility managers and installers.
Product Information
Extended Description
DB5318DS Eaton: Eaton B-Line series Dura-Blok support base with B22SH, 10.56" H x 50.75" L x 13.5" W, Cast iron, 1000 Lbs load cap, Electro-plated
Product Name
Eaton B-Line series Dura-Blok support base with B22SH
Catalog Number
DB5318DS
UPC
782051507201
Product Length/Depth
50.75 in
Product Height
10.56 in
Product Width
13.5 in
Product Weight
41.8 lb
Compliances
Not Applicable
Certifications
Not Applicable
Load capacity
1000 lbs
Finish
Electro-plated
Material
Cast iron
Feature: Cast iron construction with an electro-plated finish. Business Impact: Delivers superior corrosion resistance and durability in harsh rooftop environments, reducing maintenance cycles and replacement costs. Application: Ideal for long-term outdoor installations on commercial buildings and industrial facilities. Feature: 1000 lb load capacity. Business Impact: Supports heavy rooftop equipment with margin for future upgrades, improving uptime and reducing retrofit costs. Application: Mounts supporting structures, skylights, or HVAC components on B-Line strut systems. Feature: Compatible with Eaton B-Line series and B22SH bracket. Business Impact: Streamlines procurement and installation with standardized components, cutting field engineering time. Application: Simplifies kit-and-strap installations on standard strut channels. Feature: Precise dimensions (50.75 in L x 13.5 in W x 10.56 in H). Business Impact: Facilitates accurate space planning and alignment with existing rooftop layouts, minimizing fit issues. Application: Used in rooftop support assemblies where exact footprint is required. Feature: Not Applicable compliances/certifications listed. Business Impact: Encourages verification via manufacturer datasheets for project-specific regulatory needs while still offering a robust mechanical base. Application: Use in systems where certification scope is determined by end-use environment. Feature: Maintenance-friendly design and straightforward installation. Business Impact: Reduces installation labor and lifecycle maintenance costs, extending service life. Application: Suitable for ongoing facility management programs seeking predictable performance.
Get a Quick Quote for a Eaton DB5318DS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DB5318DS?
Enquire Now
FAQs
DB5318DS is designed to work with Eaton B-Line series strut channel systems and B22SH brackets, enabling fast integration with standard mounting hardware and predictable alignment across rooftop installations.
DB5318DS provides a 1000 lb load capacity and is manufactured from cast iron with an electro-plated finish, delivering high load support and corrosion resistance in outdoor environments.
The base measures 50.75 inches long, 13.5 inches wide, and 10.56 inches high, with a weight of 41.8 pounds, enabling precise space planning for rooftop apps.
The provided data lists Not Applicable for compliances and certifications. Review Eaton specification sheets for project-specific regulatory requirements and confirm with your QA/Compliance team.
Key benefits include robust cast-iron construction with an electro-plated finish for longevity, compatibility with standard B-Line components for fast installs, and a design that supports high-capacity loads with minimal maintenance.
