Eaton DB5324DS Dura-Blok Support Base - 1000 Lbs Load Capacity
Part Number: DB5324DS
Quick Summary
Eaton DB5324DS Dura-Blok support base provides rugged rooftop support for B-Line systems. Installers often wrestle with uncertain load paths and corrosion risk on exposed roofs. There are no formal certifications listed for this model, while its electro-plated finish and cast iron construction deliver rugged, long‑life performance. Designed for the Eaton B-Line rooftop supports, it streamlines mounting workflows and reduces field errors. With a 1000 lb load rating and substantial footprint, the base distributes weight evenly across rooftop decks, boosting safety and compliance during installation. In addition to rugged cast iron construction and electro-plated finish, the design supports long service life in harsh outdoor environments. This combination helps facilities reduce maintenance frequencies and total cost of ownership while meeting site-specific mounting needs.
Product Information
Extended Description

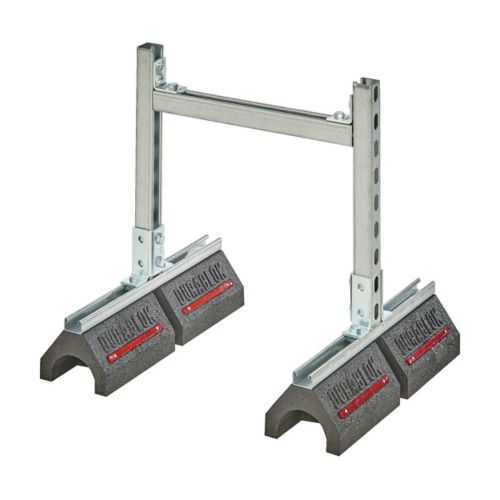

DB5324DS Eaton: Eaton B-Line series Dura-Blok support base with B22SH, 10.56" H x 50.75" L x 19.5" W, Cast iron, 1000 Lbs load cap, Electro-plated
Product Name
Eaton B-Line series Dura-Blok support base with B22SH
Catalog Number
DB5324DS
UPC
782051507249
Product Length/Depth
50.75 in
Product Height
10.56 in
Product Width
19.5 in
Product Weight
42.65 lb
Compliances
Not Applicable
Certifications
Not Applicable
Load capacity
1000 lbs
Finish
Electro-plated
Material
Cast iron
Feature → Business Impact → Application: Dura-Blok design with B22SH compatibility reduces part count and simplifies mounting workflows, enabling faster rooftop installations and fewer misalignments on B-Line systems. This translates to lower labor costs and improved on-site safety during accessory integration for electrical and mechanical equipment. Application: suitable for rooftop supports in electrical, HVAC, and solar installations where B22SH compatibility and quick assembly are advantageous. Feature → Business Impact → Application: 50.75 in length by 19.5 in width by 10.56 in height provides a broad, stable footprint that distributes loads evenly across roof decks. Impact: reduces wind uplift risk and equipment settlement, improving overall system reliability. Application: ideal for mounting condensers, enclosures, and similar rooftop components.Feature → Business Impact → Application: 1000 lb load capacity creates a generous safety margin for heavy rooftop assemblies, enabling design engineers to specify fewer intermediate supports and simplify routing. Impact: enhances installation efficiency and compliance with design loads. Application: supports HVAC cabinets, electrical gear, and modular rooftop racks.Feature → Business Impact → Application: Cast iron construction delivers rugged mechanical integrity with resistance to vibration and outdoor wear. Impact: longer service life and reduced maintenance cycles. Application: outdoor, vibration-prone rooftop environments in industrial facilities.Feature → Business Impact → Application: Electro-plated finish provides corrosion resistance in harsh weather, reducing rust-related degradation. Impact: lowers maintenance costs and extends asset life. Application: outdoor rooftop supports exposed to rain, humidity, and salt spray.Feature → Business Impact → Application: 42.65 lb weight plus practical sizing eases handling and on-site positioning without heavy lifting equipment. Impact: reduces crane and rigging requirements, accelerating installation. Application: quick-turn rooftop projects and retrofit installs where space and access are limited.
Get a Quick Quote for a Eaton DB5324DS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DB5324DS?
Enquire Now
FAQs
To install DB5324DS with B22SH, align the B22SH interface with the Dura-Blok base, secure using the recommended fasteners, and verify the load path aligns with the roof deck. Refer to Eaton’s Dura-Blok brochure for step-by-step mounting sequences and torque guidelines to ensure proper support and wind-load compliance.
DB5324DS provides a rated load capacity of 1000 lbs. This rating guides the selection of equipment and supports on the rooftop, ensuring the combined weight and dynamic loads stay within safe limits. Plan for adequate safety margins and account for wind uplift and seismic considerations per local code.
Yes. The DB5324DS base is designed for rooftop support in B-Line systems and accommodates heavy rooftop equipment. Its large footprint and 1000 lb capacity make it suitable for HVAC condensers, electrical enclosures, and compatible mechanical installations on outdoor rooftops.
The provided data lists no formal certifications or compliances. Installers should verify project requirements with local codes and Eaton catalog guidance, and consider additional NRTL or industry-specific standards as needed for outdoor rooftop installations.
The electro-plated finish offers corrosion resistance, reducing rust and degradation in outdoor environments. This translates to fewer maintenance interventions and a longer asset life, contributing to lower total cost of ownership for rooftop support systems.
