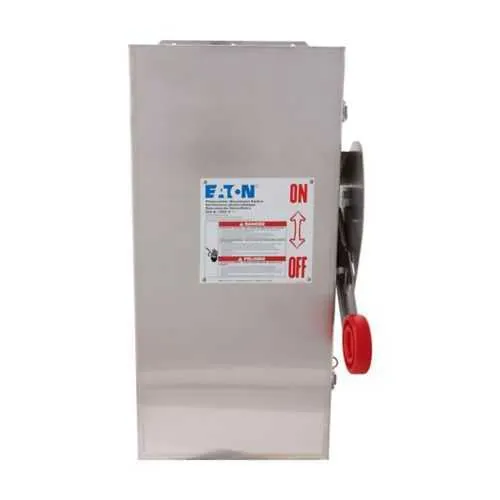

Eaton DCG1101UXM DC Disconnect - NEMA 4X 1000V
Part Number: DCG1101UXM
Quick Summary
The Eaton DCG1101UXM heavy duty DC disconnect provides safe, reliable isolation for solar PV systems up to 1000 VDC. In outdoor or harsh industrial environments, corrosion resistance and dependable grounding are essential to prevent downtime. It carries NEC 690 per UL 1741 and UL 98B certifications, and uses a NEMA 4X enclosure of 316 stainless steel for extended outdoor service. With a 30 A, 1 circuit configuration and grounded isolated return, installation aligns with DC PV wiring practices while minimizing fault propagation. This combination delivers lower maintenance costs, faster service, and stronger regulatory compliance for critical solar installations.
Product Information
Extended Description
DCG1101UXM Eaton: Eaton heavy duty DC disconnect,30A,NEMA 4X,Grade 316 stainless steel,Non-fusible,Grounded,#14-#2 AWG lug capacity, #14-#2 AWG solid return,1,Isolated return,DC photovoltaic systems,1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG1101UXM
UPC
786685557755
Product Length/Depth
10.22 in
Product Height
14.14 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
1
Ground
Grounded
Maximum voltage
1000 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-#2 AWG solid return
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
DC photovoltaic systems Heavy duty
Protection
Non-fusible
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DCG1101UXM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 30A amperage rating with a single non-fusible circuit, grounded with an isolated return. Business Impact: reduces BOM complexity while providing a predictable DC fault path, improving safety during maintenance and commissioning. Application: ideal for solar PV harnesses and outdoor DC strings requiring a robust isolation point. Feature: 1000 VDC system voltage rating. Business Impact: supports higher voltage configurations, reducing the number of disconnects and simplifying layout. Application: mid to large scale rooftop and ground mounted solar installations. Feature: NEMA 4X enclosure in 316 stainless steel. Business Impact: exceptional corrosion resistance and outdoor ingress protection, lowering maintenance needs and extending service life. Application: outdoor PV arrays and harsh climates. Feature: lug capacity for #14-#2 AWG conductors with solid return and isolated return. Business Impact: flexible wiring options with clean terminations, improving electrical performance and reducing field splices. Application: DC disconnect installations with mixed conductor sizes. Feature: certifications NEC 690 per UL 1741 and UL 98B, plus Eaton warranty. Business Impact: regulatory compliance and confident warranty coverage for project planning and ROI. Application: grid-tied and off grid solar projects seeking proven protection aligned to code.
Get a Quick Quote for a Eaton DCG1101UXM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG1101UXM?
Enquire Now
FAQs
Installers should note the unit supports #14-#2 AWG conductors and features a grounded with isolated return configuration. Mount the enclosure in a weatherproof, outdoor-rated location, ensure the NEMA 4X sealing is intact, and connect to the DC PV string per the UL 1741/NEC 690 requirements. No fusing is included, so plan protection upstream accordingly.
The DCG1101UXM is rated for 30 A and up to 1000 VDC, configured as a single non-fusible disconnect. This provides a straightforward isolation point for DC PV circuits, while upstream fusing or overcurrent protection remains the responsibility of the overall system design. The non-fusible design simplifies compliance and reduces component counts in appropriate applications.
Yes. The enclosure is NEMA 4X rated and constructed from 316 stainless steel, delivering superior corrosion resistance and weather sealing. This makes it well suited for outdoor solar installations, coastal or industrial environments, and other harsh conditions where durability and reliability are critical for uptime.
The unit features NEC 690 compliance under UL 1741 and UL 98B certifications, reinforcing suitability for solar DC protection installations. These certifications help ensure code compliance, interoperability with other PV components, and documented safety performance, which simplifies procurement and reduces regulatory risk for projects.
Maintenance is typically low due to the rugged 316 stainless steel NEMA 4X enclosure and solid-state grounding design. The investment pays back through reduced downtime, fewer field faults, and longer service life in outdoor PV deployments. The unit also aligns with Eaton’s warranty policy, supporting predictable lifecycle costs and service planning.
