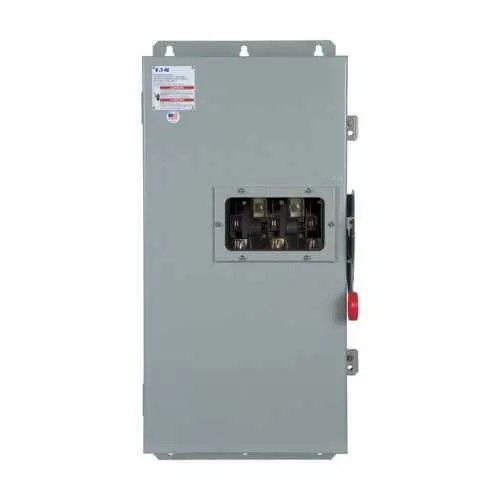

Eaton DCG1154UDM-000W DC Disconnect - UL Listed
Part Number: DCG1154UDM-000W
Quick Summary
The Eaton DCG1154UDM-000W heavy duty DC disconnect provides safe, rapid isolation for 1500 VDC power systems. Maintenance teams often face outages and arc-flash exposure during servicing, making reliable disconnection essential. UL Listed protection and a NEMA 12/3R painted galvanized steel enclosure support regulatory compliance and durable operation in harsh industrial environments. With a 200 A rating and a single 1‑circuit configuration, it simplifies high‑voltage DC distribution design while reducing footprint and installation complexity. Designed for solar, storage, and general factory DC distributions, it complements Eaton protection devices and supports safer, more maintainable systems.
Product Information
Extended Description
DCG1154UDM-000W Eaton: Eaton, 1500 VDC 1 Ckt, 200 A, Non-Fusible, N12 3R,.
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG1154UDM-000W
UPC
786689791858
Product Length/Depth
7.27 in
Product Height
35.38 in
Product Width
16.95 in
Product Weight
58.2 lb
Certifications
UL Listed
Type
DC ground
Amperage Rating
200 A
Number of circuits
1
Protection
Non-fusible
Voltage rating
1500 VDC
Enclosure
NEMA 12/3R
Enclosure material
Painted galvanized steel
Window
Upper
Protection
Non-fusible
Energy transition switches brochure - 1500 Vdc
Double Up on Safety
Double Up on Safety
Eaton switches fused string multi-input application
Eaton switches fused string multi-input application
Feature: The DC disconnect is rated for 200 A at 1500 VDC with a single circuit and non-fusible protection. Business Impact: this configuration enables reliable, clear isolation with minimal arc energy risk during maintenance, translating to shorter downtime and lower incident costs. Application: ideal for solar PV strings, energy storage modules, and DC distribution trunks in industrial plants. Feature: UL Listed certification and a NEMA 12/3R enclosure with painted galvanized steel construction. Business Impact: ensures compliance with electrical codes, corrosion resistance, and long service life in harsh environments. Application: suitable for control rooms, outdoor racks, and dusty or washdown facilities where DC protection must endure demanding conditions. Feature: Enclosure dimensions and window type (Upper) provide easy visual status checks and straightforward mounting in standard racks. Business Impact: reduces installation time and avoids misidentification of circuit status, improving safety and efficiency. Application: retrofit and new builds in industrial DC power distribution, including data center backup and manufacturing lines. Feature: Robust, field-friendly design with 1 circuit and non-fusible protection. Business Impact: simplifies maintenance planning, minimizes spare parts diversity, and enhances operator confidence during live operations. Application: end-to-end DC protection across energy, manufacturing, and utility-scale projects. Feature: Compact footprint and compatibility with standard protection ecosystems. Business Impact: lowers total cost of ownership by easing integration with existing Eaton devices and reducing space needs in control cabinets. Application: scalable solutions for growing solar, storage, and industrial DC networks.
Get a Quick Quote for a Eaton DCG1154UDM-000W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG1154UDM-000W?
Enquire Now
FAQs
This unit is designed for standard enclosure integration in industrial DC power distributions. Ensure sufficient clearance for 1500 VDC insulation, mount within compatible enclosures (NEMA 12/3R rated), and align mounting holes with common panel layouts. Check that the overall dimensions (width, height, depth) fit your cabinet footprint and that you observe proper lockout/tagout procedures during installation.
Key specs include a 200 A amperage rating, 1500 VDC voltage rating, single 1‑circuit configuration, and non-fusible protection. Safety features center on robust isolation with minimal arc energy, UL Listed certification for compliance, and a NEMA 12/3R enclosure for durable protection in tough environments.
Yes. The 1500 VDC, 200 A, 1‑circuit, non‑fusible design is well suited for solar PV strings, energy storage modules, and standalone DC distribution trunks in manufacturing facilities. Its UL Listing and rugged NEMA enclosure help ensure safe operation in outdoor or harsh indoor conditions, while maintaining straightforward integration with DC protection schemes.
The primary certification is UL Listed, indicating compliance with recognized safety standards. The enclosure carries a NEMA 12/3R rating, offering dust, oil, and water resistance suitable for industrial environments. The device is designed for 1500 VDC systems and non‑fusible protection, aligning with common industrial and energy storage safety practices.
The non‑fusible, single‑circuit design reduces maintenance complexity and fault handling, while UL Listing and a durable galvanized enclosure decrease replacement and service costs. The unit’s robust construction minimizes downtime in high‑duty DC networks for solar, storage, and factories, delivering a favorable total cost of ownership and faster return on investment.
