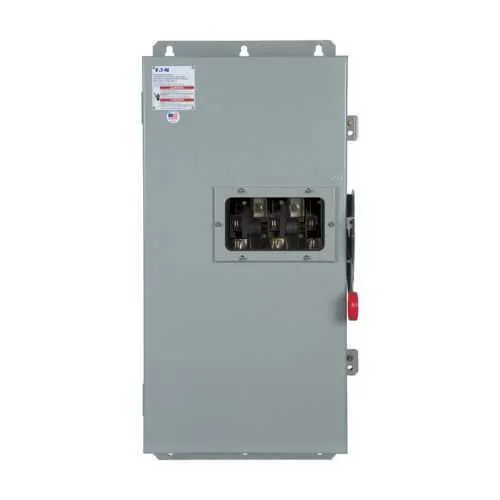

Eaton DCG1154UWM-000W DC Disconnect - UL Listed
Part Number: DCG1154UWM-000W
Quick Summary
Eaton heavy duty DC disconnect is designed to safely isolate 1500 VDC circuits in industrial power systems. Engineers often struggle with reliable DC isolation while minimizing arc-flash risk and unplanned downtime. This device leverages a non-fusible, single-circuit design with a 200 A rating and a 1500 VDC capability to deliver predictable, fail-safe operation in harsh environments. UL Listed certification supports regulatory compliance, while a NEMA 4X stainless steel enclosure provides corrosion resistance and washdown compatibility. The compact form and upper window enable straightforward installation and status monitoring, reducing maintenance cycles. For procurement and field service, this solution aligns with safety standards and supports scalable DC distribution in solar, storage, and industrial applications.
Product Information
Extended Description
DCG1154UWM-000W Eaton: Eaton, 1500 VDC 1 Ckt, 200 A, Non-Fusible, N4X SS,,
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG1154UWM-000W
UPC
786689791865
Product Length/Depth
7.27 in
Product Height
35.38 in
Product Width
16.95 in
Product Weight
57.1 lb
Certifications
UL Listed
Type
DC ground
Amperage Rating
200 A
Number of circuits
1
Protection
Non-fusible
Voltage rating
1500 VDC
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Window
Upper
Protection
Non-fusible
Energy transition switches brochure - 1500 Vdc
Double Up on Safety
Double Up on Safety
Eaton switches combiner box application
Eaton switches combiner box application
Feature: High-voltage capability and current rating. Business Impact: Enables safe isolation of 1500 VDC systems at 200 A, reducing arc-flash exposure and enabling quicker maintenance. Application: Solar, energy storage, DC bus, industrial power distribution. Feature: Non-fusible design. Business Impact: Minimizes fuse-related downtime and spare-parts inventory while enhancing system reliability. Application: Utility-scale DC links and critical DC feeders. Feature: NEMA 4X enclosure in 304 stainless steel. Business Impact: Offers robust corrosion resistance and washdown compatibility, extending service life in harsh environments. Application: Outdoor installations and dirty or humid factories. Feature: Upper window for status visibility. Business Impact: Facilitates rapid diagnostics and safer shut-down procedures, shortening service windows. Application: Field service and remote monitoring. Feature: UL Listed certification. Business Impact: Supports regulatory compliance and procurement confidence across projects. Application: Safety-critical electrical installations. Feature: Compact footprint and clear dimensions. Business Impact: Predictable fit within existing racks and cabinets, easing retrofits and installations. Application: Replacements and new builds in confined spaces.
Get a Quick Quote for a Eaton DCG1154UWM-000W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG1154UWM-000W?
Enquire Now
FAQs
The DCG1154UWM-000W is a single-circuit, 200 A, 1500 VDC disconnect designed for DC ground systems and can retrofit into standard layouts that accept mid-size disconnects. Its 16.95 in width, 35.38 in height, and 7.27 in depth provide a predictable footprint, while the NEMA 4X enclosure supports rugged mounting in both indoor and outdoor installations.
Key safety features include a non-fusible construction that minimizes arc-fault risk during switching, a DC ground configuration for safe potential referencing, and UL Listed certification to ensure compliance with electrical safety standards. The upper window enables quick visual status assessment, reducing on-site switching mistakes during maintenance.
Yes. With a 1500 VDC rating and 200 A capacity in a single circuit, this disconnect is well-suited for solar PV arrays, energy storage systems, and other high-voltage DC distribution scenarios. Its stainless steel, washdown-ready enclosure makes it resilient in outdoor or dusty environments, aligning with typical solar and storage infrastructure requirements.
Installers should ensure proper mounting clearances and secure terminal connections per Eaton guidelines. The 304 stainless steel enclosure provides corrosion resistance and weathering protection, so position the unit to minimize exposure to direct impact while maintaining access for inspection through the upper status window.
Non-fusible disconnects require less fuse maintenance, but periodic inspection of terminal connections, enclosure integrity, and the status window is advised. Since the unit is UL Listed and built in a durable NEMA 4X enclosure, routine checks focus on mounting security, insulation condition, and any signs of corrosion or contamination in harsh environments.
