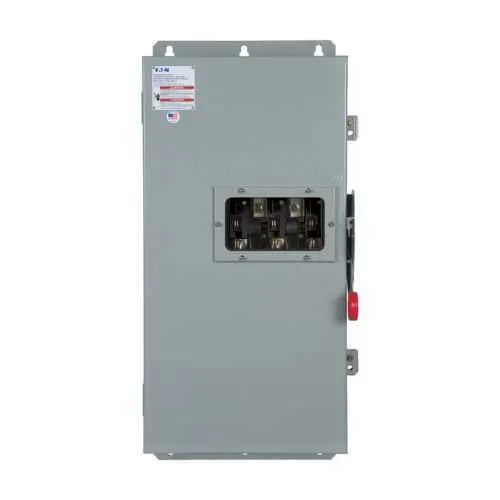

Eaton DCG1155UDM-000W DC Disconnect - UL Listed
Part Number: DCG1155UDM-000W
Quick Summary
DCG1155UDM-000W is a heavy-duty DC disconnect designed for safe, reliable isolation of 1500 VDC circuits in industrial power systems. Maintenance and retrofit work in high-voltage DC networks often drive uncertain shutdowns and downtime. UL Listed certification supports regulatory compliance, while the NEMA 12/3R enclosure delivers rugged protection in dusty or wet industrial environments. This 400 A, 1-circuit station uses a painted galvanized steel enclosure to reduce installation complexity and support scalable DC distribution in modern factories, energy storage facilities, and automated manufacturing lines. For operators and engineers, it combines robust protection with straightforward integration into existing electrical protection and circuit control architectures.
Product Information
Extended Description
DCG1155UDM-000W Eaton: Eaton, 1500 VDC 1 Ckt, 400 A, Non-Fusible, N12 3R,,.
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG1155UDM-000W
UPC
786689791735
Product Length/Depth
8.15 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
135.3 lb
Certifications
UL Listed
Type
DC ground
Amperage Rating
400 A
Number of circuits
1
Protection
Non-fusible
Voltage rating
1500 VDC
Enclosure
NEMA 12/3R
Enclosure material
Painted galvanized steel
Window
Upper
Protection
Non-fusible
Energy transition switches brochure - 1500 Vdc
Switching Devices Flex Center
Switching Devices Flex Center
Eaton switches combiner box application
Eaton switches combiner box application
Feature: High-current, single-circuit design supports 400 A in a non-fusible configuration. Business Impact: Simplifies DC power distribution, minimizes wiring complexity, and reduces arc-flash risk during maintenance. Application: Ideal for industrial DC feeders in manufacturing and energy storage systems. Feature: 1500 VDC rating enables safe operation on high-voltage DC buses. Business Impact: Expands application scope to PV, battery storage, and EV infrastructure without adding additional components. Application: Useful in solar plus storage plants and high-voltage DC distribution centers. Feature: NEMA 12/3R, painted galvanized steel enclosure. Business Impact: Indoor, rugged protection against dust, moisture and harsh factory environments; lowers enclosure degradation and service calls. Application: Plant floors, control rooms, and harsh-grade assembly lines. Feature: UL Listed certification. Business Impact: Improves compliance posture, accelerates safety approvals, and reduces qualification time for new installations. Application: Required for regulated industrial environments and customer audits. Feature: Visual access with upper window and compact footprint. Business Impact: Easier inspection and faster troubleshooting; predictable footprint aids BIM and space planning. Application: Control cabinets and space-constrained DC distribution panels. Feature: Non-fusible protection simplifies maintenance. Business Impact: Lower maintenance complexity and faster response during routine testing; enhances reliability of critical DC feeders. Application: Industrial power distribution with reduced outage risk.
Get a Quick Quote for a Eaton DCG1155UDM-000W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG1155UDM-000W?
Enquire Now
FAQs
The DCG1155UDM-000W is designed for indoor high-voltage DC distribution, handling 1500 VDC and up to 400 A in a single 1-circuit arrangement. It fits control rooms, manufacturing floors, and energy storage installations where reliable isolation, safety, and UL-listed compliance are required. Its NEMA 12/3R enclosure supports rugged indoor environments, while its non-fusible design simplifies maintenance planning.
UL Listed signifies compliance with recognized safety standards, reducing regulatory risk and accelerating approvals during audits and new installations. For maintenance planning, UL listing provides confidence in component reliability and documented safety performance, enabling safer servicing of high-voltage DC systems without requiring extensive requalification for each project.
Yes. The DCG1155UDM-000W is a single-circuit, non-fusible DC disconnect designed for straightforward integration into DC distribution schemes. Its 1500 VDC rating and 400 A capacity align with typical high-voltage DC buses, and the NEMA 12/3R enclosure simplifies cabinet layout. Always verify conductor sizing, enclosure space, and protective clearances per applicable electrical codes during commissioning.
The NEMA 12/3R enclosure is intended for indoor, rugged environments with protection against dust and moisture. The painted galvanized steel construction offers durability in factory floors and control rooms. When planning installation, ensure proper indoor mounting clearances, secure fastening to a stable surface, and alignment with service access windows for maintenance checks. Outdoor use or exposure to weather requires alternative enclosures or protections.
Expect improved uptime due to reliable high-voltage isolation and a non-fusible design that reduces maintenance complexity. The UL Listed rating supports faster regulatory clearance, while the sturdy enclosure minimizes corrosion-related downtime. Although initial cost is higher than basic disconnects, long-term savings come from reduced outages, safer maintenance, and easier system upgrades in energy storage and manufacturing DC networks.
