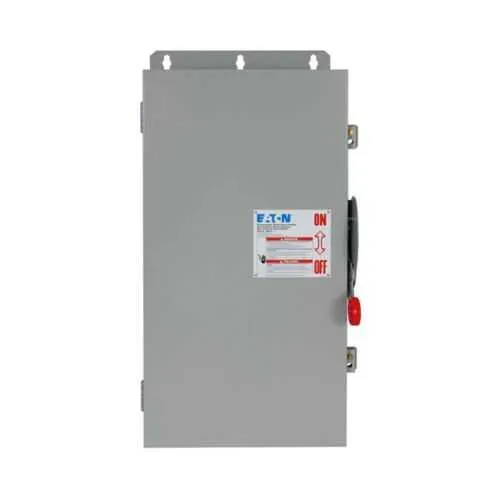

Eaton DCG2064UPM DC Disconnect - NEMA 4, UL 98B
Part Number: DCG2064UPM
Quick Summary
Eaton DCG2064UPM DC disconnect delivers safe, reliable power isolation for solar DC networks. Installers often wrestle with outdoor enclosures that corrode, complicate wiring, and delay commissioning. UL 98B, NEC 690 per UL 1741, and a NEMA 4 rating ensure safe outdoor operation and regulatory compliance. Designed for heavy-duty DC PV systems, it supports 300 kcmil conductors and isolated return, reducing field repairs and downtime while helping you meet code. This combination delivers measurable business value through improved uptime and streamlined maintenance in real-world solar installations.
Product Information
Extended Description
DCG2064UPM Eaton: Eaton heavy-duty DC disconnect,200A,Solar,Painted steel,Non-fusible,Grounded,In/Out(LC): 300 MCM-#6, In/Out(SR): 300 MCM-#6,600 Vdc,NEMA 4,2,Non-fusible,Isolated return,Two-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG2064UPM
UPC
786685624761
Product Length/Depth
11.63 in
Product Height
35.38 in
Product Width
16.54 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Type
DC disconnect/grounded system
Amperage Rating
200 A
Number of circuits
2
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): 300 kcmil-#6, In/Out(SR): 300 kcmil-#6
Number of poles
Two-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty safety Single-throw DC photovoltaic systems
Protection
Non-fusible
The DCG2064UPM is a two-pole, 200 A DC disconnect rated for 600 VDC, delivering reliable DC isolation for solar PV strings. This configuration helps meet NEC 690 and UL 1741 requirements while reducing fault propagation during maintenance and commissioning. It’s ideal for rooftop and ground-mounted solar installations that demand a durable, code-compliant DC disconnect switch for safe, uninterrupted operation. With a non-fusible design and an isolated-return configuration, the unit minimizes arc flash risk and simplifies troubleshooting by clearly separating the monitored path. This strengthens safety programs and reduces field repair time, especially in dense PV layouts where quick isolation matters. Use this in solar arrays where isolation integrity is essential. Encased in a NEMA 4, painted galvanized steel enclosure, the unit withstands rain, dust, and harsh environments while maintaining accessibility for routine maintenance. Outdoor-ready protection translates to longer service life and lower total cost of ownership for solar projects. Pair it with outdoor-rated wiring methods to maximize reliability in exposed installations. Rated for 2 circuits and with main lugs sized to 300 kcmil-#6, the DCG2064UPM accommodates large-diameter conductors without excessive splicing. The result is reduced installation time, lower voltage drop, and fewer termination points to fail. This is particularly advantageous for utility-scale solar feeders or high-current PV strings. UL 98B and NEC 690 per UL 1741 certifications validate compliance with North American safety standards, easing inspection and procurement. The NEMA 4 enclosure and grounded design further support safe outdoor operation and metadata traceability on projects. This certification combination provides confidence for engineering teams and project owners alike. Warranty coverage through Eaton’s policy adds a predictable maintenance horizon, while the unit’s compact footprint fits typical electrical rooms and outdoor enclosures. The 45 lb weight supports easier handling during installation and retrofit projects, helping teams meet tight schedules without compromising safety.
