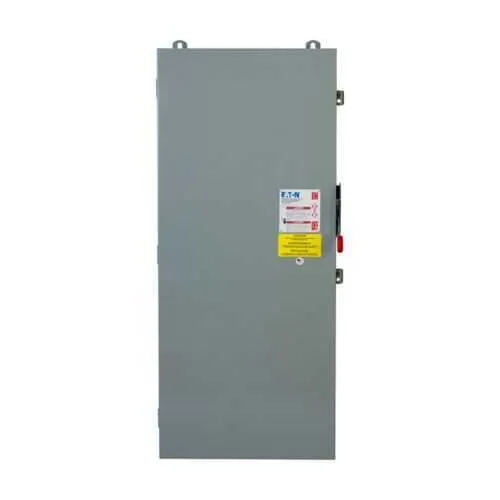

Eaton DCG2065UPM Heavy Duty DC Disconnect - UL Listed
Part Number: DCG2065UPM
Quick Summary
DCG2065UPM heavy duty DC disconnect isolates solar DC circuits safely in PV installations. Engineers often wrestle with bulky enclosures, wiring complexity, and inconsistent ratings when integrating large DC arrays. UL Listed and NEMA 4 enclosure labeling provide weather resistance and regulatory compliance for outdoor and harsh-industrial sites. This solution supports 400 A, 600 VDC operation and two-pole, grounded, isolated-return architecture, simplifying wiring with clearly defined lug configurations. By combining rugged construction with clear documentation, Eaton helps reduce install time, improve safety, and boost system availability in commercial solar projects.
Product Information
Extended Description
DCG2065UPM Eaton: Eaton heavy-duty DC disconnect,400A,Painted steel,Non-fusible,Grounded,In/Out(LC): (1) 750 MCM-1/0 and (1) 600 MCM-#2, In/Out(SR): (2) 750 MCM-1/0,600 Vdc,NEMA 4,2,Isolated return,Two-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG2065UPM
UPC
786685865591
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
118 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
2
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): (1) 750 kcmil-1/0 and (1) 600 kcmil-#2, In/Out(SR): (2) 750 kcmil-1/0
Number of poles
Two-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty safety Single-throw DC photovoltaic systems
Protection
Non-fusible
Feature: 400 A amperage rating and two-pole design deliver robust current handling for large DC feeders; Business Impact: reduces need for multiple disconnects and lowers arc-flash exposure; Application: solar PV and DC distribution. Feature: 600 VDC maximum, isolated return, grounded configuration enhances safe shutdown and predictable fault paths; Application: high-voltage PV strings in outdoor environments. Feature: NEMA 4 enclosure, painted galvanized steel provides weather resistance and reliable outdoor operation; Application: rooftop and ground-mounted solar installations. Feature: In/Out lug configurations for large conductors (LC and SR) with sizes up to 750 MCM-1/0 and 600 MCM-#2; Business Impact: simplifies wiring and reduces terminal congestion; Application: large-diameter DC feeders and PV arrays. Feature: UL Listed certification and grounded isolation; Business Impact: regulatory compliance and safer maintenance. Feature: Heavy-duty design with documented warranty; Business Impact: lowers lifecycle risk and downtime in industrial facilities.
