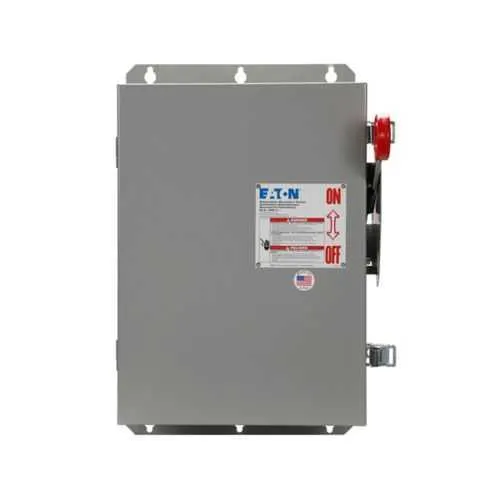

Eaton DCG2101UPM DC Disconnect - NEMA 4 Enclosure
Part Number: DCG2101UPM
Quick Summary
The DCG2101UPM by Eaton is a heavy-duty DC disconnect for solar PV installations. Engineers often struggle with achieving safe enclosure, reliable isolation, and code-compliant protection in outdoor environments. UL 98B and NEC 690 per UL 1741 certifications ensure safety and alignment with industry standards, while a NEMA 4 painted galvanized steel enclosure delivers weather resistance. Designed for 1000 VDC systems and two circuits, it offers rugged protection with straightforward installation for industrial solar projects and automated facilities. The grounded, isolated return configuration enhances servicing safety, and the 30A rating provides a practical balance between performance and wiring simplicity.
Product Information
Extended Description
DCG2101UPM Eaton: Eaton heavy duty DC disconnect,30A,NEMA 4,Painted steel,Non-fusible,Grounded,#14-#2 AWG lug capacity, #14-#2 AWG solid return,2,Isolated return,DC photovoltaic systems,1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG2101UPM
UPC
786685557816
Product Length/Depth
25.5 in
Product Height
9 in
Product Width
13.25 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
2
Ground
Grounded
Maximum voltage
1000 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-#2 AWG solid return
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty DC photovoltaic systems
Protection
Non-fusible
Feature: 30 A amperage rating; Business Impact: Enables safe, code-compliant switching of PV arrays without oversizing protection; Application: rooftop and industrial solar installations with 1000 VDC. Feature: Two circuits; Business Impact: Reduces hardware footprint and simplifies wiring, speeding installation in limited spaces; Application: multi-string PV banks. Feature: NEMA 4 enclosure in painted galvanized steel; Business Impact: Weatherproofing and corrosion resistance lower maintenance costs and downtime; Application: outdoor rooftops and exposed industrial sites. Feature: Grounded, isolated return; Business Impact: Enhanced fault isolation and safer maintenance procedures; Application: DC photovoltaic systems with isolated return. Feature: Non-fusible protection; Business Impact: Simplifies compliance with non-fusible DC disconnect practices while providing safe isolation; Application: solar PV installations. Feature: Lug capacity #14-#2 AWG; Business Impact: Compatibility with common PV conductor sizes reduces pre-assembly and field labor; Application: solar array connections. Feature: Certifications UL 98B, NEC 690 per UL 1741; Business Impact: Regulatory compliance and safer operation reduce risk and inspection time; Application: codes-compliant solar installations. Feature: 1000 VDC system voltage; Business Impact: Supports higher voltage PV designs with fewer conductors; Application: high‑voltage solar arrays. Feature: Durable footprint: 25.5 in L x 13.25 in W x 9 in H, 40 lb weight; Business Impact: Manageable installation footprint and predictable serviceability; Application: equipment rooms and outdoor enclosures.
