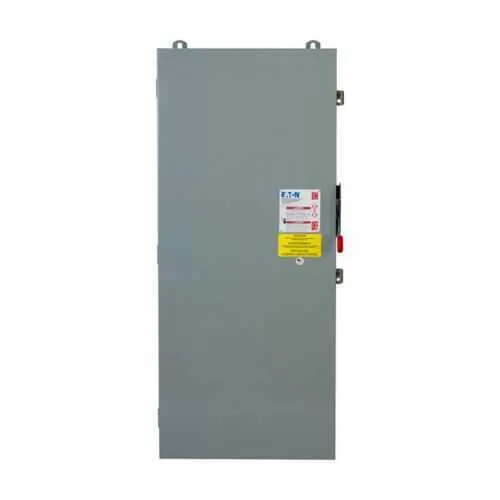

Eaton DCG2105FPM DC Disconnect - UL Listed for Solar PV
Part Number: DCG2105FPM
Quick Summary
DC disconnect from Eaton provides reliable isolation for 1000 VDC solar PV systems, enabling safe maintenance and robust protection. In rooftop and utility-scale projects, downtime, arc-flash risk, and wiring complexity threaten schedules and budgets. UL Listed certification, a NEMA 4 enclosure, and a painted galvanized steel housing deliver weather resistance and long life in demanding environments. Designed for DC photovoltaic systems, this heavy-duty disconnect supports 400 A and two circuits while helping you streamline procurement and installation.
Product Information
Extended Description
DCG2105FPM Eaton: Eaton heavy duty DC disconnect,400A,NEMA 4,Painted steel,Fusible,Grounded,2,DC photovoltaic systems,1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG2105FPM
UPC
786685866109
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
60 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
2
Ground
Grounded
Maximum voltage
1000 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
DC photovoltaic systems Heavy duty
Protection
Fusible
Feature: 400 A amperage rating; Business Impact: Supports large solar arrays with safe, controlled isolation, reducing maintenance time and arc-flash exposure; Application: Solar PV systems. Feature: 2 circuits; Business Impact: Enables modular string management and selective fault isolation, improving system uptime and fault response. Feature: NEMA 4 enclosure with painted galvanized steel; Business Impact: Built for outdoor, harsh environments, minimizing corrosion and weather-related downtime; Application: Rooftop and outdoor installations. Feature: 1000 VDC system voltage; Business Impact: Broad PV string compatibility, simplifying system integration and compliance with high-voltage safety standards; Application: Utility-scale and commercial PV. Feature: Fusible protection with grounded configuration; Business Impact: Enhances fault clearing and system safety, reducing fire risk and improving reliability; Application: Solar DC power paths. Feature: UL Listed certification; Business Impact: Supports regulatory compliance and customer assurance, facilitating procurement and project approvals; Application: Industrial solar deployments. Warranty and service are aligned with Eaton policies to minimize total cost of ownership and ensure long-term performance in field conditions.
Get a Quick Quote for a Eaton DCG2105FPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG2105FPM?
Enquire Now
FAQs
Yes. The DCG2105FPM is a 2-pole, fusible DC disconnect designed for 400 A operation in solar PV installations. Its NEMA 4 enclosure and painted galvanized steel housing are compatible with outdoor rooftop and utility-scale arrays, and it is UL Listed, ensuring suitability with standard Eaton and PV system components.
Key specs include 400 A amperage rating, 2 circuits, 1000 VDC maximum system voltage, fusible protection, grounded configuration, and NEMA 4 enclosure. These parameters define safe isolation for high-voltage PV strings and compatibility with typical solar protection schemes.
Yes. With NEMA 4 enclosure, painted galvanized steel construction, and UL Listed certification, the DCG2105FPM is well-suited for outdoor installations, including rooftop and utility-scale solar projects, delivering weather resistance and long service life in challenging environments.
The unit carries UL Listed certification for safety and performance. It also features a NEMA 4-rated enclosure, providing weather resistance. These attributes support regulatory compliance, asset reliability, and streamlined procurement for industrial solar deployments.
Eaton provides a warranty per policy 25-000, typically one year from installation or eighteen months from shipment. The durable enclosure, solid protection features, and UL certification reduce maintenance needs, downtime, and total cost of ownership, delivering dependable long-term performance for solar DC paths.
