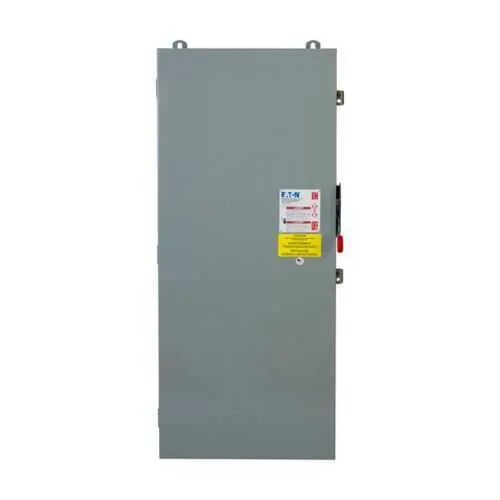

Eaton DCG2105URM DC Disconnect - NEMA 3R, 1000 VDC
Part Number: DCG2105URM
Quick Summary
Eaton DCG2105URM DC disconnect provides a rugged, 400 A switch for DC photovoltaic systems. Engineers often struggle with reliable isolation in outdoor installations while meeting code and safety requirements. UL Listed and a NEMA 3R enclosure support compliant outdoor installation, and the 1000 VDC rating matches modern PV string voltages. This heavy-duty, non-fusible disconnect also supports grounded operation and two circuits, helping you simplify wiring and compliance. For procurement teams, the combination of UL listing, NEMA rating, and 400 A headroom translates to faster sourcing, safer field installations, and reduced project risk. In practice, technicians value quick installation, clear labeling, and a durable enclosure that stands up to harsh environments.
Product Information
Extended Description
DCG2105URM Eaton: Eaton heavy duty DC disconnect,400A,NEMA 3R,Painted galvanized steel,Non-fusible,Grounded,2,DC photovoltaic systems,1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG2105URM
UPC
786685866017
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
60 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
2
Ground
Grounded
Maximum voltage
1000 VDC
NEMA rating
NEMA 3R
Protection
Non-fusible
Application
Solar
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
DC photovoltaic systems Heavy duty
Protection
Non-fusible
Feature: 400 A rating with two circuits. Business Impact: Enables efficient, localized DC isolation for solar arrays, reducing the number of disconnects and wiring complexity while providing headroom for future expansion. Application: Ideal for mid-size solar PV systems where space and field labor are constraints. Feature: NEMA 3R outdoor-rated enclosure with painted galvanized steel. Business Impact: Delivers weather-resistant protection against rain, dust, and temperature swings, extending service life and lowering maintenance costs. Application: Suitable for rooftop or ground-mounted solar installations in exposed environments. Feature: Non-fusible protection and grounded configuration. Business Impact: Simplifies compliance and fault isolation, reduces arc flash risk, and creates a clear fault path for DC systems. Application: DC photovoltaic systems requiring safe, straightforward isolation. Feature: 1000 VDC maximum system voltage. Business Impact: Supports modern PV strings without additional equipment, enabling streamlined designs and reduced device count. Application: Solar installations up to 1000 VDC. Feature: UL Listed certification and robust construction. Business Impact: Validates safety across installation codes, speeds procurement, and provides confidence in field deployments. Application: Global solar deployments requiring compliant, durable DC protection. Feature: Dimensions and weight for planning and installation. Business Impact: 12.42 in depth, 57.47 in height, 24.12 in width, and 60 lb weight offer a compact yet sturdy footprint compatible with standard mounting options. Application: Outdoor racks, equipment rooms, and sheltered outdoor enclosures requiring reliable DC isolation.
Get a Quick Quote for a Eaton DCG2105URM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG2105URM?
Enquire Now
FAQs
The DCG2105URM is designed for outdoor solar PV installations and similar DC photovoltaic projects, supporting up to 1000 VDC and delivering 400 A across two circuits. Its NEMA 3R enclosure and grounded, non-fusible protection simplify wiring, mounting, and code compliance in rooftop, ground-mounted, or sheltered outdoor environments.
Key specs include a 400 A amperage rating, two circuits, non-fusible protection, and a 1000 VDC maximum system voltage. It is grounded and enclosed in a NEMA 3R, painted galvanized steel enclosure, making it suitable for solar DC isolation in adverse outdoor conditions.
Yes. The DCG2105URM uses a NEMA 3R enclosure and painted galvanized steel designed for outdoor protection, rain, dust, and temperature variations. UL Listed certification further confirms its suitability for outdoor solar installations and compliant protection of DC circuits.
UL Listing indicates adherence to recognized safety standards, reducing procurement risk and expediting compliance with electrical codes. For solar projects, UL Listed components like the DCG2105URM help ensure system reliability, proper isolation, and safer maintenance in diverse environments.
The product comes with Eaton’s warranty policy: one year from the date of installation or eighteen months from shipment, whichever occurs first. This coverage helps protect against manufacturing defects and provides a defined basis for field support and maintenance planning.
