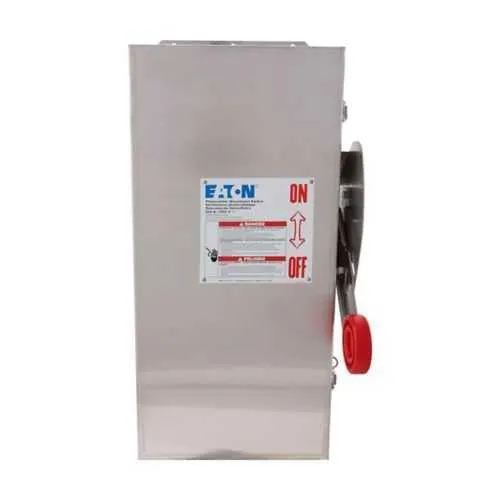

Eaton DCG3061FWM DC Disconnect for Solar - NEMA 4X
Part Number: DCG3061FWM
Quick Summary
Eaton heavy duty DC disconnect provides rugged DC isolation for solar PV systems. Engineers seek reliable, code-compliant hardware that withstands outdoor exposure and frequent maintenance. This DCG3061FWM unit delivers a grounded, isolated-return design with fusible protection in a corrosion-resistant 304 stainless steel enclosure. It carries NEC 690 per UL 1741 and UL 98B certifications, and is housed in a NEMA 4X enclosure to perform in harsh outdoor environments. The combination of a 30A rating, 600 VDC capability, and three-pole configuration supports mid-size PV arrays while reducing switching hazards and downtime. For system integrators and maintenance teams, the unit offers straightforward wiring, documented dimension compatibility, and reliable safety in industrial electrical protection applications, all while enabling compliant solar installations.
Product Information
Extended Description
DCG3061FWM Eaton: Eaton heavy-duty DC disconnect,30A,Solar,Grade 304 stainless steel,Fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4X,3,Fusible,Isolated return,Three-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG3061FWM
UPC
786685556857
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
3
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Three-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Fusible
Isolation
Isolated return
Switch type
DC photovoltaic systems Heavy duty safety Single-throw
Protection
Fusible
Enclosure durability and corrosion resistance: The 304 stainless steel NEMA 4X enclosure provides weatherproof protection against dust, moisture, and corrosion, extending service life in outdoor solar installations. Business impact: reduced downtime and maintenance costs, greater uptime for critical PV assets. Application: rooftop and ground-mounted PV systems exposed to the elements benefit from long-term reliability. Three-pole fusible DC disconnect with isolated return: The fusible protection and isolated return design simplify safe DC switching and fault management. Business impact: improved arc control, faster fault isolation, and enhanced personnel safety. Application: mid-size solar arrays requiring dependable, code-compliant DC isolation points. Wiring compatibility and termination options: In/Out(LC) accepts #2-#14 AWG; In/Out(SR) accepts 1/0-#14 AWG, supporting common PV conductor sizes. Business impact: easier field wiring, reduced labor, and fewer adaptation components. Application: streamlined installation in tight utility rooms or outdoor enclosures. Electrical ratings and safety features: 30A, 600 VDC, three-pole configuration with grounded system. Business impact: aligns with PV string limits and provides robust overcurrent protection. Application: solar array disconnects requiring reliable, code-aligned performance. Compliance, dimensions, and installation efficiency: NEC 690 per UL 1741 UL 98B combined with documented dimensions (10.22 in depth, 19.08 in height, 8.76 in width) and 21 lb weight. Business impact: predictable space planning, certified protection, and faster deployment. Application: industrial solar sites needing code-compliant hardware with known footprint.
