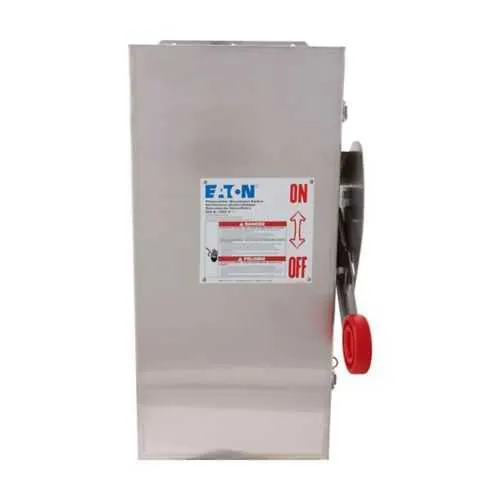

Eaton DCG3061UXM DC Disconnect - NEMA 4X, 600 VDC
Part Number: DCG3061UXM
Quick Summary
Eaton heavy duty DC disconnect safely isolates DC solar circuits, enabling reliable, code-compliant power switching for photovoltaic installations. In the field, corrosion, weather exposure, and wiring complexity can drive costly downtime during maintenance. This unit carries UL 98B and NEC 690 (per UL 1741) certifications and a NEMA 4X enclosure for outdoor harsh conditions. Built for industrial solar and commercial PV projects, the 316 stainless steel enclosure with grounded, isolated return reduces corrosion risk while simplifying installation of In/Out LC and SR conductors. The result is lower lifecycle costs, faster service, and better regulatory compliance across diverse project sites.
Product Information
Extended Description
DCG3061UXM Eaton: Eaton heavy-duty DC disconnect,30A,Solar,Grade 316 stainless steel,Non-fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4X,3,Non-fusible,Isolated return,Three-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG3061UXM
UPC
786685556888
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
3
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Three-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Non-fusible
Three-pole 30A, 600 VDC non-fusible DC disconnect with isolated return provides complete isolation of all poles. This reduces arc-flash exposure, simplifies safe shutdowns, and shortens maintenance windows for solar installations. It is well suited for outdoor DC strings in commercial and utility-scale PV projects. 316 stainless steel enclosure with a NEMA 4X rating delivers superior corrosion resistance and weatherproofing. Business impact: fewer enclosure failures, lower maintenance, and longer service life in rooftop or ground-mount installations. Application: outdoor solar sites and harsh environments where robust protection matters. Wiring versatility includes In/Out(LC): #2-#14 AWG and In/Out(SR): 1/0-#14 AWG. Business impact: flexible termination options streamline installation, reduce field rework, and minimize inventory for diverse projects. Application: PV conductor runs with mixed lug sizes and string configurations. UL 98B and NEC 690 per UL 1741 certifications ensure regulatory compliance. Business impact: smoother approvals, fewer retrofits, and better risk management. Application: U.S. solar projects requiring certified DC switching devices. Grounded, isolated return design with three-pole configuration enhances safety by preventing floating voltages and ensuring predictable disconnections. Business impact: improved protection for personnel and equipment, lower maintenance diagnostics, and easier testing. Warranty of one year from installation or eighteen months from shipment, along with dimensions of 10.22 in L x 19.08 in H x 8.76 in W, supports clear field-fit and mounting planning. Application: system integration and site-specific enclosure planning.
Get a Quick Quote for a Eaton DCG3061UXM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG3061UXM?
Enquire Now
FAQs
Yes. DCG3061UXM is a three-pole, 30 A DC disconnect rated for up to 600 VDC per pole, with configured lug options for In/Out LC (#2–#14 AWG) and In/Out SR (1/0–#14 AWG) conductors, making it compatible with common solar string and array configurations.
The assembly complies with UL 98B, NEC 690 per UL 1741, and features a NEMA 4X enclosure. These certifications support code compliance, safer outdoor operation, and easier approval processes for US PV projects.
The 316 stainless steel enclosure delivers exceptional corrosion resistance and weatherproofing. In rooftop and ground-mount PV sites, this reduces maintenance frequency, extends service life, and keeps electrical connections protected from rain, humidity, and environmental contaminants.
The unit uses an isolated return with grounded system design across three poles, ensuring no floating voltages during switching. This reduces arc-flash risk, simplifies lockout/tagout procedures, and improves technician confidence during maintenance and testing.
Expect long-term durability from the 316 stainless steel construction and a protected NEMA 4X enclosure, which lowers corrosion-related upkeep. The one-year warranty (or 18 months from shipment) provides initial risk reduction, while reliable performance minimizes downtime and supports faster project completion.
