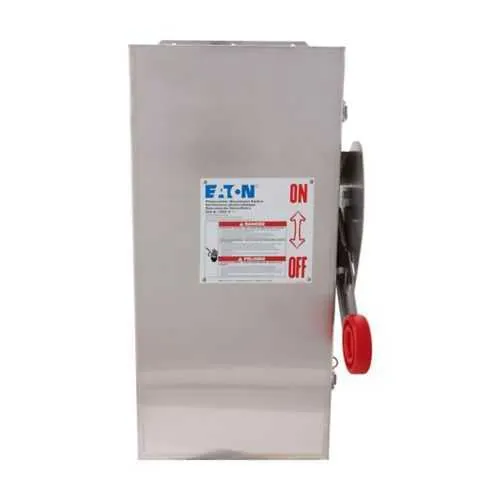

Eaton DCG3062UXM DC Disconnect - NEMA 4X 316SS
Part Number: DCG3062UXM
Quick Summary
Eaton heavy duty DC disconnects provide safe, reliable isolation for solar DC power systems. In outdoor PV installations, corrosion resistance, weather sealing, and space constraints can complicate safe switching. This unit features a NEMA 4X enclosure in 316 stainless steel and complies with NEC 690 per UL 1741 and UL 98B for harsh environments. Built for performance and long-term value, it supports 60 A, three circuits, and 600 VDC per pole, making it a practical fit for modern solar infrastructure.
Product Information
Extended Description
DCG3062UXM Eaton: Eaton heavy-duty DC disconnect, 60 A, NEMA 4X, Grade 316 stainless steel, In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG, 3 circuits, Non-fusible, Three-pole, 600 Vdc per pole, Wire size: #14-#4 AWG input, #14-#4 AWG output
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG3062UXM
UPC
786685556895
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
3
Ground
Grounded
Maximum voltage
600 VDC
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Three-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Single-throw Heavy duty safety
Protection
Non-fusible
Feature: NEMA 4X enclosure and 316 stainless steel construction. Business Impact: Delivers superior corrosion resistance and weather durability, reducing preventive maintenance in challenging outdoor environments. Application: Ideal for rooftop and ground-mount solar installations where exposure to moisture and salt spray is a concern. Feature: 60 A, three circuits, non-fusible design. Business Impact: Enables safe, controlled DC isolation with straightforward interlock and serviceability, lowering fault risk and downtime. Application: Solar PV arrays requiring reliable, non-fusible switching across multiple circuits. Feature: In/Out wiring options (LC #2-#14 AWG; SR 1/0-#14 AWG). Business Impact: Expands compatibility with common PV wiring practices, reducing field rework and installation time. Application: Quick, flexible connections during site wiring and commissioning. Feature: Three-pole configuration with 600 VDC per pole. Business Impact: Supports multi-string DC architectures and high voltage safety margins, improving system performance and protection. Application: Utility-scale or commercial solar installations with larger DC strings. Feature: Grounded isolation, single-throw heavy-duty switch. Business Impact: Provides clear, safe operation with solid mechanical life and reduced arcing risk. Application: Regular maintenance cycles and emergency shutdown procedures for PV systems. Feature: Certifications and compliance (NEC 690 per UL 1741, UL 98B). Business Impact: Streamlines procurement and regulatory acceptance, easing spec-to-install handoffs. Application: Projects requiring recognized solar safety standards and panel-mount reliability. Industry Insight: The DCG3062UXM balances rugged outdoor resilience with install flexibility, aligning with industry best practices for solar DC protection and long-term operational efficiency.
Get a Quick Quote for a Eaton DCG3062UXM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG3062UXM?
Enquire Now
FAQs
Install the DCG3062UXM by mounting it in a suitable outdoor-rated enclosure, then connect the input and output conductors using the listed wiring schemes: In/Out LC: #2-#14 AWG and In/Out SR: 1/0-#14 AWG. Ensure proper grounding, verify three-pole alignment, and close the disconnect only after all connections are secured. Follow NEC guidelines.
The device is rated for 60 A, three circuits, and 600 VDC per pole. It is a non-fusible, three-pole DC disconnect designed for grounded systems in solar applications, with a NEMA 4X enclosure for outdoor use and a 316 stainless steel construction for durability.
Yes. The DCG3062UXM features a NEMA 4X enclosure and 316 stainless steel construction, explicitly designed for harsh outdoor environments. It supports solar PV applications and complies with NEC 690 as referenced in UL 1741 and UL 98B, ensuring robust outdoor performance and regulatory alignment.
This disconnect adheres to NEC 690 requirements and UL 1741, with UL 98B listed for safety. The 316 stainless steel enclosure and NEMA 4X rating further support environmental resistance, making it suitable for solar installations in challenging climates while meeting critical compliance benchmarks.
Eaton provides a warranty described as one year from installation or eighteen months from shipment, whichever occurs first. The non-fusible design and rugged construction support long service life, while the enclosure and wiring options minimize maintenance and replacement costs over the system’s life cycle.
