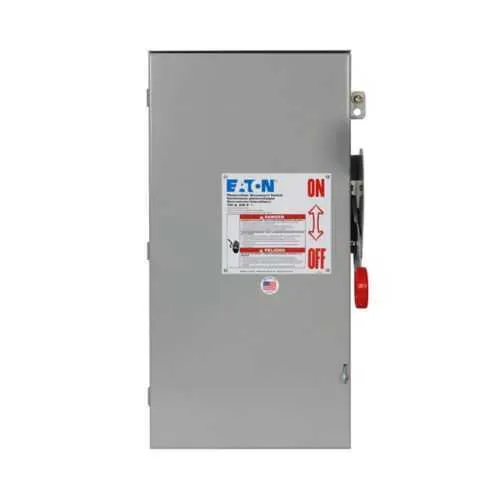

Eaton DCG3063FRM DC Disconnect - NEMA 3R Fusible
Part Number: DCG3063FRM
Quick Summary
Eaton DCG3063FRM heavy duty DC disconnect is designed to safely isolate three 600 VDC solar circuits. In practice, engineers encounter safety, space, and compliance challenges during DC PV deployments, making robust disconnects essential. This unit carries NEC 690 compliance via UL 1741 and UL 98B, with a durable NEMA 3R enclosure for outdoor environments. The 100 A rating and fusible protection deliver reliable fault isolation, while the three-pole design simplifies wiring and reduces downtime. Grounded PV system compatibility and input/output wiring (In/Out: 1/0-#14 AWG) streamline field install and retrofit. For procurement teams, the combination of documented warranty and long-term service support helps minimize project risk and accelerate timelines.
Product Information
Extended Description
DCG3063FRM Eaton: Eaton heavy-duty DC disconnect, 100 A, NEMA 3R, Painted galvanized steel, In/Out(LC/SR): 1/0-#14 AWG, 3 circuits, Fusible, Three-pole, 600 Vdc per pole, Wire size: #14-#4 AWG input, #14-#4 AWG output
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG3063FRM
UPC
786685556758
Product Length/Depth
9.89 in
Product Height
21.99 in
Product Width
11.84 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Special features
For Grounded PV Systems
Type
DC disconnect/grounded system
Amperage Rating
100A
Number of circuits
3
Ground
Grounded
Maximum voltage
600 VDC
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC/SR): 1/0-#14 AWG
Number of poles
Three-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Isolation
Isolated return
Switch type
Heavy duty safety Single-throw
Protection
Fusible
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DCG3063FRM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 100 A, three-pole fusible DC disconnect for solar circuits. Business Impact: Provides safe fault isolation and NEC-compliant protection, reducing arc-flash risk and simplifying maintenance. Application: Ideal for three-circuit PV installations up to 600 VDC. This translates to faster service windows and lower total cost of ownership over the system lifecycle. Feature: NEMA 3R enclosure in painted galvanized steel for outdoor durability. Business Impact: Delivers weather-resistant performance in wet, dusty or outdoor environments, reducing enclosure corrosion and downtime. Application: Outdoor solar and utility-scale installations where enclosure protection is a must. Feature: In/Out wiring rated at 1/0-#14 AWG with three circuits. Business Impact: Enables straightforward field wiring and compatible retrofit with common PV strings, shortening installation time. Application: Standard input/output configurations in PV projects. Feature: Grounded isolated return and fusible protection. Business Impact: Improves fault discrimination and protects downstream equipment, supporting reliable system uptime. Application: Grounded PV configurations requiring isolated return paths. Feature: Certifications and warranty support. Business Impact: Ensures regulatory compliance (UL/UL 1741 UL 98B) and reduces purchasing risk with a clear Eaton warranty. Application: Procurement and long-term maintenance planning. Feature: 600 VDC per pole, three-pole arrangement, 3 circuits. Business Impact: Enables scalable PV disconnects with proper protection and ease of coordination with other PV components. Application: Solar arrays needing robust, centralized DC isolation. The result is a durable, code-compliant solution that reduces installation risk, supports easy maintenance, and aligns with solar industry best practices.
Get a Quick Quote for a Eaton DCG3063FRM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG3063FRM?
Enquire Now
FAQs
Plan for a three-pole, fusible DC disconnect with 100 A capacity and 600 VDC per pole. Verify input/output wiring is In/Out(LC/SR): 1/0-#14 AWG and ensure the enclosure is mounted in a suitable outdoor location. Follow NEC 690 guidelines and UL 1741/UL 98B requirements for safe disconnect operations and coordinated protection with upstream and downstream gear.
The DCG3063FRM provides 100 A amperage rating across three circuits, with a maximum of 600 VDC per pole and fusible protection. It is designed for grounded PV systems, uses an isolated return, and supports In/Out wiring of 1/0-#14 AWG. These features enable reliable fault isolation and compliance with NEC and UL standards for solar installations.
Yes. The unit is housed in a NEMA 3R enclosure with painted galvanized steel, delivering outdoor durability against moisture, dust, and weather exposure. The rugged construction is intended for solar PV sites, carport arrays, and other outdoor DC disconnect applications where safe isolation and environmental protection are essential.
This disconnect aligns with NEC 690 requirements and UL 1741/UL 98B certifications, confirming suitability for solar PV applications and electrical protection. These standards support safe operation, proper coordination with PV arrays, and acceptance by utility and code authorities, reducing project risk and tightening compliance timelines.
The three-pole fusible design, durable NEMA 3R enclosure, and standardized input/output wiring translate to lower maintenance costs through fewer field failures and faster servicing. With Eaton’s documented warranty, projects benefit from predictable support and reduced total cost of ownership over the system lifecycle, improving overall project ROI for solar deployments.
