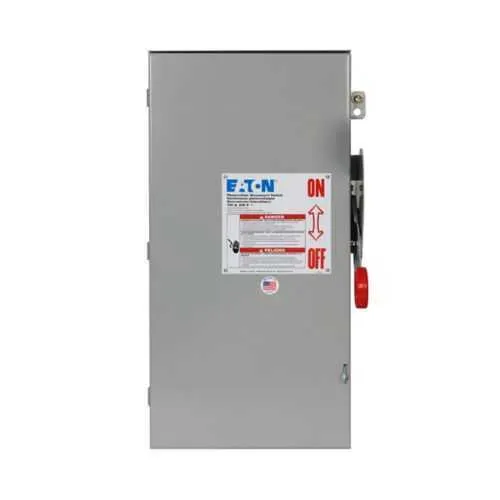

Eaton DCG3063URM DC Disconnect - NEMA 3R
Part Number: DCG3063URM
Quick Summary
Eaton DCG3063URM DC Disconnect provides rugged, safe isolation for DC circuits in solar PV installations. A common challenge is selecting a disconnect that withstands outdoor exposure, meets code, and doesn’t complicate maintenance. This unit aligns with NEC 690 per UL 1741 and UL 98B, and it uses a NEMA 3R painted galvanized enclosure to perform reliably outside. For installers and procurement teams, the 100 A rating, three circuits, and 600 VDC per pole translate into fewer components and faster commissioning. The design supports grounded PV systems with straightforward wiring, delivering robust protection with practical installation advantages and long-term reliability.
Product Information
Extended Description
DCG3063URM Eaton: Eaton heavy-duty DC disconnect, 100 A, NEMA 3R, Painted galvanized steel, In/Out(LC/SR): 1/0-#14 AWG, 3 circuits, Non-fusible, Three-pole, 600 Vdc per pole, Wire size: #14-#4 AWG input, #14-#4 AWG output
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG3063URM
UPC
786685556727
Product Length/Depth
9.89 in
Product Height
21.99 in
Product Width
11.84 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Special features
For Grounded PV Systems
Type
DC disconnect/grounded system
Amperage Rating
100A
Number of circuits
3
Ground
Grounded
Maximum voltage
600 VDC
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC/SR): 1/0-#14 AWG
Number of poles
Three-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty safety Single-throw
Protection
Non-fusible
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DCG3063URM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: 100 A amperage rating provides solid headroom for typical residential and commercial PV strings, reducing the need for additional protection devices and enabling streamlined design. This translates to lower material costs and faster project timelines when wiring a three-pole, non-fusible DC disconnect in outdoor PV installations. Feature → Business Impact → Application: Non-fusible protection simplifies maintenance schedules and improves reliability in continuous-duty solar environments, minimizing fault-tripping risk while maintaining swift isolation during servicing. Feature → Business Impact → Application: NEMA 3R enclosure in painted galvanized steel delivers outdoor durability, corrosion resistance, and rain-sleet exposure protection, supporting rooftop and ground-mounted installations with less enclosure-related downtime. Feature → Business Impact → Application: In/Out wiring capability (1/0-#14 AWG input) enables flexible field configurations and compatibility with common PV cables, reducing time on the rack and permitting faster commissioning. Feature → Business Impact → Application: 600 VDC per pole with three-pole operation ensures compatible isolation for multi-string solar arrays, improving system safety and compliance with NEC 690 requirements. Feature → Business Impact → Application: Grounded system design and grounded isolation support safer fault handling and clearer current paths, aiding preventive maintenance and easier troubleshooting. Feature → Business Impact → Application: Compatibility with 3 circuits and a 600 VDC rating supports scalable solar installations, allowing phased expansion without replacing the disconnect. The result is improved efficiency, safer operations, and measurable cost savings over the system lifecycle.
Get a Quick Quote for a Eaton DCG3063URM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG3063URM?
Enquire Now
FAQs
The DCG3063URM is a three-pole, non-fusible DC disconnect rated at 100 A and 600 VDC per pole, designed for grounded PV systems. It uses a NEMA 3R enclosure and supports In/Out wiring from 1/0 to #14 AWG. When installing, ensure proper mounting clearance, outdoor protection, and adherence to NEC 690 requirements for safe isolation during service.
Key specifications include a 100 A amperage rating, three circuits, and 600 VDC maximum voltage per pole. It is a non-fusible, three-pole DC disconnect intended for solar applications, with In/Out wire sizes listed as 1/0-#14 AWG input and #14-#4 AWG output, and a grounded system configuration.
The unit complies with NEC 690 per UL 1741 and UL 98B, ensuring code-aligned performance for solar installations. These certifications support safe operation, reliable fault isolation, and broad acceptance in PV system design and maintenance, particularly for outdoor, field-installed disconnects.
The DCG3063URM features a NEMA 3R enclosure made of painted galvanized steel, designed for outdoor use and resistance to typical environmental exposure. This enclosure rating provides protection against rain, sleet, and moderate corrosion, aiding long-term reliability in roof-mounted or ground-mounted PV installations.
The product supports main lug wiring with In/Out (LC/SR) ratings of 1/0-#14 AWG for inputs and #14-#4 AWG for outputs across its three circuits. This provides flexibility to accommodate common PV conductor sizes and simplifies field terminations during installation and commissioning.
