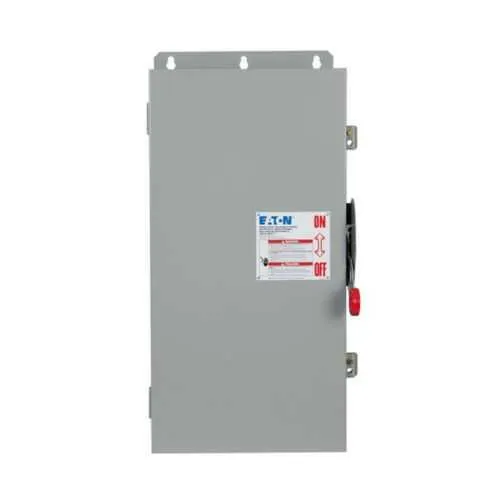

Eaton DCG3064FRM Heavy Duty DC Disconnect - NEMA 3R, 600VDC
Part Number: DCG3064FRM
Quick Summary
Eaton heavy duty DC disconnects provide safe, reliable isolation for solar PV DC circuits up to 600 VDC. In outdoor or harsh industrial environments, the right disconnect minimizes downtime and maintenance costs by delivering robust performance and easy serviceability. This model carries UL 98B and NEC 690 per UL 1741 verifications with a NEMA 3R enclosure for weather resistance, ensuring regulatory compliance in challenging sites. Designed for solar PV applications, it supports large conductors and grounded, isolated-return configurations, delivering dependable performance while enabling streamlined installation and long-term lifecycle value. Benefiting procurement with a proven warranty and shared field practices, this solution aligns with broader grid-tied and off-grid solar strategies.
Product Information
Extended Description
DCG3064FRM Eaton: Eaton heavy-duty DC disconnect,200A,Solar,Painted galvanized steel,Fusible,Grounded,In/Out(LC): 300 MCM-#6, In/Out(SR): 300 MCM-#6,600 Vdc,NEMA 3R,3,Fusible,Isolated return,Three-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG3064FRM
UPC
786685624839
Product Length/Depth
11.63 in
Product Height
35.38 in
Product Width
16.54 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Type
DC disconnect/grounded system
Amperage Rating
200 A
Number of circuits
3
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): 300 kcmil-#6, In/Out(SR): 300 kcmil-#6
Number of poles
Three-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Isolation
Isolated return
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Fusible
Feature: 200 A, three-pole, fusible, grounded DC disconnect. Business Impact: Provides safe, code-compliant isolation with reliable fault protection for solar PV circuits, reducing outage risk. Application: Ideal for three-phase DC PV strings up to 600 VDC in multicabinet layouts. Feature: NEMA 3R, painted galvanized steel enclosure. Business Impact: Offers outdoor durability and weather resistance, lowering maintenance needs in exposed installations. Application: Outdoor solar arrays and mixed indoor/outdoor electrical rooms. Feature: Main lug wire size In/Out(LC) 300 kcmil-#6 and In/Out(SR) 300 kcmil-#6. Business Impact: Supports large-diameter conductors for minimal terminations and fewer splice points, improving reliability. Application: High-current PV bus connections. Feature: UL 98B, NEC 690 per UL 1741 certifications. Business Impact: Ensures compliance with key safety standards, accelerating procurement and inspection cycles. Application: Utility-grade solar projects. Feature: Isolated return with grounded system. Business Impact: Reduces floating potentials, enhancing operator safety and fault control. Application: Critical for safe DC PV shutdowns. Feature: Three-pole design and 600 VDC rating. Business Impact: Enables robust, scalable PV system protection with straightforward integration. Application: Medium-to-large solar installations. Feature: Warranty of one year from installation (or 18 months from shipment). Business Impact: Provides risk mitigation and predictable service expectations. Application: procurement and maintenance planning.
Get a Quick Quote for a Eaton DCG3064FRM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG3064FRM?
Enquire Now
FAQs
Install the three-pole disconnect in a suitable electrical space, ensuring the In/Out terminals accommodate 300 kcmil-#6 conductors (LC and SR) and that the unit is mounted in the NEMA 3R enclosure to withstand the site environment. Connect the grounded and isolated-return wiring per the UL 1741 and NEC guidelines, verify 600 VDC maximum, and inspect the fusible protection arrangement before commissioning.
DCG3064FRM carries UL 98B and NEC 690 per UL 1741 credentials, confirming high-level safety and performance for DC disconnects in solar installations. The NEMA 3R enclosure rating further validates weather resistance for outdoor use. These certifications streamline compliance checks, reduce risk during inspections, and support reliable operation in utility-scale or commercial PV projects.
Yes. The main lug wiring supports In/Out(LC): 300 kcmil-#6 and In/Out(SR): 300 kcmil-#6, enabling direct termination of substantial PV conductors. This compatibility minimizes splices, improves reliability, and simplifies installation in high-current solar configurations, while maintaining a grounded, isolated-return arrangement for safe operation.
Key benefits include robust 200 A capacity, 600 VDC rating, and fusible protection for rapid fault isolation. The NEMA 3R weather-rated enclosure supports outdoor deployment, while UL 98B/NEC 690 compliance ensures regulatory alignment. Its grounded, isolated-return design reduces potential fault paths, and its three-pole configuration supports scalable PV strings, contributing to improved uptime and lower lifecycle costs.
Expect minimal maintenance beyond routine inspection of connections and enclosure seals. The fusible protection reduces risk of damage from overloads, while the rugged galvanized steel enclosure resists corrosion in harsh environments. The warranty provides coverage during early life, and the device’s compatibility with large conductors streamlines future PV system expansions, improving total cost of ownership.
