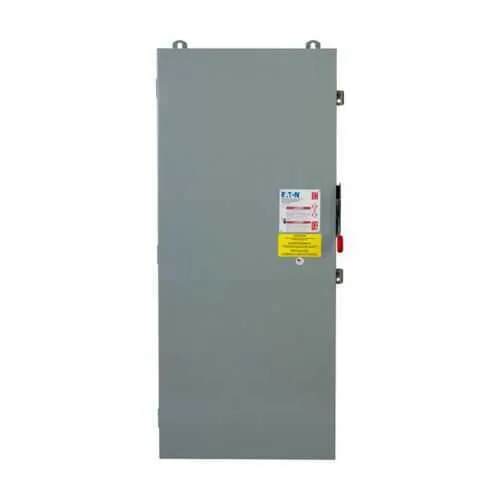

Eaton DCG3065FPM DC disconnect - NEMA 4 rated
Part Number: DCG3065FPM
Quick Summary
Eaton heavy-duty DC disconnect isolates solar DC circuits in PV installations for safe, code-compliant operation. Facilities today face mounting downtime and maintenance hazards when disconnecting live PV arrays, which can delay commissioning and increase risk. UL Listed, a NEMA 4 enclosure, and a 600 VDC rating deliver rugged protection in harsh environments, while fusible protection and isolated return enhance fault handling. By combining robust wiring options with a three-pole design, this solution reduces installation time, simplifies field connectivity, and supports scalable protection for growing solar projects. In practice, engineers appreciate the blend of mechanical durability, clear labeling, and reliable performance that aligns with utility and industrial standards.
Product Information
Extended Description
DCG3065FPM Eaton: Eaton heavy-duty DC disconnect,400A,Painted steel,Fusible,Grounded,In/Out(LC): (1) 750 MCM-1/0 and (1) 600 MCM-#2, In/Out(SR): (2) 750 MCM-1/0,600 Vdc,NEMA 4,3,Fusible,Isolated return,Three-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG3065FPM
UPC
786685865683
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
129 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
3
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): (1) 750 kcmil-1/0 and (1) 600 kcmil-#2, In/Out(SR): (2) 750 kcmil-1/0
Number of poles
Three-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Isolation
Isolated return
Switch type
DC photovoltaic systems Heavy duty safety Single-throw
Protection
Fusible
Feature: 400 A amperage rating with a three-pole design enables robust current handling and predictable fault isolation, reducing the risk of overload on each leg. Business Impact: This capability minimizes conductor heating, improves efficiency, and simplifies protective coordination with upstream protective devices. Application: Well-suited for large solar PV strings, utility-scale DC feeds, and battery storage interconnections where dependable current capacity is mandatory. Feature: NEMA 4-rated enclosure in painted galvanized steel provides weatherproof protection. Business Impact: It withstands rain, dust, and washdown environments, lowering maintenance costs and extending service life. Application: Outdoor rooftops, combiner rooms, and harsh industrial sites where protective enclosures are required. Feature: Fusible protection with isolated return. Business Impact: Overcurrent protection and safe fault isolation reduce arc-flash risk and support regulatory compliance. Application: Solar DC disconnects used in PV arrays requiring safe de-energization during maintenance. Feature: In/Out LC and SR wiring options with large conductor sizes. Business Impact: Simplifies field wiring, reduces labor, and enables rapid commissioning with direct terminations. Application: Large-diameter conductors such as 750 MCM-1/0 and 600 MCM-#2 feeding main DC circuits. Feature: UL Listed and rugged construction with clear documentation. Business Impact: Facilitates regulatory acceptance, supplier qualification, and streamlined procurement. Application: Projects in North America and other UL-adopting regions needing certified DC protection equipment. Warranty: One year from installation or eighteen months from shipment, whichever comes first.
Get a Quick Quote for a Eaton DCG3065FPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG3065FPM?
Enquire Now
FAQs
The DCG3065FPM is built around a NEMA 4, painted galvanized steel enclosure, making it suitable for outdoor solar PV installations, damp or dusty environments, and harsh industrial sites. Its rugged build resists weather and particulate ingress, helping maintain reliability with minimal maintenance in real-world conditions.
Key specs include a 400 A amperage rating, three-pole configuration, maximum voltage of 600 VDC, fusible protection, and a grounded, isolated-return design. It supports large conductor sizes for In/Out LC and In/Out SR terminations, enabling robust, code-compliant DC protection for PV systems.
Yes. It is purpose-built for DC photovoltaic applications, offering a robust three-pole disconnect with fusible protection, isolated return, and a 600 VDC rating. Its NEMA 4 enclosure and UL listing ensure reliable outdoor operation and regulatory compliance for solar installations.
The product is UL Listed and features a NEMA 4 enclosure, with a 600 VDC maximum rating for DC photovoltaic systems. These certifications support compliance with safety and performance standards across North American solar projects.
Warranty terms are Eaton’s standard policy: one year from the date of installation or eighteen months from shipment, whichever occurs first. Routine maintenance is minimal due to rugged enclosure construction, but periodic inspection of connections and fusible links is recommended for high-use solar environments.
