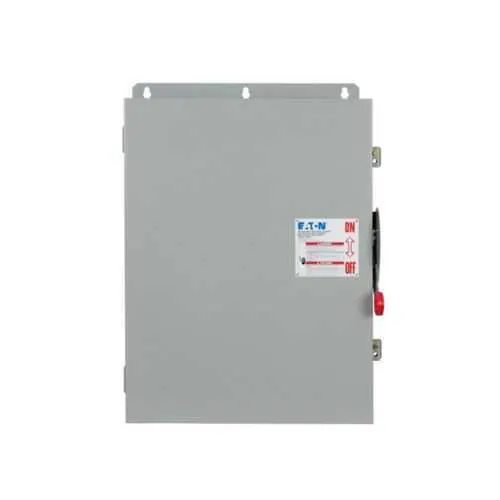

Eaton DCG4064FPM Heavy Duty DC Disconnect - UL 98B
Part Number: DCG4064FPM
Quick Summary
Eaton DCG4064FPM heavy duty DC disconnect provides safe isolation for solar PV systems. This unit is designed to simplify field installation while delivering reliable performance in demanding environments. Engineers often struggle with robust disconnects that withstand outdoor weather, meet exacting code requirements, and remain easy to service. With UL 98B, NEC 690 per UL 1741 compliance, and NEMA 4 enclosure protection, this four-pole device offers proven reliability. The combination of 200 A capacity, fusible protection, and isolated return supports compliant, maintainable PV systems. In practice, that means improved uptime, streamlined maintenance, and reduced risk for both install teams and operators—while fitting seamlessly into existing electrical protection schemes and space-constrained layouts.
Product Information
Extended Description
DCG4064FPM Eaton: Eaton heavy-duty DC disconnect,200A,Solar,Painted steel,Fusible,Grounded,In/Out(LC): 300 MCM-#6, In/Out(SR): 300 MCM-#6,600 Vdc,NEMA 4,4,Fusible,Isolated return,Four-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG4064FPM
UPC
786685624938
Product Length/Depth
35.38 in
Product Height
11.63 in
Product Width
24.46 in
Product Weight
60 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Type
DC disconnect/grounded system
Amperage Rating
200 A
Number of circuits
4
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): 300 kcmil-#6, In/Out(SR): 300 kcmil-#6
Number of poles
Four-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Isolation
Isolated return
Switch type
DC photovoltaic systems Single-throw Heavy duty safety
Protection
Fusible
Feature: Four-pole, 200 A rating enables robust DC isolation for mid-to-large solar arrays. Business Impact: Supports higher system reliability and simplifies protective coordination with other equipment. Application: Suitable for 600 VDC PV circuits in outdoor installations. Feature: Fusible protection with isolated return minimizes fault energy and improves arc suppression. Business Impact: Enhances operator safety and reduces component wear, lowering maintenance costs. Application: Solar photovoltaic applications requiring code-compliant disconnection. Feature: NEMA 4 rated enclosure with painted galvanized steel construction. Business Impact: Weatherproof performance for outdoor or damp locations, reducing enclosure corrosion risk. Application: Outdoor PV disconnects subject to rain, dust, and temperature swings. Feature: In/Out terminals LC and SR sized to 300 kcmil-#6. Business Impact: Enables flexible wiring configurations and reduced termination effort. Application: High-current DC feeds from PV arrays to inverters or combiner boxes. Feature: Four-pole configuration and 600 VDC per pole rating. Business Impact: Clear fault isolation across multiple DC paths, improved system safety, and easier code compliance. Application: Solar grid-tied systems with distributed DC sources. Feature: Compact footprint with 60 lb weight and 35.38 in length. Business Impact: Easier rack mounting and reduced installation footprint, saving space in control rooms or electrical rooms. Application: Utility-scale or commercial rooftop PV installations requiring space efficiency and reliability.
Get a Quick Quote for a Eaton DCG4064FPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG4064FPM?
Enquire Now
FAQs
The DCG4064FPM should be mounted in a NEMA 4-rated enclosure or weather-protected location. Use the In/Out LC terminals for 300 kcmil-#6 conductors and SR terminals for the same gauge. Ensure proper clearances and follow cold-termination practices during wiring. Verify labeling and protective coordination with upstream devices and inverter input circuits.
This unit is rated for 200 A, four poles, and 600 VDC per pole. It features fusible protection, isolated return, and a four-pole design suitable for DC photovoltaic applications. Main feed connections are rated for In/Out(LC) and In/Out(SR) with 300 kcmil-#6, enabling robust current handling in solar arrays.
Yes. The enclosure is NEMA 4 rated and constructed from painted galvanized steel, providing outdoor protection against dust, water ingress, and corrosion. This makes it well-suited for rooftop and other outdoor PV installations where harsh weather conditions are common.
The DCG4064FPM carries UL 98B and NEC 690 per UL 1741 certifications, which support compliant solar DC isolation. The combination ensures safe operation, proper labeling, and conformity with industry safety codes relevant to utility-scale and commercial PV systems.
With fusible protection and isolated return, fault energy is minimized and maintenance intervals can be extended due to rugged construction. Its compatibility with 600 VDC PV circuits and straightforward wiring reduces installation time, lowers labor costs, and helps achieve faster commissioning and system reliability.
