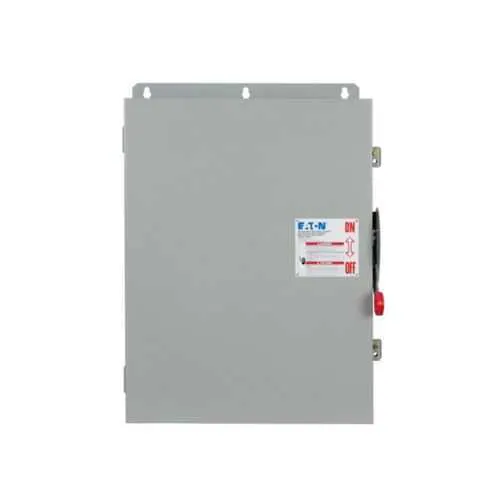

Eaton DCG4064UPM DC disconnect - 600 VDC, NEMA 4
Part Number: DCG4064UPM
Quick Summary
DCG4064UPM Eaton heavy-duty DC disconnect isolates solar DC circuits in PV installations. Engineers face challenges with safe enclosure protection, wiring integrity, and navigating evolving PV codes. This unit carries NEC 690 per UL 1741 and UL 98B certifications, and uses a NEMA 4 enclosure to withstand outdoor conditions. Four-pole, grounded, non-fusible isolation with large lug terminals enables easy integration, reduces field wiring errors, and lowers total cost of ownership for solar projects.
Product Information
Extended Description
DCG4064UPM Eaton: Eaton heavy-duty DC disconnect,200A,Solar,Painted steel,Non-fusible,Grounded,In/Out(LC): 300 MCM-#6, In/Out(SR): 300 MCM-#6,600 Vdc,NEMA 4,4,Non-fusible,Isolated return,Four-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG4064UPM
UPC
786685624921
Product Length/Depth
11.63 in
Product Height
35.38 in
Product Width
24.46 in
Product Weight
60 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Type
DC disconnect/grounded system
Amperage Rating
200 A
Number of circuits
4
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): 300 kcmil-#6, In/Out(SR): 300 kcmil-#6
Number of poles
Four-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Single-throw Heavy duty safety DC photovoltaic systems
Protection
Non-fusible
Feature: 200 A amperage rating enables you to safely interrupt full PV array current without oversizing components. Benefit: Improves system reliability and reduces the need for frequent panelboard upgrades, translating to lower lifecycle costs for commercial and utility-scale solar deployments. Application: Suitable for solar DC disconnects in rooftop and ground-mmount PV systems where high current handling is required. Feature: 600 VDC maximum voltage and four-pole design. Benefit: Provides robust isolation with a grounded return path, enhancing safety margins and simplifying compliance with utility interconnection standards. Application: Ideal for centralized DC switching in PV farms and battery storage projects. Feature: Non-fusible protection and isolated return. Benefit: Reduces maintenance complexity and allows straightforward fault visibility, while keeping the wiring topology clean and serviceable. Application: Preferred in PV PV+storage configurations where rapid maintenance is critical. Feature: NEMA 4 enclosure with painted galvanized steel. Benefit: Delivers weather resistance and corrosion protection for outdoor installations, minimizing downtime from dust, water, and temperature exposure. Application: Outdoor solar installations and harsh environments where reliable enclosure integrity matters. Feature: Large lug wires (In/Out LC: 300 kcmil-#6, In/Out SR: 300 kcmil-#6). Benefit: Supports heavy conductor runs with secure terminations, enabling efficient field wiring and reducing termination hassles. Application: Aligns with utility-grade photovoltaic system wiring practices. Feature: 4 poles, grounded, four-puse configuration. Benefit: Provides isolated return and independent switching per pole, improving fault isolation and safety during commissioning and maintenance. Application: Four-pole DC disconnects are standard for PV array isolation in multi-string configurations. Feature: Certifications NEC 690 per UL 1741 and UL 98B. Benefit: Ensures compliance with solar installation codes and electrical safety standards, reducing regulatory risk. Application: Essential for code-compliant PV installations and utility-grade interconnections.
