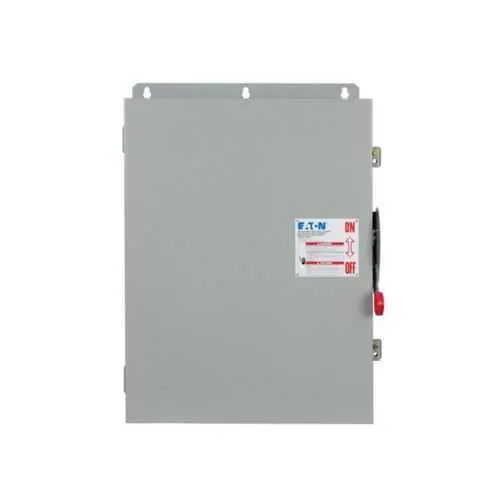

Eaton DCG4064URM DC Disconnect - 600V, NEMA 3R
Part Number: DCG4064URM
Quick Summary
Eaton heavy-duty DC disconnect safely interrupts and isolates solar DC power for photovoltaic systems. Engineers often struggle with rugged outdoor enclosures, space constraints, and the need to meet strict safety codes. UL 98B, NEC 690 per UL 1741, and a NEMA 3R rating help ensure compliant, weather-ready operation. This four-pole, non-fusible device simplifies wiring, isolation, and maintenance, while the painted galvanized steel enclosure resists the elements. The DCG4064URM supports In/Out LC and SR lugs up to 300 kcmil-#6, is grounded, and delivers a clear, field-proven path to reliable solar DC protection, aligning with project schedules and total cost of ownership goals.
Product Information
Extended Description
DCG4064URM Eaton: Eaton heavy-duty DC disconnect,200A,Solar,Painted galvanized steel,Non-fusible,Grounded,In/Out(LC): 300 MCM-#6, In/Out(SR): 300 MCM-#6,600 Vdc,NEMA 3R,4,Non-fusible,Isolated return,Four-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG4064URM
UPC
786685624907
Product Length/Depth
11.63 in
Product Height
35.38 in
Product Width
24.46 in
Product Weight
60 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Type
DC disconnect/grounded system
Amperage Rating
200 A
Number of circuits
4
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): 300 kcmil-#6, In/Out(SR): 300 kcmil-#6
Number of poles
Four-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
DC photovoltaic systems Single-throw Heavy duty safety
Protection
Non-fusible
Feature: 200 A amperage rating across four poles. Business Impact: Enables a compact, single-device solution for high-current DC PV circuits, reducing the footprint of your protection scheme. Application: Ideal for solar arrays and DC PV installations where robust current interruption is required. Feature: 600 VDC maximum voltage with non-fusible protection. Business Impact: Simplifies protection strategy while complying with typical PV system voltage requirements, lowering design complexity. Application: Solar PV systems and DC distribution networks. Feature: NEMA 3R enclosure with painted galvanized steel. Business Impact: Delivers weather resistance and durability in outdoor or partially protected environments, reducing maintenance downtime. Application: Outdoor PV installations and exposed electrical rooms. Feature: Isolated return with grounded main lugs. Business Impact: Improves fault isolation and safety during maintenance, easing servicing and emergency shutoffs. Application: Solar DC protection and system commissioning. Feature: Main lug wire size supports 300 kcmil-#6 conductors (LC and SR). Business Impact: Supports large feeders and flexible wiring configurations, streamlining installation. Application: DC PV wiring schemes and combiner points. Feature: Four-pole configuration and four circuits. Business Impact: Enables clean, organized distribution and fault isolation for multi-string solar setups. Application: Multi-string PV arrays and distributed DC networks. Feature: UL 98B, NEC 690 per UL 1741 certifications. Business Impact: Ensures regulatory compliance and safety documentation, accelerating approval processes. Application: Compliance-driven projects and code-adhering facilities. Feature: Enclosure dimensions and weight (11.63 in L x 24.46 in W x 35.38 in H; 60 lb). Business Impact: Predictable footprint and mounting considerations simplify enclosure planning and transport. Application: Site planning and installation logistics for rooftop and ground-mounted PV systems.
Get a Quick Quote for a Eaton DCG4064URM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG4064URM?
Enquire Now
FAQs
The device supports In/Out LC lugs up to 300 kcmil-#6 and In/Out SR lugs up to 300 kcmil-#6, enabling large feeder connections for solar DC circuits.
It complies with UL 98B and NEC 690 as per UL 1741, and uses a NEMA 3R enclosure for weather-resistant outdoor service.
Ideal for solar PV applications requiring four-pole, non-fusible DC protection with isolated return and grounded lugs, in outdoor or semi-protected installations.
Eaton provides a warranty per policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first, subject to terms.
The rugged NEMA 3R enclosure, clear isolation, and standardized DC PV wiring practices reduce wiring errors, simplify commissioning, and shorten maintenance windows, lowering total cost of ownership.
