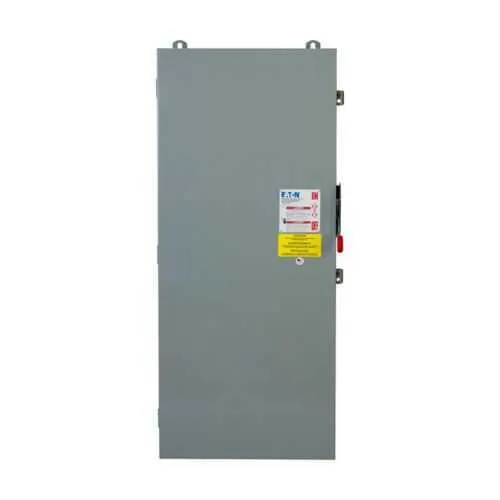

Eaton DCG4065FPM DC Disconnect - UL Listed, NEMA 4
Part Number: DCG4065FPM
Quick Summary
Eaton heavy duty DC disconnect provides safe, code-compliant DC power isolation for solar installations. Engineers often struggle with bulky enclosures, under-rated protections, and complex wiring in large PV projects. UL Listed safety, NEMA 4 weather resistance, and a 600 VDC four-pole design help ensure compliance and long-term reliability in outdoor sites. Painted galvanized steel enclosures, fusible protection, and a 400 A rating translate into easier field installation, fewer field modifications, and reduced downtime. This solution balances rugged performance with installation flexibility, making it suitable for solar arrays, battery charging, and utility-scale PV applications while delivering tangible business value through improved reliability and lower lifecycle costs.
Product Information
Extended Description
DCG4065FPM Eaton: Eaton heavy-duty DC disconnect,400A,Solar,Painted steel,Fusible,Grounded,In/Out(LC): (1) 750 MCM-1/0 and (1) 600 MCM-#2, In/Out(SR): (2) 750 MCM-1/0,600 Vdc,NEMA 4,4,Fusible,Four-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG4065FPM
UPC
786685865768
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
131 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
4
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): (1) 750 kcmil-1/0 and (1) 600 kcmil-#2, In/Out(SR): (2) 750 kcmil-1/0
Number of poles
Four-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty safety Single-throw DC photovoltaic systems
Protection
Fusible
The 400 A four-pole design provides robust fault isolation and high current handling, reducing arc flash risk and simplifying protective coordination for large solar installations. This translates to faster commissioning, fewer reworks, and lower total cost of ownership as system upsets are contained at the source. The NEMA 4 enclosure, crafted from painted galvanized steel, delivers weatherproof protection for outdoor PV sites, improving uptime in rain, dust, and exposure to the elements. Large main lug wire sizes (LC and SR configurations) enable streamlined terminations with 750 kcmil-1/0 and 600 kcmil-#2 conductors, supporting rapid field wiring and future capacity upgrades without hardware changes. The fusible protection and 600 VDC per pole rating align with common solar DC requirements, ensuring compliance and predictable performance across a broad range of PV architectures. Compatibility with 4-pole, DC photovoltaic applications makes integration straightforward, while Eaton’s specification data and UL Listed certification support installation QA and ongoing maintenance in regulated environments.
Get a Quick Quote for a Eaton DCG4065FPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG4065FPM?
Enquire Now
FAQs
Main lug terminations include In/Out LC: one 750 kcmil-1/0 and one 600 kcmil-#2, and In/Out SR: two 750 kcmil-1/0. This enables large conductor terminations suitable for 400 A systems and simplifies field wiring.
Yes. It is rated for 600 VDC per pole, four-pole operation, fusible protection, and is designed for DC photovoltaic applications, making it compatible with common solar PV architectures.
The unit is UL Listed and housed in a NEMA 4 enclosure made of painted galvanized steel, offering weather resistance for outdoor installations and compliant performance in harsh environments.
Dimensions are 12.42 inches (L) by 24.12 inches (W) by 57.47 inches (H), with a weight of 131 pounds, facilitating planning for outdoor mounting and service clearances.
Eaton provides a specification sheet (DCG4065FPM) and product downloads for installation guidance. The unit carries a one-year warranty from installation or 18 months from shipment, whichever comes first, supporting long-term maintenance planning.
