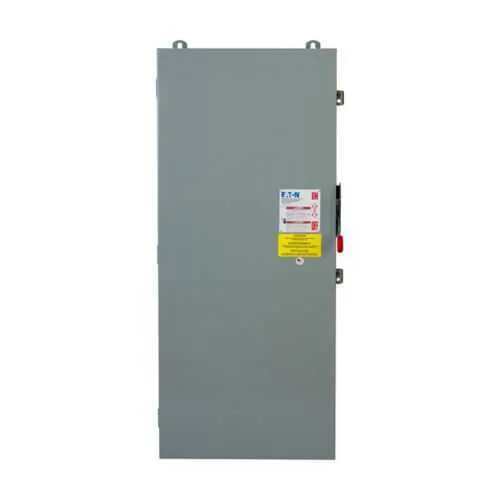

Eaton DCG4065UPM DC Disconnect - UL Listed 600V
Part Number: DCG4065UPM
Quick Summary
Eaton DCG4065UPM heavy duty DC disconnect provides safe, reliable isolation for 600 VDC solar PV systems. Engineers often grapple with outdoor reliability, accessibility, and maintenance—this unit addresses those challenges with a rugged enclosure and clear wiring paths. It carries UL Listed certification and a NEMA 4 enclosure, plus a four-pole, non-fusible design tailored for solar applications. The product supports large conductor terminations and harsh environments, helping facilities stay code-compliant while reducing field service time. By combining durable painted galvanized steel construction with straightforward installation, the DCG4065UPM delivers predictable performance, supports scalable solar deployments, and integrates smoothly with existing electrical protection architectures for improved ROI.
Product Information
Extended Description
DCG4065UPM Eaton: Eaton heavy-duty DC disconnect,400A,Solar,Painted steel,Non-fusible,Grounded,In/Out(LC): (1) 750 MCM-1/0 and (1) 600 MCM-#2, In/Out(SR): (2) 750 MCM-1/0,600 Vdc,NEMA 4,4,Non-fusible,Four-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG4065UPM
UPC
786685865751
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
125 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
4
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): (1) 750 kcmil-1/0 and (1) 600 kcmil-#2, In/Out(SR): (2) 750 kcmil-1/0
Number of poles
Four-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Heavy duty safety Single-throw DC photovoltaic systems
Protection
Non-fusible
Feature → Business Impact → Application: Four-pole, 400 A rating with 600 VDC maximum supports full isolation of solar PV strings and main supply in a single enclosure, reducing switching complexity and improving safety during maintenance. This translates to lower downtime and faster commissioning on 600 VDC systems, especially in multi-string arrays and higher-current configurations. Application: Solar photovoltaic installations and industrial DC protection schemes benefit from a robust, industry-standard disconnect that can handle large conductor sizes without re-termination complexity. Feature → Business Impact → Application: Large main lug wire sizes In/Out LC and In/Out SR accommodate up to 750 MCM conductors, minimizing splices, shortening install time, and reducing connection losses in high-current solar feeders. Application: Heavy-duty solar and battery storage projects where wiring efficiency matters. Feature → Business Impact → Application: NEMA 4 painted galvanized steel enclosure provides reliable outdoor performance against dust, rain, and corrosion, ensuring compliance in harsh plant environments. Application: Outdoor solar yards, rooftops, and outdoor electrical rooms. Feature → Business Impact → Application: Non-fusible protection simplifies maintenance cycles and reduces nuisance tripping in steady-state PV operation, while maintaining safe shutdown capability. Application: Routine maintenance and emergency isolation in solar arrays. Feature → Business Impact → Application: UL Listed certification validates code compliance and reliability, helping projects meet national and local electrical standards, while 600 VDC per pole and four-pole design support robust system protection. Application: Regulatory-compliant solar installations and industrial DC protection. Feature → Business Impact → Application: 125 lb weight and 12.42 in depth facilitate installation planning and mounting flexibility in restricted spaces, enabling easier retrofits and service access. Application: Retrofit projects and modular solar facilities needing reliable, install-friendly DC disconnects.
Get a Quick Quote for a Eaton DCG4065UPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG4065UPM?
Enquire Now
FAQs
The unit supports In/Out LC terminations of (1) 750 kcmil-1/0 and (1) 600 kcmil-#2, and In/Out SR terminations of (2) 750 kcmil-1/0. This accommodates large-diameter conductors typical in utility-scale and commercial solar installations, reducing the need for splices and enabling a clean, single-point disconnect for each string or channel.
Yes. It features a NEMA 4 enclosure and painted galvanized steel construction designed for outdoor environments. UL Listed for electrical protection, it is built to withstand dust, moisture, and incidental impact, making it well-suited for rooftop and ground-mounted solar PV applications in challenging climates.
The DCG4065UPM is UL Listed and rated for 600 VDC per pole with a four-pole configuration. This combination ensures compliance with safety and performance standards for solar PV systems, provides confidence in electrical protection, and supports code adherence during inspections and audits.
Plan for a space that accommodates a 12.42 in depth by 24.12 in width footprint, with a height of 57.47 in and a 125 lb weight. Ensure accessible disconnecting hardware, proper ventilation, and clear labeling. The unit supports large conductors, reducing the need for mid-run splices, which simplifies layout in tight or modular solar installations.
Eaton applies its standard warranty policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This warranty covers manufacturing defects and provides peace of mind for maintenance and field service, while Eaton’s support network offers guidance on installation, inspection, and safe operation.
