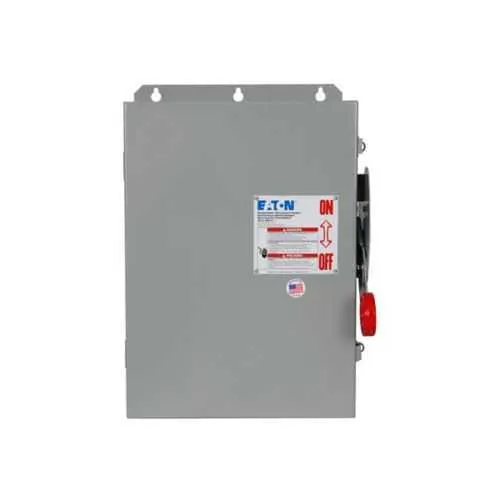

Eaton DCG6061FRM DC Disconnect - NEMA 3R, 600 VDC
Part Number: DCG6061FRM
Quick Summary
Eaton DCG6061FRM DC Disconnect provides a heavy-duty DC disconnecting solution for solar PV protection. Engineers often struggle with safe isolation in outdoor installations, where weather exposure and wiring complexity threaten uptime. The device complies with NEC 690 via UL 1741 and UL 98B, and is housed in a NEMA 3R enclosure to withstand harsh environments. By combining rugged construction with straightforward wiring and field adaptability, it supports compliant isolation while reducing installation time and cost of ownership for solar DC systems.
Product Information
Extended Description
DCG6061FRM Eaton: Eaton heavy-duty DC disconnect,30A,Solar,Painted galvanized steel,Fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 3R,6,Fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6061FRM
UPC
786685557212
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
DC photovoltaic systems Heavy duty safety Single-throw
Protection
Fusible
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DCG6061FRM
Selling Policy 25-000 - Distribution and Control Products and Services
Six-pole configuration enables centralized isolation for multi-string PV arrays, reducing the number of separate disconnects and simplifying service. This consolidation improves installation speed and reduces cabinet footprint in outdoor electrical rooms, supporting solar DC disconnect strategies. Fusible protection safeguards conductors and inverters from DC faults, helping meet code requirements and reduce fire risk in photovoltaic installations. Grounded design and a 600 VDC rating minimize arcing and enhance operator safety during maintenance and testing, which is critical for high-voltage solar projects. The NEMA 3R painted galvanized steel enclosure delivers weather resistance and durable performance in outdoor environments, lowering replacement and maintenance costs over the system life. Flexible wire terminations (LC: #2-#14 AWG; SR: 1/0-#14 AWG) simplify field wiring, shrink install time, and improve configuration options for PV arrays. Field compatibility and the inclusion of dimension details in the product sheets support rapid site planning and repeatable installations.
Get a Quick Quote for a Eaton DCG6061FRM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6061FRM?
Enquire Now
FAQs
For DCG6061FRM, plan for a six-pole disconnect with fusible protection rated up to 30A per pole and a maximum of 600 VDC. Use the In/Out LC terminals for #2-#14 AWG and In/Out SR terminals for 1/0-#14 AWG. Mount in a NEMA 3R enclosure and ensure proper grounding. Include clear labeling and maintain required clearances around the device for safe operation.
Yes. The unit supports six poles with fusible protection and grounded operation for solar DC circuits. It accepts LC connections (#2-#14 AWG) and SR connections (1/0-#14 AWG), enabling flexible wiring layouts. Its 600 VDC rating aligns with common PV array strings, simplifying integration with inverters and combiner boxes while meeting NEC 690 requirements.
This disconnect aligns with NEC 690 through UL 1741 and UL 98B certifications, essential for solar PV protection and electrical safety. It also utilizes a NEMA 3R enclosure for outdoor service, delivering weather resistance. These certifications help ensure compliance, safer operation, and easier procurement within regulated installations.
The six-pole configuration consolidates isolation points, reducing hardware count and installation time, which lowers labor costs. Fusible protection minimizes fault propagation and potential inverter damage, reducing maintenance intervals. The rugged enclosure and grounded design enhance reliability in outdoor environments, delivering lower lifecycle costs and improved system availability.
The NEMA 3R enclosure offers weather-resistant protection, suitable for outdoor solar installations. Combined with grounded DC operation and 600 VDC rating, it reduces arc risk and supports safe maintenance practices. These features assist with code compliance, insurance considerations, and safer operation under real-world environmental conditions.
