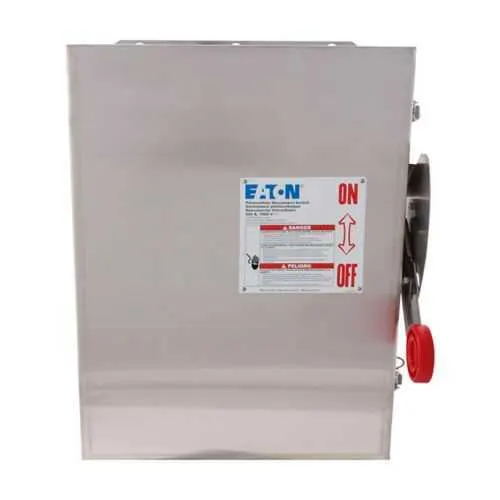

Eaton DCG6061FWM Heavy Duty DC Disconnect - NEMA 4X 600V
Part Number: DCG6061FWM
Quick Summary
The Eaton DCG6061FWM heavy-duty DC disconnect isolates solar DC circuits safely and reliably. Many field installations struggle with outdoor reliability, corrosion, or difficult maintenance in harsh environments. It meets UL 98B and NEC 690 requirements per UL 1741, and features a NEMA 4X enclosure for outdoor resilience. Designed for solar applications with fusible protection and a grounded six-pole configuration, it delivers robust, code-compliant isolation that reduces downtime and simplifies field wiring. This combination supports safer maintenance workflows, easier inspections, and long-term operating cost reductions. The rugged 304 stainless steel enclosure and 600 VDC rating help engineers meet installation specs and procurement goals.
Product Information
Extended Description
DCG6061FWM Eaton: Eaton heavy-duty DC disconnect,30A,Solar,Grade 304 stainless steel,Fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4X,6,Fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6061FWM
UPC
786685557335
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
39 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Fusible
Switch type
DC photovoltaic systems Heavy duty safety Single-throw
Protection
Fusible
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DCG6061FWM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Six-pole, fusible DC disconnect with grounded configuration. Business impact: Enables safe isolation across multiple strings with reduced fault exposure and safer maintenance workflows. Application: Ideal for solar PV arrays and multi-string configurations. The product delivers measurable reliability improvements in outdoor installations. Feature: NEMA 4X enclosure in 304 stainless steel. Business impact: Provides corrosion resistance and weather sealing, lowering corrosion-related downtime and maintenance costs. Application: Outdoor or damp environments common to solar farms. Feature: 600 VDC maximum per pole with 30A rating. Business impact: Supports modern PV arrays while maintaining safe conductor protection and minimizing overheating risk. Application: High-voltage DC PV applications with robust protection. Feature: Wiring flexibility In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG. Business impact: Simplifies field wiring, reduces install time, and improves compatibility with different string outputs. Application: Field installations with diverse conductor sizes. Feature: UL 98B, NEC 690 per UL 1741 certifications. Business impact: Ensures regulatory compliance, facilitates inspections, and mitigates project risk. Application: Solar and industrial DC systems.
Get a Quick Quote for a Eaton DCG6061FWM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6061FWM?
Enquire Now
FAQs
DCG6061FWM is designed for outdoor solar PV installations, featuring a six-pole fusible DC disconnect rated at 30A and up to 600 VDC, protected by a NEMA 4X enclosure. With 304 stainless steel construction and grounding, it withstands weather, corrosion, and field wiring demands, supporting string or combiner configurations and safer maintenance.
Key specs include a 30A amperage rating, six circuits, 600 VDC maximum per pole, grounded operation, and fusible protection. It supports In/Out LC wiring #2–#14 AWG and SR wiring 1/0–#14 AWG, enabling flexible field wiring. The enclosure is NEMA 4X and housing uses 304 stainless steel to resist corrosion.
Yes. The unit is certified under UL 98B and complies with NEC 690 per UL 1741 standards, ensuring safe operation in solar PV installations. It is designed as a grounded, fusible six-pole DC disconnect with a 600 VDC rating and NEMA 4X enclosure. These certifications support compliance during inspections and reduce project risk.
Yes. The device is a six-pole system rated for 600 VDC per pole, suitable for solar PV strings and DC bus arrangements. Rated 30A, it provides safe isolation without overloading conductors, while the grounded configuration improves fault clearing. Field wiring options include LC terminals for #2–#14 AWG and SR terminals for 1/0–#14 AWG, aiding installation.
The 304 stainless steel enclosure rated NEMA 4X offers corrosion resistance and weather sealing for outdoor use, extending service life in harsh environments. This reduces maintenance cycles and protects internal fusible links from moisture ingress. Coupled with 600 VDC operation and UL/NEC compliance, it simplifies field commissioning and ongoing safety audits.
