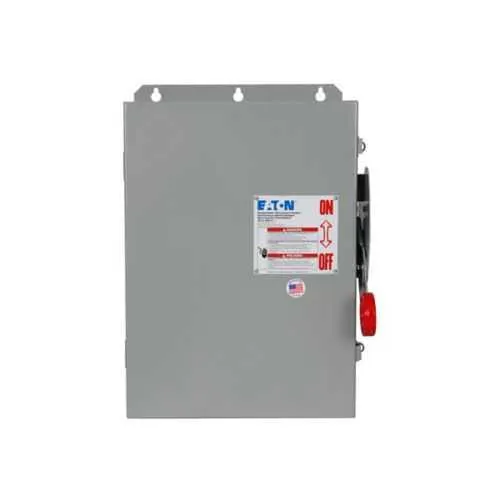

Eaton DCG6061UPM DC disconnect - 600 VDC, NEMA 4
Part Number: DCG6061UPM
Quick Summary
Eaton DCG6061UPM DC disconnect provides safe, reliable power isolation for solar PV systems. Engineers rely on robust isolation to protect personnel and equipment during commissioning and maintenance. This unit meets UL 98B, NEC 690 per UL 1741, and ships in a NEMA 4 enclosure, ready for outdoor service. The grounded design and six independent poles simplify wiring and enhance fault management, while minimizing downtime. Designed for heavy-duty DC PV applications, it supports solid compatibility with common PV configurations and integrates cost-efficiently into existing control schemes.
Product Information
Extended Description
DCG6061UPM Eaton: Eaton heavy-duty DC disconnect,30A,Solar,Painted steel,Non-fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4,6,Non-fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6061UPM
UPC
786685557243
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Single-throw Heavy duty safety DC photovoltaic systems
Protection
Non-fusible
Feature → Business Impact → Application: 30A, six-pole, non-fusible DC disconnect delivers safe isolation for multi-string PV configurations, reducing fault energy exposure during maintenance and streamlining switchgear layouts for modular arrays in commercial solar projects. Application: Solar PV installations, battery charging and other DC power systems where non-fusible protection is required. Feature → Business Impact → Application: Grounded system and wiring support improve technician safety and EMI control, helping maintain system integrity during switching operations. Application: Grounded DC circuits in exposed environments. Feature → Business Impact → Application: 600 VDC rating with LC and SR terminal options (LC: #2-#14 AWG, SR: 1/0-#14 AWG) enables flexible string and optimised conductor routing. Application: PV string terminations and mixed wiring schemes. Feature → Business Impact → Application: NEMA 4 painted galvanized steel enclosure delivers outdoor durability and corrosion resistance, reducing enclosure maintenance and extending service life. Application: Outdoor solar installations under variable weather. Feature → Business Impact → Application: UL 98B and NEC 690 per UL 1741 compliance support code adherence and safer grid interconnections. Application: Regulatory compliance for PV projects. Feature → Business Impact → Application: Six-pole configuration and clear labeling simplify installation, commissioning, and future expansion. Application: Scalable PV system integration and easy upgrades.
Get a Quick Quote for a Eaton DCG6061UPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6061UPM?
Enquire Now
FAQs
The DCG6061UPM should be mounted in a suitable, code-compliant enclosure with a NEMA 4 rating for outdoor use. Connect mains or PV strings using LC terminals (#2-#14 AWG) or SR terminals (1/0-#14 AWG) per the product documentation. Ensure proper grounding, verify a 600 VDC rating, and confirm six-pole wiring is correctly arranged to match your array layout. Follow UL 98B and NEC 690 guidelines during commissioning for safety and compliance.
The 30A amperage rating indicates safe continuous current for each path in the six-pole unit, while a 600 VDC maximum voltage rating defines insulation and component limits. Non-fusible protection means the device does not interrupt fault currents, so protective coordination with fuses or breakers in the PV system is required. Grounded configuration reduces shock risk and improves fault clearing behavior in arrays.
Yes, the unit is designed for outdoor use, featuring a NEMA 4 enclosure that provides protection against dust, water ingress, and corrosion. The painted galvanized steel construction adds durability in exposed environments. This makes it well-suited for rooftop or ground-mounted solar installations where weather exposure is a factor.
The DCG6061UPM complies with UL 98B and NEC 690 per UL 1741 standards, ensuring safe operation in PV applications. This alignment helps with utility interconnection and code compliance in commercial solar projects, reducing risk during inspections and enabling smoother project approvals.
Eaton provides a warranty per policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. Routine maintenance centers on verifying terminations remain tight and inspecting the painted steel enclosure for corrosion. Given its robust enclosure and non-fusible design, expect extended service life with periodic inspection in harsh environments.
