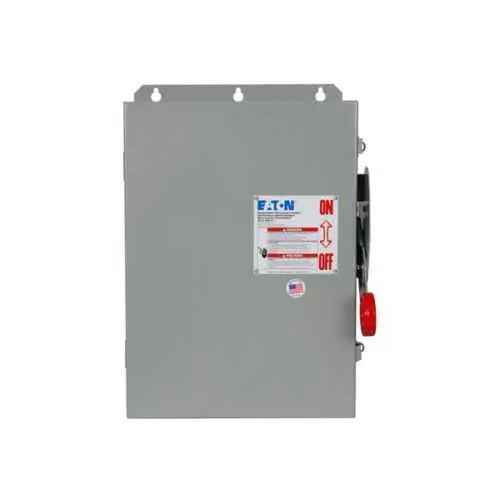

Eaton DCG6061URM DC Disconnect - 600VDC, NEMA 3R
Part Number: DCG6061URM
Quick Summary
DCG6061URM is a heavy-duty Eaton DC disconnect for solar PV systems. Engineers often struggle with safe, code-compliant DC disconnection in outdoor enclosures. This unit meets UL 98B, NEC 690 per UL 1741, and carries a NEMA 3R enclosure rating. Designed for DC photovoltaic applications, its grounded, six-pole configuration reduces wiring errors and maintenance downtime. With compatibility for LC and SR terminations (#2-#14 AWG and 1/0-#14 AWG), it supports scalable solar installations and faster field deployment.
Product Information
Extended Description
DCG6061URM Eaton: Eaton heavy-duty DC disconnect,30A,Solar,Painted galvanized steel,Non-fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 3R,6,Non-fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6061URM
UPC
786685557182
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
30 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Single-throw Heavy duty safety DC photovoltaic systems
Protection
Non-fusible
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DCG6061URM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Six-pole, 30A, 600 VDC non-fusible disconnect. Business Impact: Provides robust, reliable control across multiple strings, reducing the risk of unintended disconnections and costly downtime. Application: Solar PV arrays and other DC circuits requiring a safe open/close mechanism. Feature: NEMA 3R, painted galvanized steel enclosure. Business Impact: Delivers outdoor protection against rain, dust, and corrosion, extending service life in rooftop and ground-mount installations. Application: Outdoor solar enclosures and weather-exposed equipment. Feature: Grounded, non-fusible design. Business Impact: Minimizes arc flash potential and simplifies maintenance through straightforward disconnection. Application: Utility-scale and commercial PV projects. Feature: LC and SR termination options (#2-#14 AWG; 1/0-#14 AWG). Business Impact: Enables flexible, fast field wiring and reduces harness fabrication time. Application: Retrofit and new-build solar projects. Feature: Compliance and certifications (UL 98B; NEC 690 per UL 1741). Business Impact: Ensures code-aligned protection, easing procurement and installation audits. Application: Regulatory-driven deployments with strict code requirements. Feature: Dimensions and weight (10.22 in L, 12.88 in W, 19.08 in H; 30 lb). Business Impact: Predictable footprint simplifies rack and enclosure planning. Application: System integration and space-constrained installations. Warranty: 1 year from installation or 18 months from shipment, whichever occurs first. Business Impact: Clear coverage terms support risk management and service planning. Application: Post-sale support and maintenance planning.
Get a Quick Quote for a Eaton DCG6061URM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6061URM?
Enquire Now
FAQs
DCG6061URM provides six-pole disconnection with In/Out LC terminals for #2-#14 AWG and In/Out SR terminals for 1/0-#14 AWG. It is a grounded, non-fusible disconnect rated to 600 VDC, making it suitable for outdoor solar arrays. The NEMA 3R enclosure supports outdoor mounting and straightforward wiring harnesses.
The 600 VDC rating per pole sets the maximum operating voltage in line with NEC 690 requirements for PV systems. The non-fusible design provides reliable disconnection while the grounded configuration reduces arc flash risk. UL 98B recognition further supports enclosure safety, enabling code-compliant outdoor installations across typical solar applications.
Yes. The unit’s NEMA 3R enclosure, painted galvanized steel construction, and 600 VDC rating are designed for outdoor PV installations. The 30A, six-pole arrangement supports modular string interconnections, while the grounded, non-fusible design simplifies maintenance and ensures safe disconnection under varied weather conditions.
This DC disconnect carries UL 98B enclosure certification and NEC 690 compliance as reflected by UL 1741, along with a NEMA 3R enclosure rating. These certifications verify safety, reliability, and compatibility with solar code requirements, making it suitable for outdoor PV deployment in both retrofit and new-build projects.
Eaton offers a one-year warranty from the date of installation or eighteen months from shipment, whichever occurs first. Regular inspections of enclosure seals, grounding connections, and terminations help sustain performance. The warranty, combined with Eaton support resources, can reduce downtime and extend the service life of solar protection equipment.
