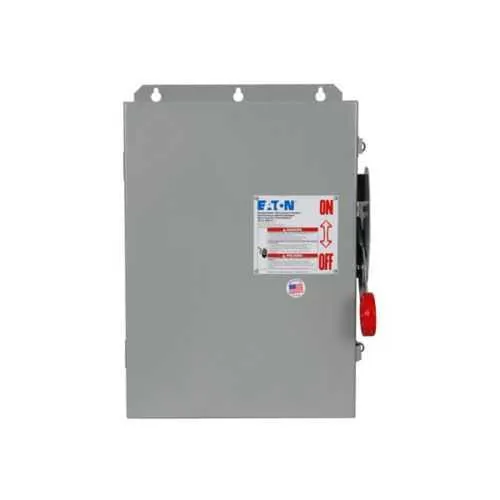

Eaton DCG6062FPM DC Disconnect - Fusible 600V NEMA4
Part Number: DCG6062FPM
Quick Summary
The Eaton DCG6062FPM heavy-duty DC disconnect is designed to safely isolate 600 Vdc solar PV strings with six poles and fusible protection. Engineers often encounter awkward layouts, inconsistent wiring, and maintenance bottlenecks that slow projects and raise risk. This unit carries UL 98B and NEC 690 per UL 1741 certifications, along with a NEMA 4 weather-rated enclosure, providing robust outdoor performance. By featuring a grounded, painted galvanized steel housing and clearly rated terminations, it delivers installation efficiency, ongoing compliance, and lower lifecycle costs for industrial electrical protection in solar applications.
Product Information
Extended Description
DCG6062FPM Eaton: Eaton heavy-duty DC disconnect,60A,Solar,Painted steel,Fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4,6,Fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6062FPM
UPC
786685557281
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
39 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty safety Single-throw DC photovoltaic systems
Protection
Fusible
Feature: Six-pole, 60 A fusible DC disconnect. Business Impact: Consolidates multiple disconnects into a single, safer isolation point, reducing installation footprint and field labor while improving protection for PV strings. Application: Suitable for commercial and industrial solar installations requiring reliable DC isolation. Feature: NEMA 4 enclosure in painted galvanized steel. Business Impact: Weather-resistant housing minimizes corrosion and downtime in outdoor or harsh environments, ensuring reliable operation and extended service life. Application: Outdoor PV arrays and harsh-duty DC control centers. Feature: In/Out wiring options LC #2-#14 AWG and SR 1/0-#14 AWG. Business Impact: Flexible terminations simplify wiring diagrams and speed up commissioning, lowering wiring errors and inspection time. Application: Quick retrofit into existing DC systems with varied conductor sizes. Feature: UL 98B and NEC 690 per UL 1741 certifications. Business Impact: Supports code-compliant design and safer maintenance practices, reducing risk during servicing. Application: Projects targeting NEC compliance and utility-grade safety. Feature: Grounded configuration and six-pole arrangement. Business Impact: Improves fault path clarity and system safety, enabling straightforward fault isolation and rapid containment. Application: PV system protection schemes with reliable grounding.
Get a Quick Quote for a Eaton DCG6062FPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6062FPM?
Enquire Now
FAQs
Yes. The device is rated for 600 VDC and supports main lug connections with LC wiring #2–#14 AWG and SR wiring 1/0–#14 AWG. This configuration accommodates a wide range of PV string terminations while maintaining safe, code-compliant isolation in a six-pole assembly.
The DCG6062FPM is a six-pole, fusible DC disconnect rated for 60 A per pole, delivering six circuits in a single enclosure. It provides both LC and SR termination options to optimize field wiring and simplify the wiring diagram for PV control centers.
Yes. It features a NEMA 4 enclosure made from painted galvanized steel, designed to withstand outdoor and adverse environments. This protects internal components from dust, water ingress, and corrosion, enabling reliable operation in rooftop and ground-mounted PV installations.
The DCG6062FPM carries UL 98B and NEC 690 per UL 1741 certifications. These approvals validate safe switching of DC circuits, proper isolation under fault conditions, and compliance with essential solar industry electrical standards for system integration.
By consolidating six separate disconnects into one fusible, grounded assembly, the unit reduces field wiring complexity and service time, improving safety during maintenance and decreasing downtime. Its rugged enclosure and code compliance also lower long-term maintenance costs and boost system reliability in retrofits or new builds.
