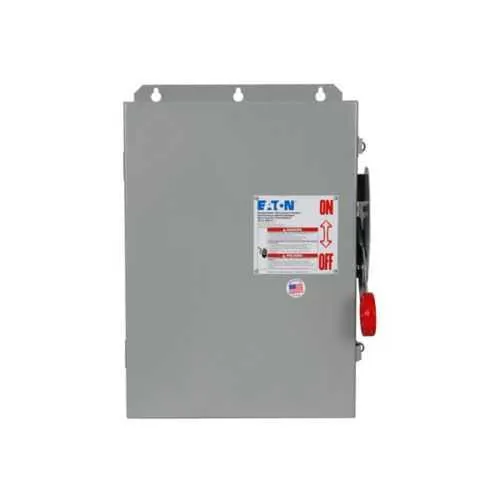

Eaton DCG6062FRM Heavy-Duty DC Disconnect - NEMA 3R
Part Number: DCG6062FRM
Quick Summary
Eaton heavy-duty DC disconnect provides safe isolation for solar PV DC power systems. It minimizes arc flash exposure during maintenance and test procedures while simplifying code compliance for installers. Maintenance and testing can expose technicians to arc flash risk and regulatory challenges. This enclosure is rated for outdoor service with a NEMA 3R rating and corrosion-resistant painted galvanized steel, delivering reliable performance in harsh environments. It meets NEC 690 per UL 1741 and UL 98B, with a NEMA 3R enclosure for exterior ruggedness. Designed for DC photovoltaic applications, its six-pole, fusible design simplifies wiring, reduces downtime, and supports scalable system expansion for developers and manufacturers.
Product Information
Extended Description
DCG6062FRM Eaton: Eaton heavy-duty DC disconnect,60A,Solar,Painted galvanized steel,Fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 3R,6,Fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6062FRM
UPC
786685557229
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Fusible
Six-pole, fusible DC disconnect enables centralized isolation across multi-string PV arrays, reducing wiring complexity and improving fault isolation for service technicians in the field. This translates to shorter maintenance windows and lower risk during shut-down procedures, especially in rooftop and ground-mount installations. In solar projects, clear, contained switching improves commissioning speed and regulatory traceability, aligning with NEC 690 requirements. The 60 A amperage rating supports modular configurations, reducing the need for additional protection devices and enabling faster system scaling on growing PV deployments. The painted galvanized steel enclosure provides outdoor durability, delivering weather resistance and long service life in exposed environments. Grounded operation with defined conductor terminals (LC and SR) simplifies wiring practices, improves safety, and supports compliant installation in busy electrical rooms.
Get a Quick Quote for a Eaton DCG6062FRM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6062FRM?
Enquire Now
FAQs
For outdoor installations, the DCG6062FRM uses a NEMA 3R painted galvanized steel enclosure, rated for exterior service. It supports six-pole, fusible operation with In/Out LC wiring (#2-#14 AWG) and In/Out SR wiring (1/0-#14 AWG). Plan a secure mount, proper weather sealing, and accessible wiring routes to simplify maintenance and ensure NEC 690 compliance during commissioning.
The six-pole configuration provides centralized isolation across multiple DC strings, improving fault management and reducing the number of separate disconnects required. The fusible protection streamlines protection schemes, enabling simpler fault tracing and safer maintenance procedures with predictable thermal behavior, which helps drive uptime in solar installations.
Yes. The DCG6062FRM is designed for DC photovoltaic applications with a 600 VDC rating and six poles, making it suitable for grid-tied and standalone PV deployments. Its NEMA 3R enclosure supports outdoor use, while its grounded, fusible design helps meet common utility and code requirements. This flexibility makes it a robust choice for various project scales.
This unit adheres to NEC 690 requirements as referenced by UL 1741, and UL 98B for enclosure protection. It also features a NEMA 3R rating for outdoor durability. These certifications help ensure code compliance, safety, and reliability in harsh environments, reducing the risk of non-compliance during inspections and audits.
The device reduces downtime by offering a single, centralized disconnect for multiple DC strings, which speeds maintenance and commissioning. Its rugged enclosure and rated components minimize weather-related failures, lowering repair costs. Over a project lifetime, this can translate to increased system availability, lower labor costs, and a faster path to return on investment for solar developers.
