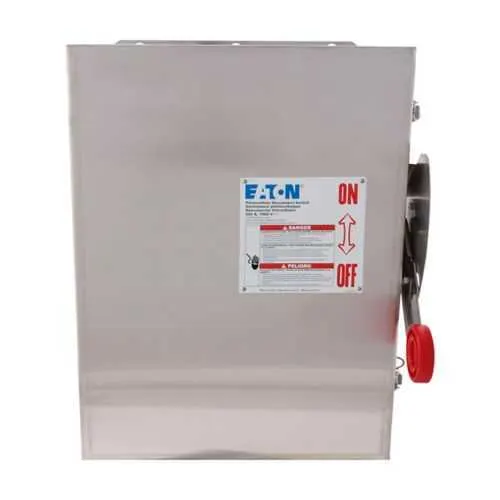

Eaton DCG6062FXM DC Disconnect - NEMA 4X Fusible
Part Number: DCG6062FXM
Quick Summary
Eaton heavy duty DC disconnect protects solar DC circuits by providing rapid, safe isolation. Engineers often wrestle with wiring complexity, space constraints, and the need for code-compliant, weatherproof enclosures. This product carries NEC 690 per UL 1741 and UL 98B certifications and a NEMA 4X, 316 stainless steel enclosure for harsh environments. Designed for solar installations, the DCG6062FXM delivers reliable six-pole switching and grounded protection, balancing safety with installation efficiency. By combining corrosion-resistant 316 stainless steel, fused protection, and a NEMA 4X enclosure, it minimizes maintenance while supporting scalable PV projects.
Product Information
Extended Description
DCG6062FXM Eaton: Eaton heavy-duty DC disconnect,60A,Solar,Grade 316 stainless steel,Fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4X,6,Fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6062FXM
UPC
786685557403
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
39 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Fusible
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Fusible
Feature: Six-pole configuration provides 60 A per pole with a 600 VDC rating and fusible protection. Business Impact: Enables high-current DC switching for multiple PV strings with fast, reliable isolation, reducing fault exposure and downtime. Application: Ideal for multi-string solar arrays in outdoor or industrial installations. Feature: NEMA 4X enclosure in 316 stainless steel. Business Impact: Delivers superior corrosion resistance and weatherproof performance, lowering maintenance costs and extending service life in harsh environments. Application: Outdoor rooftops, ground-mounts, and open-air electrical rooms. Feature: Grounded system with clearly defined In/Out terminations (LC: #2-#14 AWG; SR: 1/0-#14 AWG). Business Impact: Simplifies wiring, improves fault current paths, and supports faster commissioning with fewer field errors. Application: Solar PV DC distribution panels and switchgear housings. Feature: Fusible protection and six-pole design. Business Impact: Provides selective coordination and safe shutoff for modular PV configurations, improving safety margins and regulatory compliance. Application: Utility-grade solar installations and battery-backed PV systems. Feature: 600 VDC maximum voltage rating and 316 stainless steel enclosure. Business Impact: Enables broad system compatibility while resisting weathering and corrosion, reducing replacement cycles. Application: High-availability solar plants and harsh climate sites.
Get a Quick Quote for a Eaton DCG6062FXM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6062FXM?
Enquire Now
FAQs
The DCG6062FXM is designed for solar photovoltaic installations requiring a six-pole DC disconnect with fusible protection, rated up to 600 VDC. It suits outdoor or harsh indoor environments, where a grounded, NEMA 4X enclosure and 316 stainless steel construction deliver long-term reliability across multiple PV strings.
The LC terminations accept #2-#14 AWG conductors, while the SR terminations accommodate 1/0-#14 AWG. This supports flexible, field-friendly wiring for varied PV string layouts and cabinet depths.
It features a NEMA 4X enclosure made from 316 stainless steel, delivering excellent corrosion resistance and weatherproof performance suitable for outdoor solar sites and exposed indoor installations.
The product is certified for NEC 690 per UL 1741 and UL 98B, aligning with industry safety standards for solar DC systems and providing code-compliant protection in PV installations.
Take advantage of the fusible protection and grounded design for selective coordination and rapid fault isolation. The 316 stainless steel NEMA 4X enclosure minimizes maintenance in harsh environments, while the six-pole configuration supports scalable PV layouts and reduces site wiring complexity.
