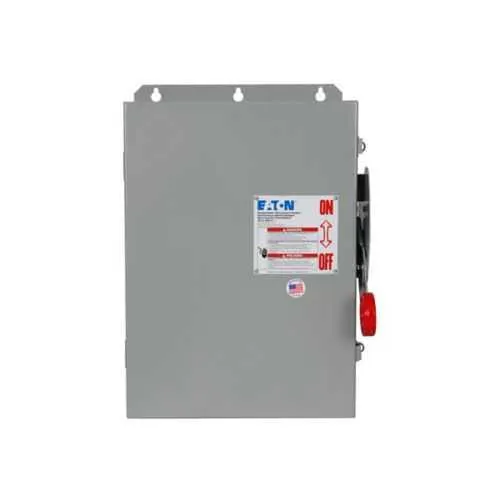

Eaton DCG6062UPM DC Disconnect - 600 VDC, NEMA 4
Part Number: DCG6062UPM
Quick Summary
Eaton DCG6062UPM DC disconnect is a heavy-duty switch for solar PV installations. In outdoor arrays, safe shutdown and reliable protection are constant challenges for engineers and technicians. This unit delivers NEC 690 safety requirements per UL 1741 and UL 98B weather-rated performance in a NEMA 4 painted galvanized enclosure. Its six-pole, grounded design supports clean, safe interconnections while remaining non-fusible for straightforward maintenance. The device accepts In/Out LC wiring #2-#14 AWG and In/Out SR wiring 1/0-#14 AWG, offering installation flexibility across various array configurations. By combining rugged protection with Eaton warranty coverage, it minimizes downtime, reduces service costs, and supports scalable DC PV protection for commercial and industrial projects.
Product Information
Extended Description
DCG6062UPM Eaton: Eaton heavy-duty DC disconnect,60A,Solar,Painted steel,Non-fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4,6,Non-fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6062UPM
UPC
786685557250
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
30 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
DC photovoltaic systems Heavy duty safety Single-throw
Protection
Non-fusible
Feature: Six-pole, grounded DC disconnect with non-fusible protection. Business Impact: Provides reliable isolation and straightforward maintenance, reducing fault propagation and downtime. Application: Ideal for centralized or string-level PV protection in commercial solar installations. Feature: 60 A amperage rating with 600 VDC maximum. Business Impact: Supports typical commercial PV strings while maintaining a robust safety margin, lowering overcurrent risk and improving system uptime. Application: Grid-tied and off-grid solar projects requiring dependable DC switching. Feature: NEMA 4 enclosure with painted galvanized steel. Business Impact: Delivers weather resistance and rugged outdoor performance, minimizing corrosion concerns and service interventions. Application: Rooftop and ground-mounted solar arrays exposed to the elements. Feature: In/Out wiring options LC and SR (AWG #2-#14 and 1/0-#14). Business Impact: Flexible terminations accommodate a wide range of PV wiring schemes, simplifying installation and future reconfigurations. Application: Retrofit-compatible protection for evolving solar layouts. Feature: Certifications and standards compliance NEC 690 per UL 1741 and UL 98B. Business Impact: Ensures regulatory alignment and safer electrical practice, reducing risk during inspections and commissioning. Application: Utility-scale and industrial PV deployments demanding code-conformant DC disconnection. Feature: Warranty and service terms (one year from installation or 18 months from shipment). Business Impact: Reduces lifecycle risk and supports procurement confidence across multi-site rollouts. Application: All project phases from initial buy to long-term maintenance planning.
