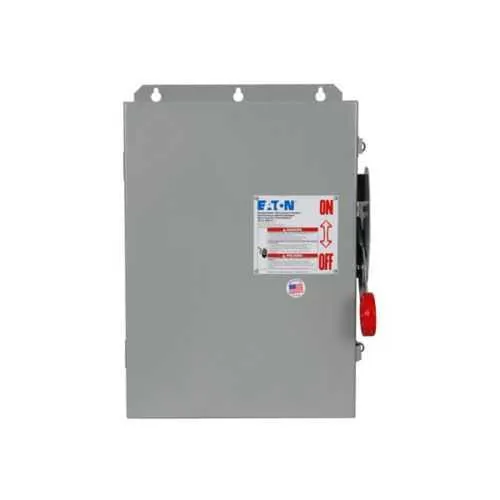

Eaton DCG6062URM DC disconnect - NEMA 3R 600VDC
Part Number: DCG6062URM
Quick Summary
Eaton DCG6062URM DC disconnect provides heavy-duty DC isolation for solar photovoltaic systems. It addresses the common challenges of outdoor DC switching, limited space, and fragmented protection across PV strings. The unit meets NEC 690 per UL 1741 and UL 98B, and it features a weather-resistant NEMA 3R enclosure. With six poles and a 60 A rating, it simplifies wiring while delivering reliable, modular protection for multiple circuits. Designed for solar applications, its grounded, non-fusible protection delivers safer operation and supports cost-effective installation in industrial facilities and commercial rooftops.
Product Information
Extended Description
DCG6062URM Eaton: Eaton heavy-duty DC disconnect,60A,Solar,Painted galvanized steel,Non-fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 3R,6,Non-fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6062URM
UPC
786685557199
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Non-fusible
Six-pole configuration provides centralized DC isolation across multiple strings, reducing wiring complexity and speeding up installation while simplifying maintenance in PV installations. The business impact is lower labor costs, faster commissioning, and easier fault isolation for rooftop and carport solar projects. This configuration is ideal for solar PV arrays and utility-scale sites requiring scalable, modular protection. The 60 A rating with 600 VDC maximum voltage ensures compatibility with common PV conductors, delivering predictable overcurrent protection and safer switching. This reduces arc flash risk, improves system uptime, and supports compliant interconnection for commercial solar deployments. The NEMA 3R enclosure in painted galvanized steel delivers outdoor durability, minimizing weather-related maintenance and extending service life for rooftop and ground-mounted PV installations. Flexible wiring options LC (#2-#14 AWG) and SR (1/0-#14 AWG) simplify terminations and support seamless integration with existing PV feeders. Non-fusible protection and grounding enhance safety, reduce spare parts, and align with NEC 690 requirements per UL 1741 and UL 98B. Catalog notes indicate multiple configurations are available in dimension tables, helping engineers select the right setup for specific project needs. Overall, the DCG6062URM offers robust, code-compliant DC isolation with reliable performance in solar electrical protection and circuit control workflows.
Get a Quick Quote for a Eaton DCG6062URM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6062URM?
Enquire Now
FAQs
Begin by verifying the six-pole enclosure specs and mounting surface suitability for outdoor exposure. Mount the unit on a stable structure, route conductors to In/Out LC (#2-#14 AWG) or SR (1/0-#14 AWG) terminals, and establish a solid ground connection. Ensure 600 VDC maximum rating compliance and secure protective covers. Commission with proper torque and verify isolation with a voltage tester before and after wiring. Adhere to NEC 690 and UL 1741/UL 98B requirements during all steps to maintain regulatory compliance.
The device is a six-pole, non-fusible DC disconnect rated for 60 A, with a maximum voltage of 600 VDC per pole. It employs grounded, non-fusible protection designed for solar applications. In/Out terminations are LC for #2-#14 AWG and SR for 1/0-#14 AWG, enabling flexible wiring. The enclosure is NEMA 3R with painted galvanized steel, suitable for outdoor PV installations and compliant with NEC 690 per UL 1741 and UL 98B.
Yes. The NEMA 3R enclosure and painted galvanized steel construction are specifically designed for outdoor environments, delivering weather resistance for rooftop and ground-mounted PV installations. The 60 A, 600 VDC rating aligns with common solar circuit requirements, while its grounded, non-fusible design simplifies maintenance and reduces downtime. Ensure installation follows NEC 690 standards and UL 1741/UL 98B certification guidelines for outdoor PV protection.
DCG6062URM complies with NEC 690 for photovoltaic systems as defined under UL 1741, and UL 98B for enclosure protection. It is designed for outdoor use with a NEMA 3R enclosure. These certifications support safe interconnection, reduced risk of arc faults, and compliance during commissioning and utility approvals. Always reference the Eaton specification sheet for the most current certification statements and installation guidelines.
Maintenance is typically low due to a robust, non-fusible design and a weather-resistant NEMA 3R enclosure, minimizing enclosure-related downtime. The 60 A rating and six-pole configuration enable scalable PV protection with fewer components, reducing spare parts and labor costs. The integrated grounding and straightforward wiring options also shorten commissioning time, contributing to a faster return on investment in solar projects.
