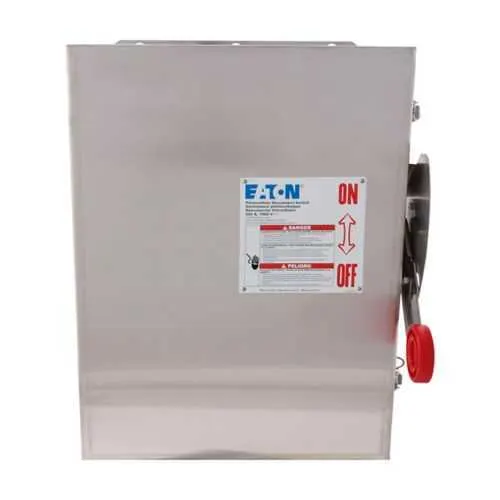

Eaton DCG6062UWM DC Disconnect NEMA 4X 600VDC
Part Number: DCG6062UWM
Quick Summary
Eaton DCG6062UWM DC disconnect provides reliable DC isolation for solar PV systems. In outdoor installations, limited space, corrosion risk, and complex wiring often complicate safety and maintenance. This heavy-duty, six-pole, non-fusible disconnect meets NEC 690 requirements per UL 1741 and UL 98B, with a NEMA 4X enclosure in 304 stainless steel for weather resistance. The combination of robust construction and clear wiring configurations helps simplify compliance, field assembly, and ongoing service, delivering long-term value for solar developers and reliability-focused facilities. By aligning with common PV system practices and using standard wiring ranges, this solution supports fast integration, lower lifecycle costs, and improved uptime for critical energy systems.
Product Information
Extended Description
DCG6062UWM Eaton: Eaton heavy-duty DC disconnect,60A,Solar,Grade 304 stainless steel,Non-fusible,Grounded,In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG,600 Vdc,NEMA 4X,6,Non-fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6062UWM
UPC
786685557311
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
37 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): #2-#14 AWG, In/Out(SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Non-fusible
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Non-fusible
Feature → Business Impact → Application: The DCG6062UWM is a six-pole, non-fusible DC disconnect rated for 60 A and 600 VDC, delivering a clear, code-compliant isolation point that reduces fault propagation and simplifies maintenance in solar installations. This translates to safer commissioning, faster troubleshooting, and lower risk of arc-flash events in outdoor PV arrays. Application: suitable for medium-scale PV projects where reliable DC isolation is mandatory. Feature → Business Impact → Application: The enclosure is NEMA 4X and constructed from 304 stainless steel, enabling dependable protection against corrosion and weathering in harsh environments. This improves uptime, lowers enclosure replacement costs, and supports long service life in rooftop and ground-mounted installations. Application: outdoor PV systems requiring durable, compliant enclosures. Feature → Business Impact → Application: Main lug capacity In/Out(LC): #2-#14 AWG and In/Out(SR): 1/0-#14 AWG ensures broad wire compatibility and straightforward field wiring, reducing labor and potential mis-wiring during installation. Application: PV combiner boxes and safety disconnect points with mixed conductor sizes. Feature → Business Impact → Application: NEC 690 per UL 1741 UL 98B certifications provide regulatory alignment and third-party validation, facilitating permit approvals and project timelines. Application: projects governed by strict solar electrical standards. Feature → Business Impact → Application: Six-pole design and grounded configuration offer reliable isolation for multi-string solar layouts, enabling scalable expansion and easier fault isolation across multiple DC circuits. Application: modular PV arrays with multiple DC strings. Feature → Business Impact → Application: Grounded system and heavy-duty construction support durable field performance, reducing replacement cycles and maintenance costs while improving overall system reliability. Application: industrial and commercial solar installations with demanding duty cycles.
Get a Quick Quote for a Eaton DCG6062UWM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6062UWM?
Enquire Now
FAQs
DCG6062UWM is engineered as a six-pole, non-fusible DC disconnect rated at 60 A and 600 VDC, designed for solar PV systems. It supports In/Out wiring with LC terminals (#2-#14 AWG) and SR terminals (1/0-#14 AWG), fits inside a NEMA 4X stainless enclosure, and provides a safe, code-compliant isolation point for string combiner boxes and outdoor arrays.
Key specs include six poles, 60 A amperage rating, 600 VDC maximum voltage, non-fusible protection, grounded system, and NEMA 4X enclosure. It is intended for solar PV applications with rated system voltage per pole at 600 VDC and compatible with #2-#14 AWG (LC) and 1/0-#14 AWG (SR) conductors.
Yes. The enclosure is NEMA 4X rated and constructed from 304 stainless steel, providing excellent corrosion resistance and weatherproofing for outdoor and semi-outdoor solar installations, reducing maintenance cycles and protecting critical DC switching components from the elements.
The unit complies with NEC 690 as referenced by UL 1741 and UL 98B, ensuring solar-specific safety and reliability. This certification support aids in regulatory approvals, project documentation, and consistent interpretation of safety requirements across jurisdictions.
Eaton provides a one-year warranty from installation or eighteen months from shipment, whichever comes first. This coverage supports ongoing maintenance planning, reduces long-term ownership risk, and aligns with typical industry practices for heavy-duty electrical protection equipment.
